Electric heater for the coupling head of a central buffer coupling
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 2, 2006
Issued Date -
N/A
app pub date -
Sep 12, 2002
filing date -
Sep 12, 2001
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

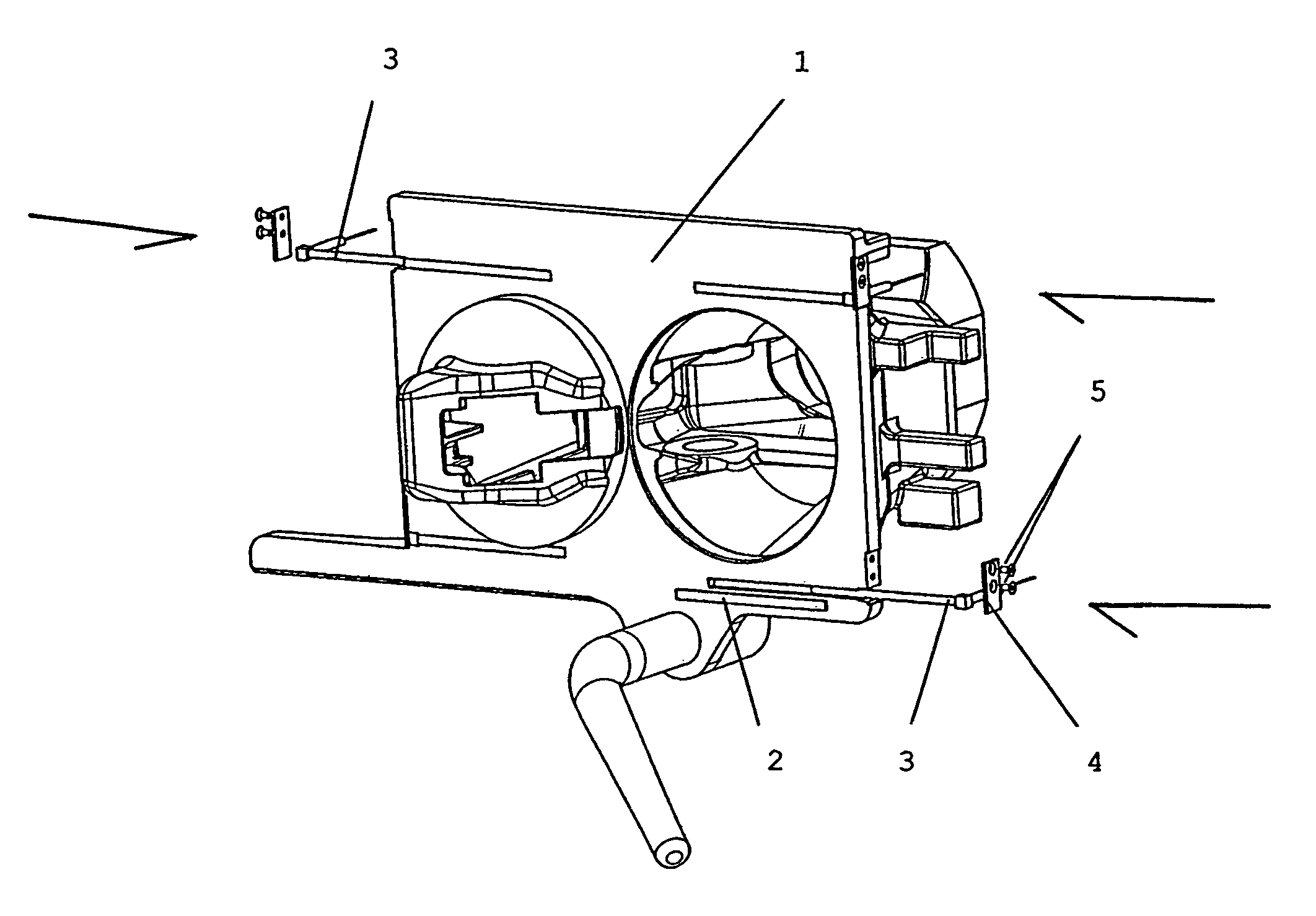

The invention relates to a heater for an electric central buffer coupling in which at least one heating element (3) is placed in a recess of the coupling head (1) and is covered toward the outside. To improve the transfer of heat from the heating element (3) into the coupling head (1) and to reduce the expense of assembling and dismantling the heating element (3), the recess is precision fitted to the diameter of the heating element (3) and the recess is constructed in such a way that after completion of the recess the heating element (3), including its seal to the front side, can be introduced into the recess and is to be removably affixed to the coupling head (1).
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H05B Class
- 3.29 % this patent is cited more than
- 19 Age
