Multi-stage intensifiers adapted for pressurized fluid injectors
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 25, 2006
Grant Date -
Sep 30, 2004
app pub date -
Feb 19, 2004
filing date -
Mar 24, 2003
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

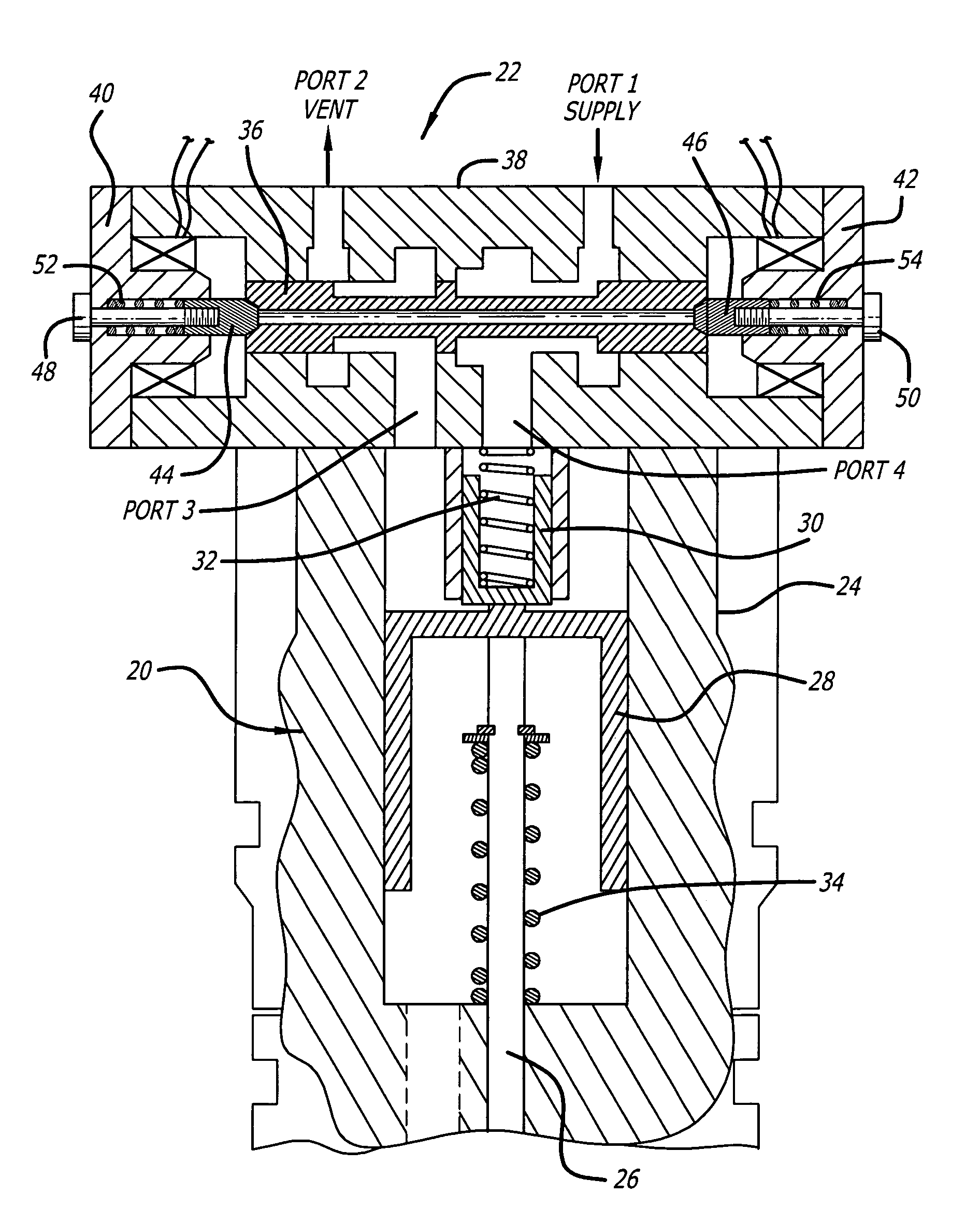

Multi-stage intensifiers for injectors of pressurized fluid (e.g., fuel) allowing selection of intensified injection fluid pressure and thus fluid injection flow rate by selectively applying actuating fluid supply pressure to one or more of the multi-stage intensifiers. In a disclosed embodiment, two coaxial unequal sized intensifier pistons are used, with a control valve controlling selective pressurization of either the relatively smaller intensifier piston, or pressurization of both the relatively smaller intensifier piston and the relatively larger intensifier piston to control the intensified injection fluid pressure and flow rate of injection. Other embodiments, including ones using multi-stage intensifiers mechanically coupled together, controlled by different types of control valves and having more than two stages are also disclosed.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 18 Citation Count
- F02M Class
- 51.42 % this patent is cited more than
- 19 Age
