Device for displaying the day of the month
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 18, 2006
Grant Date -
Oct 16, 2003
app pub date -
Apr 7, 2003
filing date -
Apr 15, 2002
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

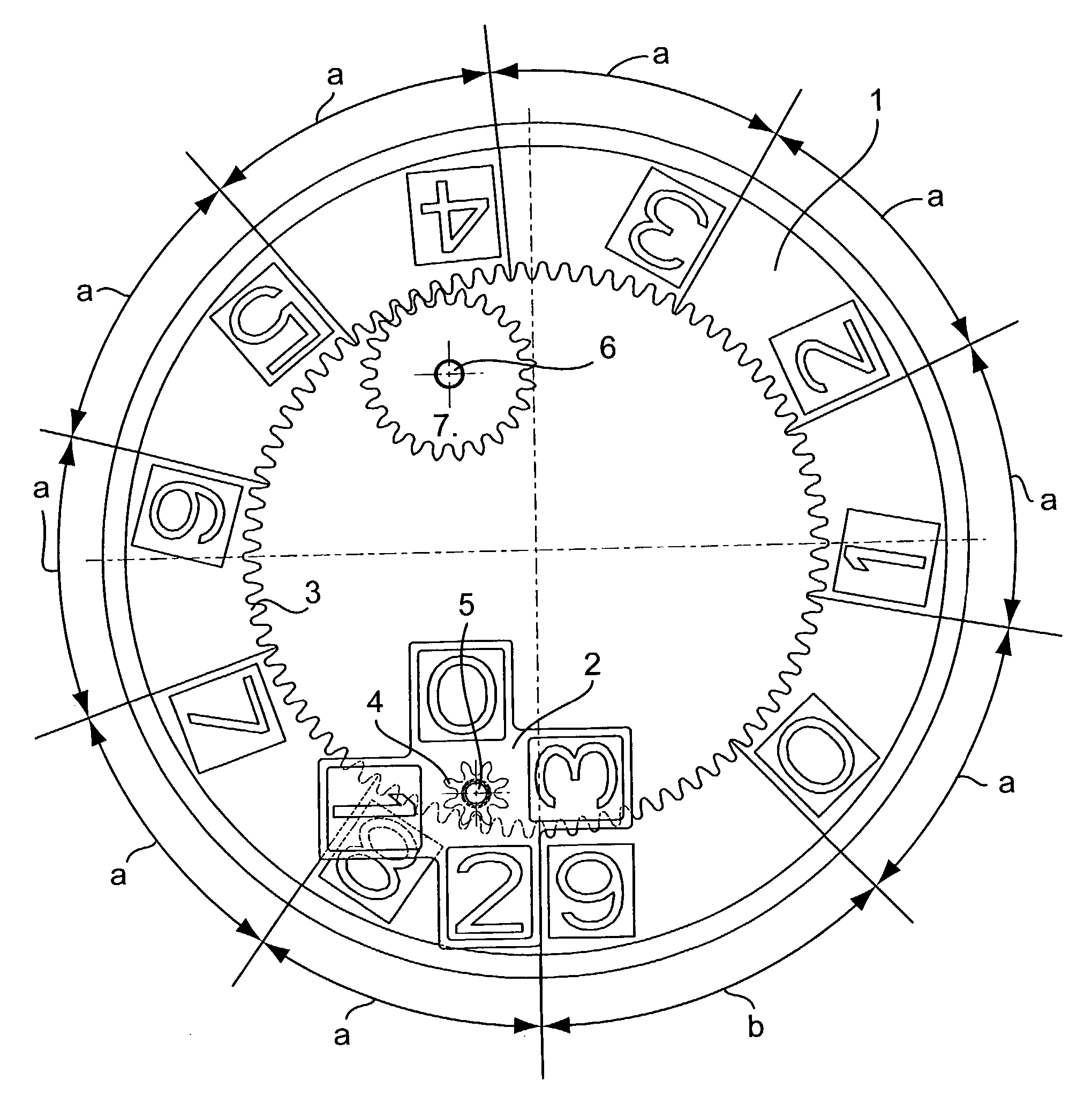

The device for displaying the day of the month comprises a units display member (1) and a tens display member (2) provided one with at least one series of numerals from 0 to 9 and the other with a series of numeral from 0 to 3, these units and tens display members being positioned relative to each other so as to display in the space of a large window two numerals side by side. The units display member (1) is divided into ten sectors or a multiple of ten sectors each carrying a numeral from 0 to 9, the nine sectors (a) separating the numerals 0-1, 1-2; . . . 8-9 having an angular extent equal to â…˜th of the angular extent of the sectors (b) separating the numerals 9 from the numerals 0.
First Claim
Other Claims data not available
