Universal fitting nipple
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 21, 2006
Grant Date -
Dec 16, 2004
app pub date -
Apr 13, 2004
filing date -
Apr 17, 2003
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

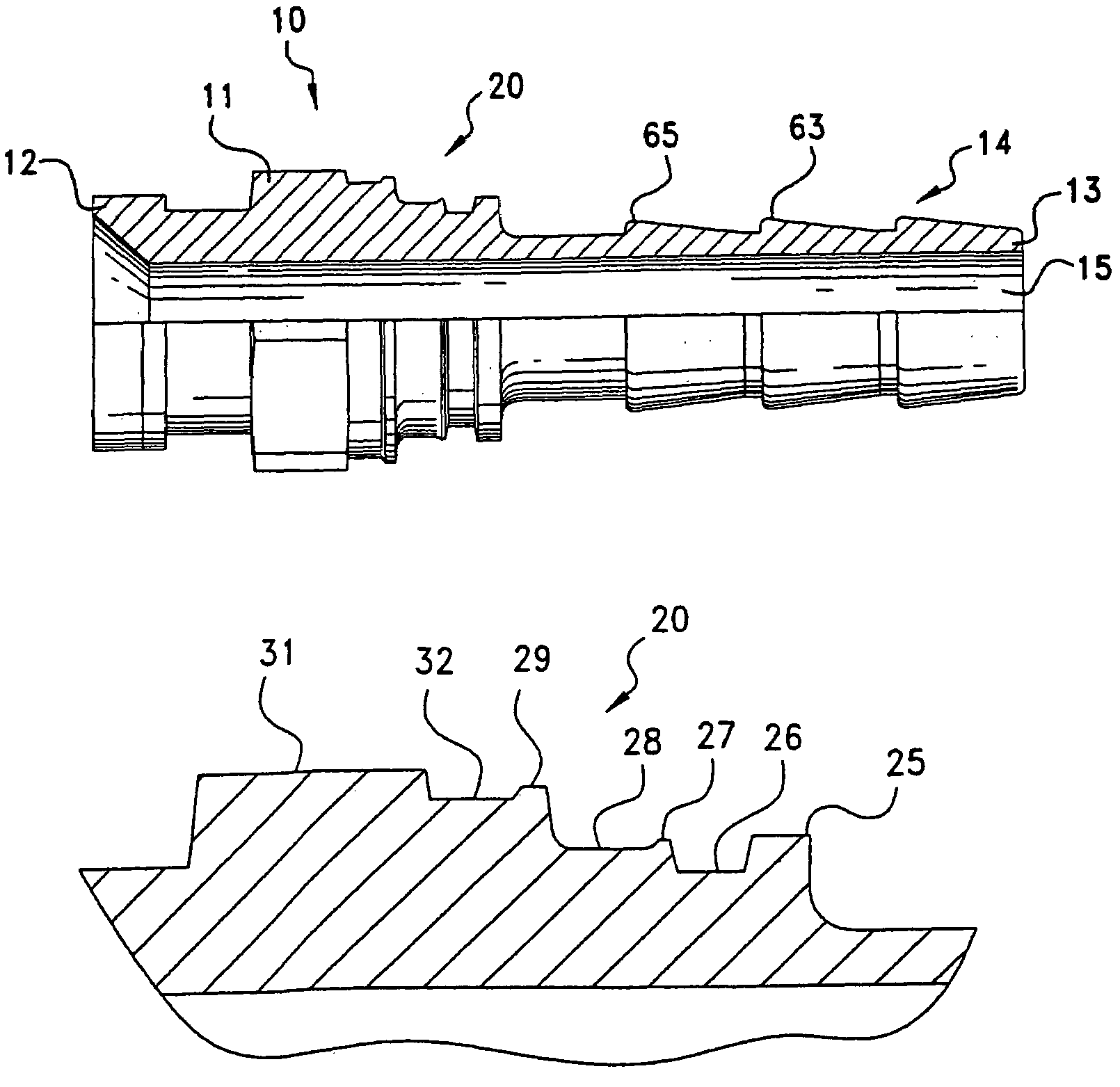

A permanently attachable hose coupling for a pressurized conduit end having a generally tubular nipple and a generally cylindrical shell permanently attached to the nipple and generally surrounding the conduit end. The nipple has a longitudinal axis, first and second ends, a series of circumferential grooves located between the first and the second ends, a longitudinal through bore, and an insert portion adjacent the plurality of grooves for insertion in the conduit. Each of the series of circumferential grooves fixedly receive at least one of an inside surface, an end surface and an outside surface of the generally cylindrical shell and each of the grooves has a generally flat base portion parallel to the longitudinal axis, a first substantially vertically oriented sidewall adjacent the generally flat base portion and a second substantially vertically oriented sidewall.
