Missing fuel cap detection system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 28, 2006
Grant Date -
Mar 17, 2005
app pub date -
Sep 16, 2003
filing date -
Sep 16, 2003
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

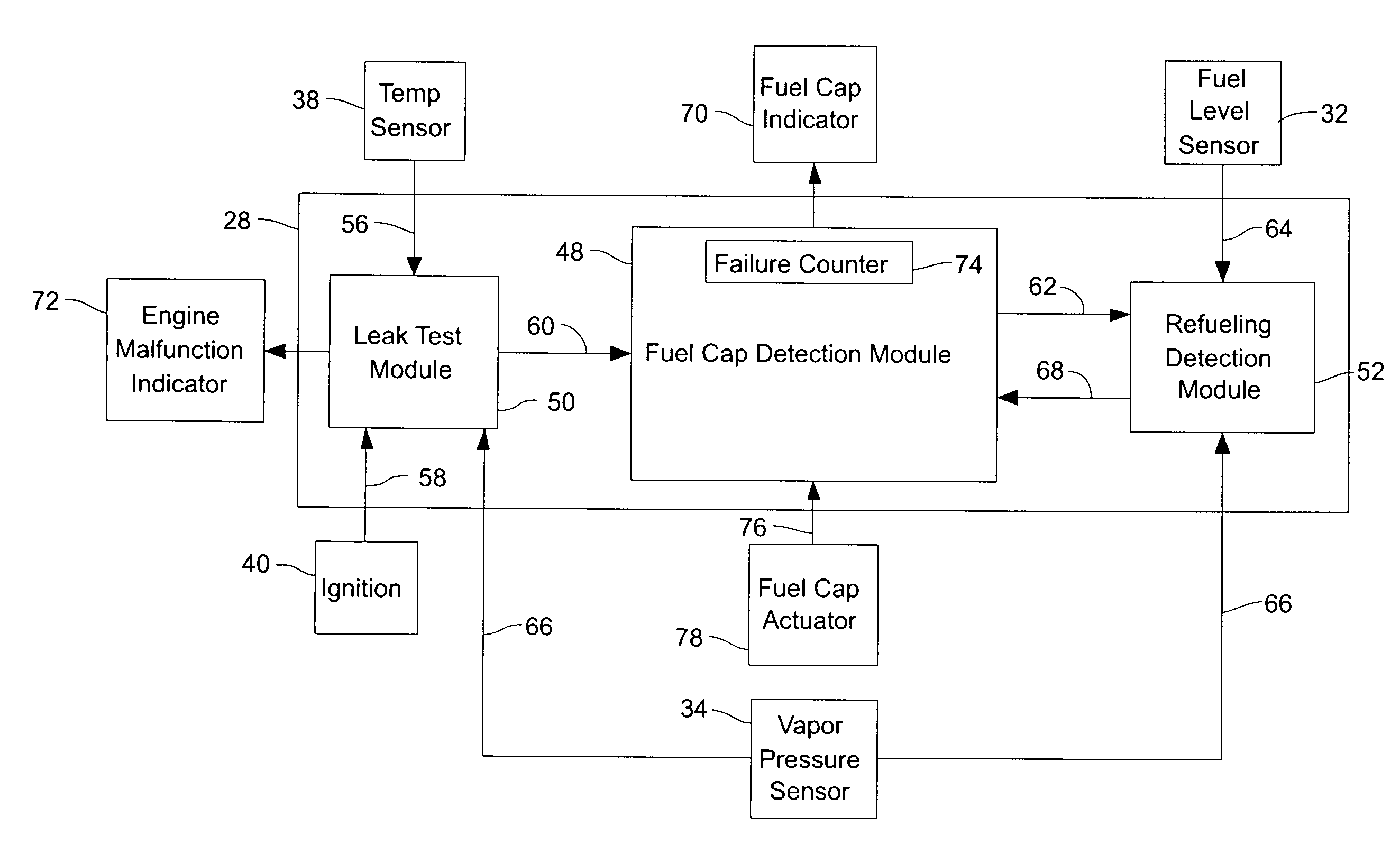

A method for detecting a missing or improperly installed fuel cap on a vehicle includes a first leak test that detects a leak in an evaporative emissions system of a vehicle. A refueling test detects a refueling of the vehicle when the first leak test detects the leak. A fuel cap indicator in the vehicle is activated when the first leak test detects the leak and the refueling test detects the refueling. The fuel cap indicator is deactivated after a predetermined time period. The fuel cap indicator remains deactivated when a predetermined number of leak tests consecutively detect the leak. The fuel cap indicator is deactivated when an occupant of the vehicle indicates that a fuel cap of the vehicle is properly installed. The occupant activates an actuator on an instrument panel of the vehicle to indicate the fuel cap is properly installed.
First Claim
Other Claims data not available
