Apparatus and method for displaying subsurface anomalies and surface features
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 21, 2006
Grant Date -
Apr 28, 2005
app pub date -
Oct 22, 2003
filing date -
Oct 22, 2003
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

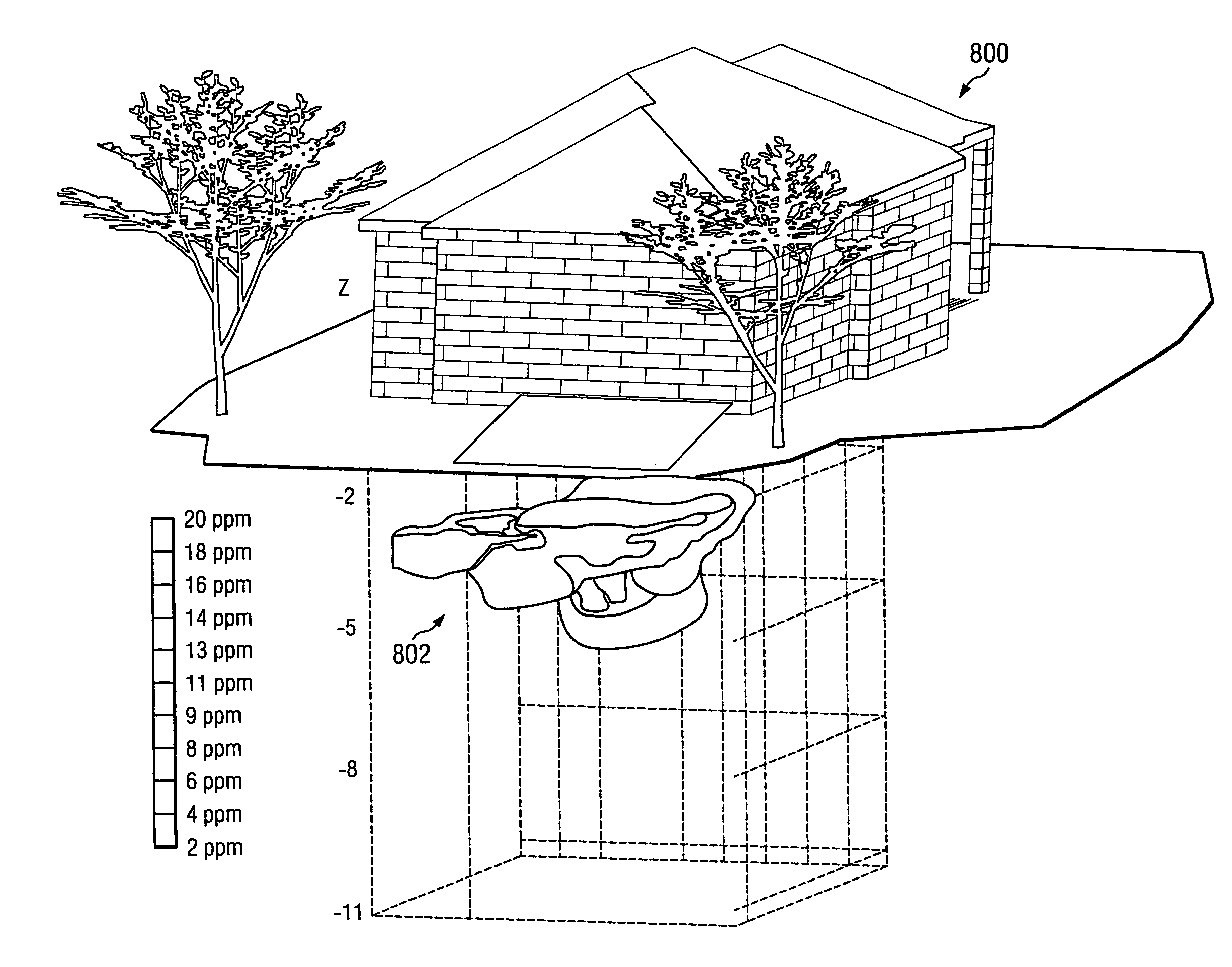

The present invention provides a method of combining various types of data and software in order to arrive at a composite graphical representation of a construction site, including surface and subsurface features. A 2-D or 3-D graph of subsurface contoured surfaces is created. A 3-D wire-frame model of surface and subsurface features is created. Aerial photographs of the site can be incorporated and the aerial photographs contoured surfaces and wire-frame model are to produce a complete Visual Reduction Modeling Language (VRML) model of both surface and subsurface features. The VRML model allows the user to identify and visualize a relationship between sub-surface features and above ground features.
