Receiving method and receiver
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 21, 2006
Issued Date -
N/A
app pub date -
Mar 31, 2005
filing date -
Nov 20, 2002
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

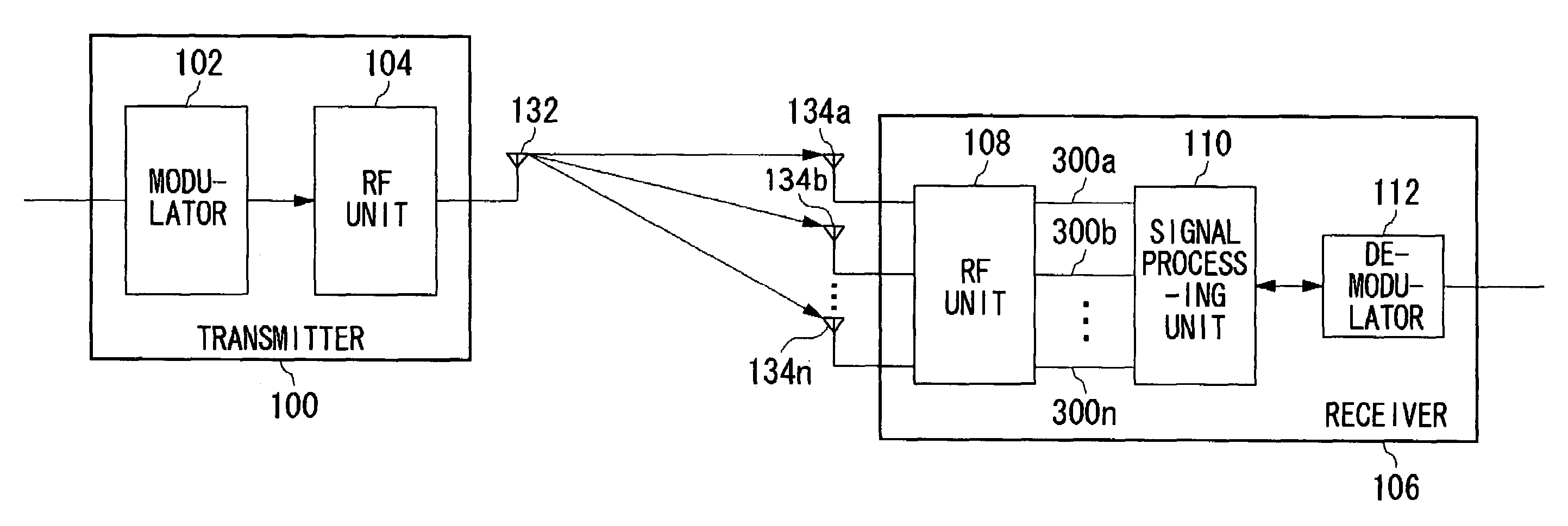

BB input units input baseband received signals. An initial weight data setting unit sets weighting coefficients to be utilized in the interval of a training signal as initial weighting coefficients. A gap compensating unit compensates control weighting coefficients with a gap error signal and outputs the updated weighting coefficients acquired as a result of the compensation. A weight switching unit selects the initial weighting coefficients in the interval of the training signal and selects the updated weighting coefficients in the interval of the data signal. Then the weight switching unit outputs the selected initial weighting coefficients and updated weighting coefficients as the weighting coefficients. A synthesizing unit weights the baseband received signals with the weighting coefficients and then sums them up.
First Claim
Other Claims data not available
