Automated banking machine key loading system and method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 21, 2006
Grant Date -
N/A
app pub date -
Jul 15, 2003
filing date -
Jul 16, 2002
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

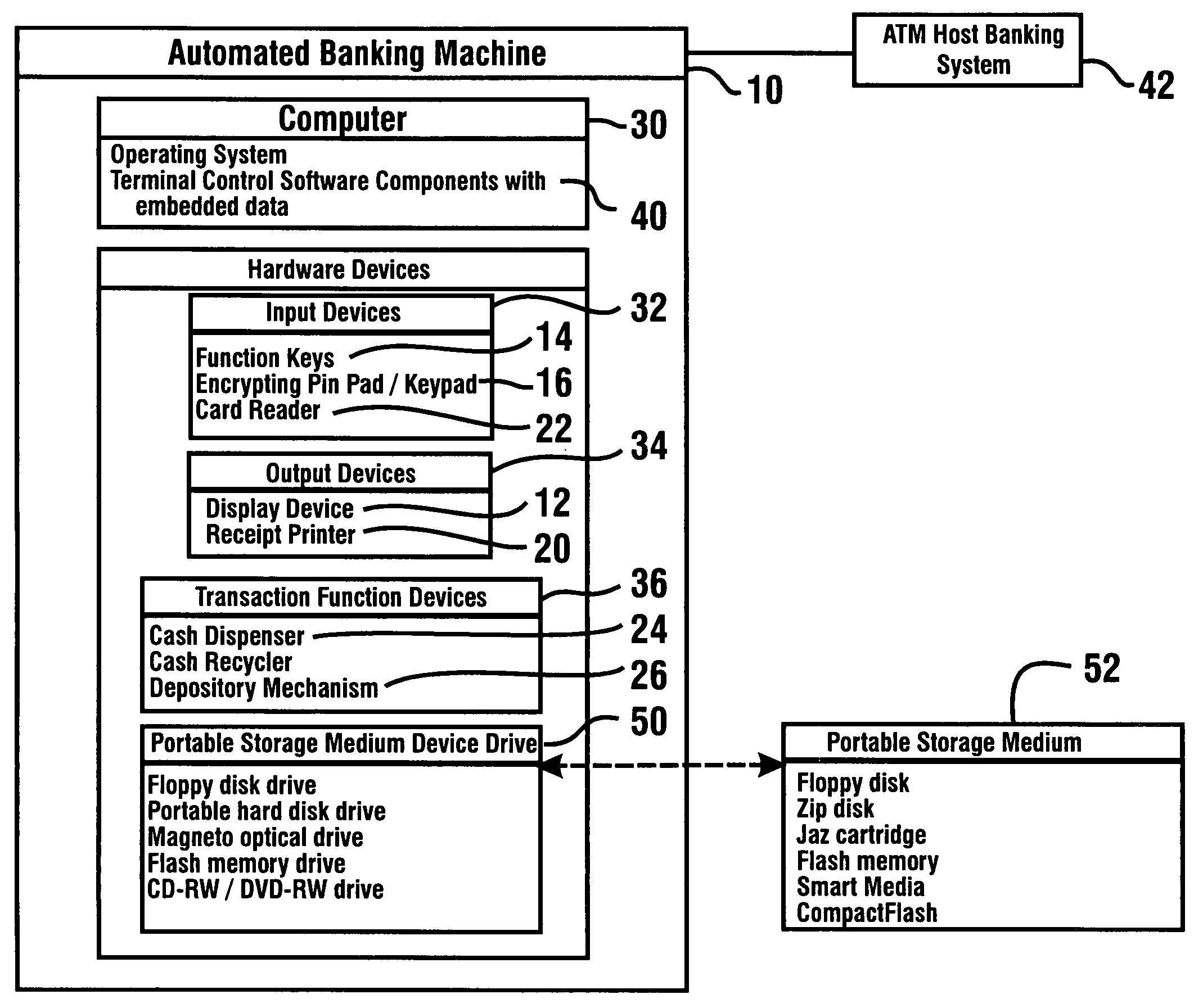

An encryption key transfer system, the system may be operative to generate encrypted files on a portable storage medium which may be used to transfer encrypted keys between ATMs using a single operator. Such secret encrypted keys may include a terminal master key. The system may include a source ATM and a target ATM with a common software program and/or hardware installed in each ATM. The source ATM may use secret information associated with the common software program and/or hardware and other randomly generated information to securely encrypt the secret encryption keys. The source ATM may further store the encrypted secret encryption keys and the randomly generated information on a portable storage medium. The target ATM may be operative to decrypt the secret encrypted keys using the secret information associated with the common software program and/or hardware and the randomly generated information retrieved from the portable storage medium.
First Claim
Other Claims data not available
Family
