Tungsten-containing firearm slug
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 21, 2006
Grant Date -
Jan 27, 2005
app pub date -
Oct 29, 2003
filing date -
Oct 31, 2002
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

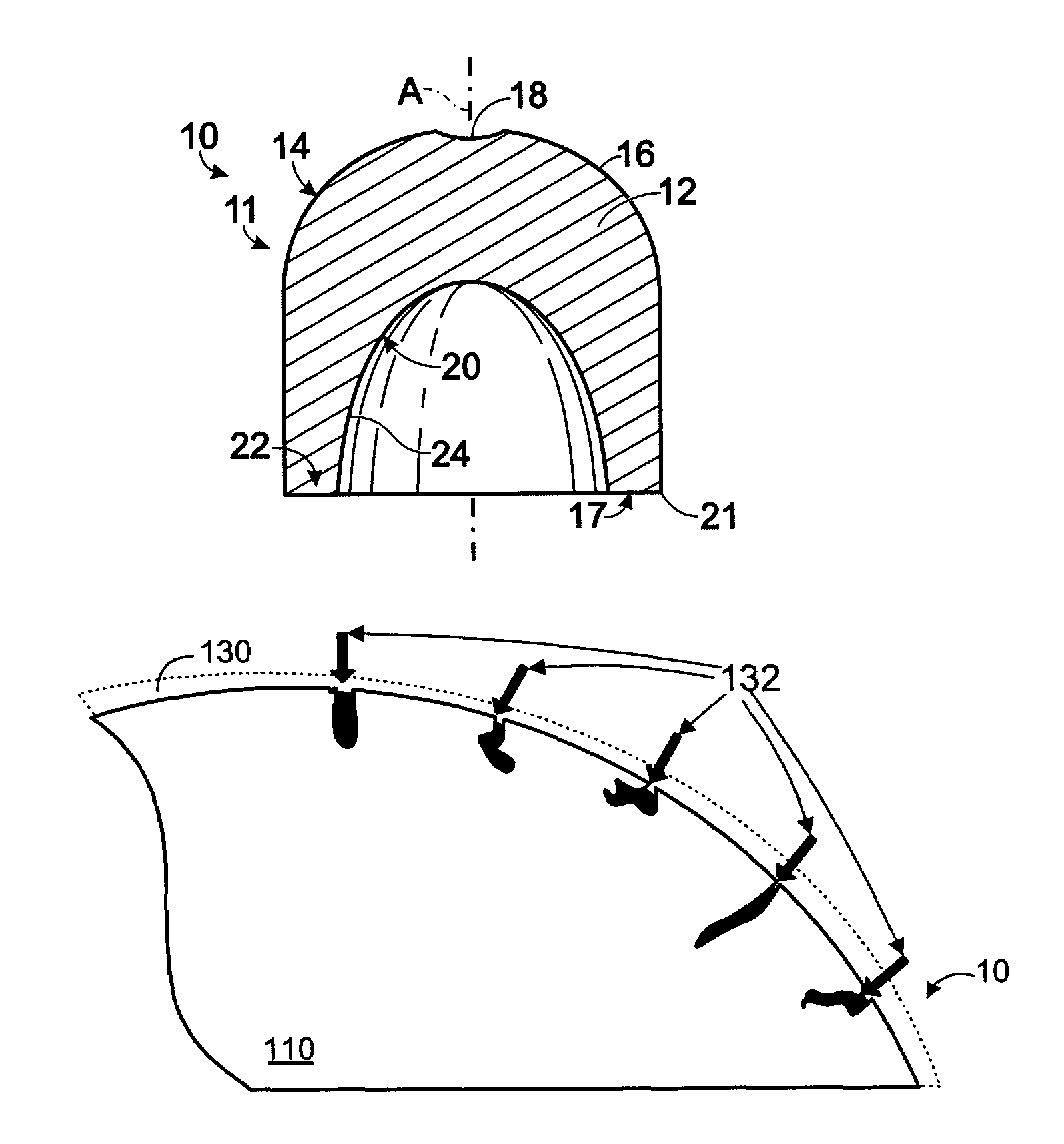

Firearm slugs formed from a non-toxic lead substitute that includes tungsten. In some embodiments, the firearm slug is formed with a recessed back portion, thus shifting an increased percentage of the slug's net mass toward the front of the slug. In some embodiments, the firearm slug is formed with a recessed front portion. In some embodiments, the slug is a component of a slug cartridge that includes a slug cup. The slug must have a density that is less than, equal to, or greater than lead, or a lead-antimony alloy used for firearm projectiles. In some embodiments, the slug is formed via powder metallurgy from a powder that includes at least one tungsten-containing component and at least one binder. In some embodiments, the slug is cast or otherwise formed from a molten feedstock that includes at least one tungsten-containing component. In some embodiments, the slug is frangible.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2003 Application Filing Year
- F42B Class
- 309 Applications Filed
- 121 Patents Issued To-Date
- 39.16 % Issued To-Date
