Stormwater treatment system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 14, 2006
Grant Date -
Feb 24, 2005
app pub date -
Jul 28, 2004
filing date -
Jul 28, 2003
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

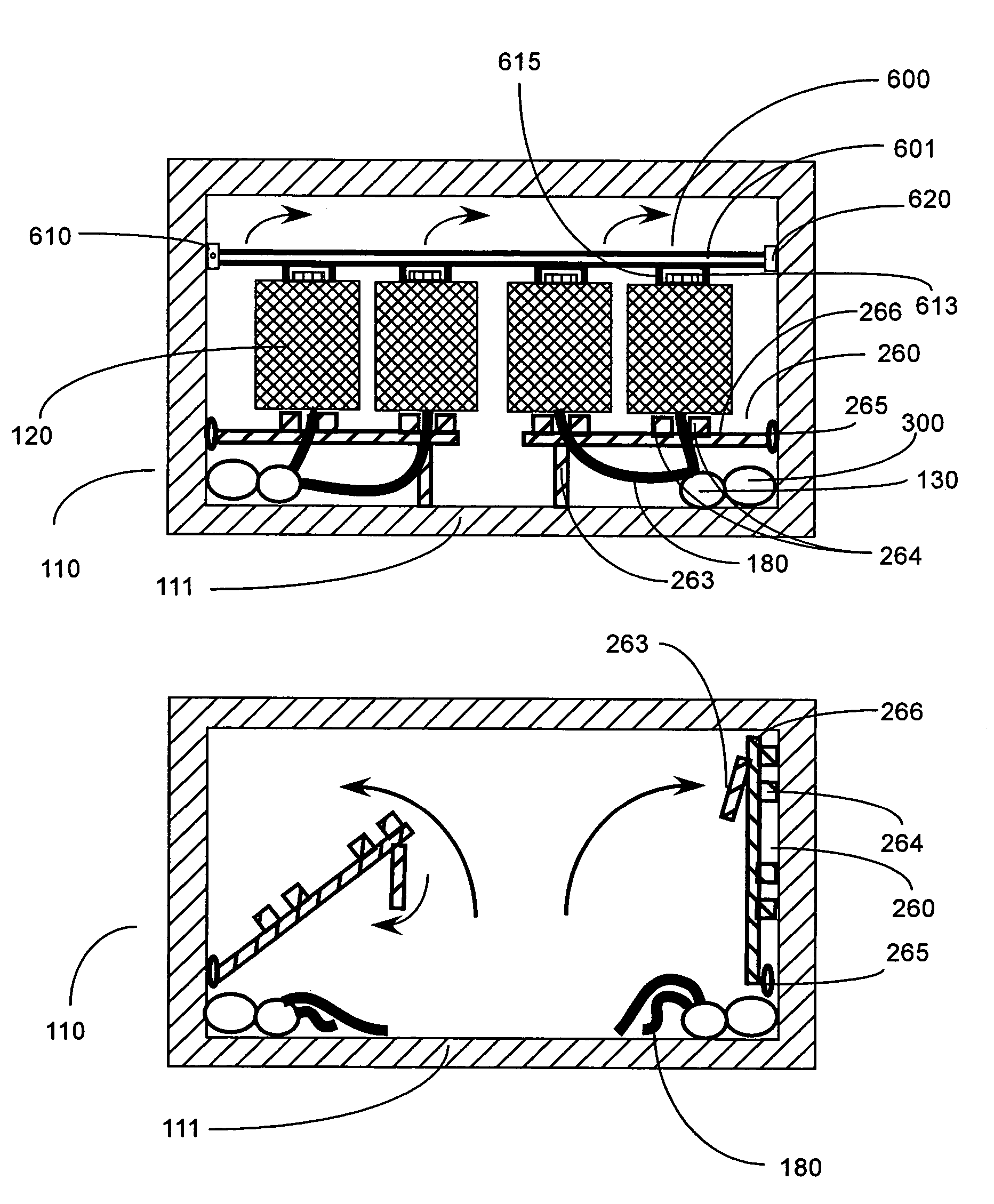

A system for removing material from a flowing liquid, where the system includes one or more cartridges, where each cartridge has an outer permeable wall and an inner permeable wall that form a media region between the walls, where a media is disposed within at least part of the media region to remove at least a portion of the material from the flowing liquid, the cartridge also having an inner cartridge lumen in communication with the inner permeable wall, and a cartridge outlet in communication with the inner cartridge lumen; a cartridge chamber having a treatment region that houses the one or more cartridges, where the cartridge chamber also includes a chamber inlet to accept the flowing liquid, and a chamber outlet to discharge treated liquid; and an actuatable valve positioned outside the one or more cartridges, where the valve controls a flow rate of the flowing liquid within the treatment region by actuating in response to a change in a level of the liquid in the treatment region.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2004 Application Filing Year
- C02F Class
- 719 Applications Filed
- 280 Patents Issued To-Date
- 38.95 % Issued To-Date
