Portable slow cooker
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 17, 2006
Grant Date -
Jul 7, 2005
app pub date -
Dec 31, 2003
filing date -
Dec 31, 2003
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

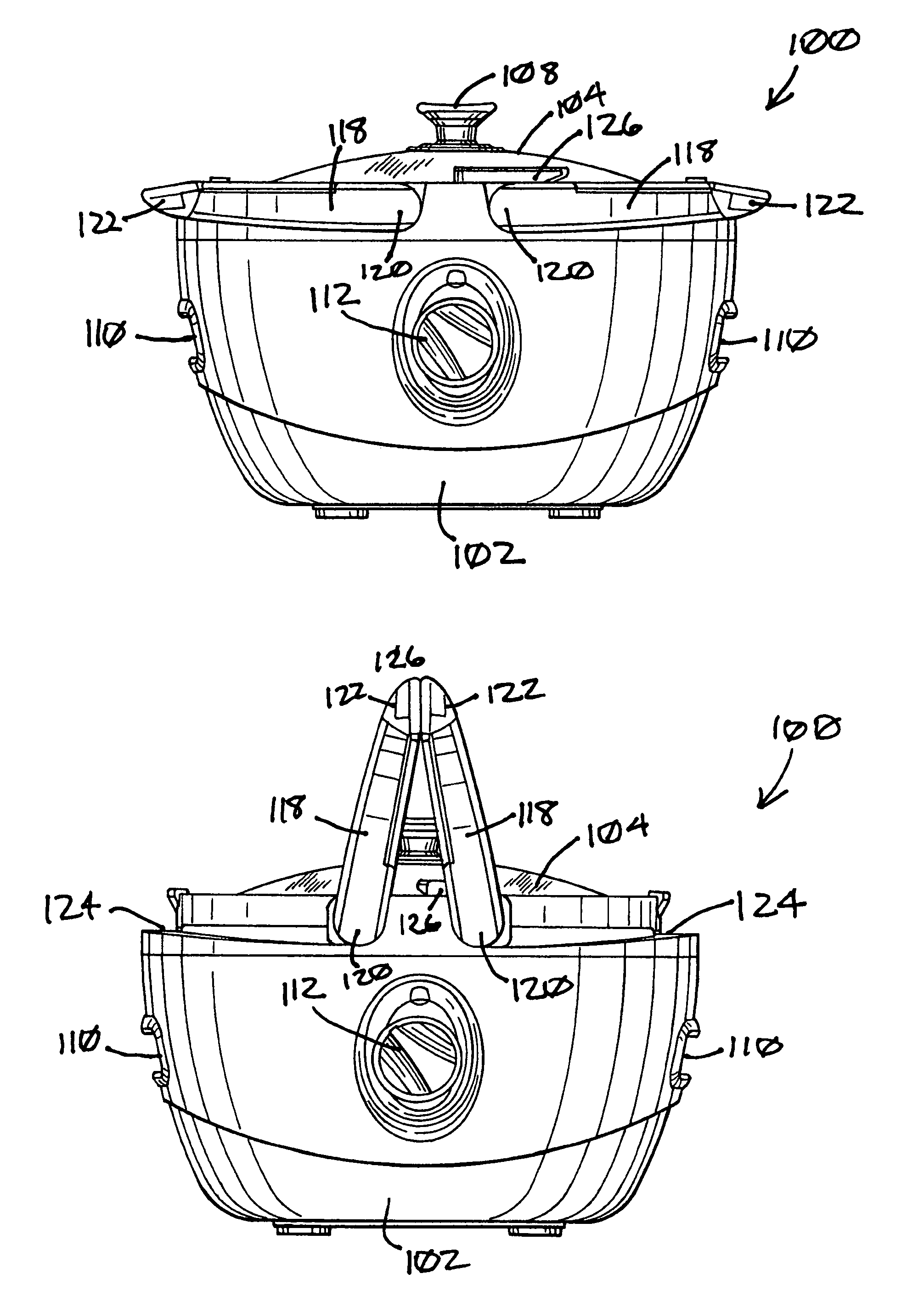

The present invention relates to a sealing apparatus on a portable slow cooker. The sealing apparatus includes a handle, a latch and a gasket. The gasket is positioned between the lid and the heating vessel of the slow cooker. The handle is hingedly attached to the slow cooker and has a lowered position and a raised position. The latch is hingedly attached to the heating vessel, and has a locked position and an unlocked position. When the handle is in the lowered position, the latch is in the unlocked position and the lid is removable from the heating vessel. When the handle is in the raised position, the latch is in the locked position and the lid is sealed onto the heating vessel.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 14 Citation Count
- B65D Class
- 48.65 % this patent is cited more than
- 19 Age
