Process and apparatus for producing a laminate, comprising at least one polymer film with information and at least one substrate, for further processing for forgery-proof documents
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 17, 2006
Grant Date -
Dec 20, 2001
app pub date -
Dec 21, 2000
filing date -
Dec 22, 1999
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

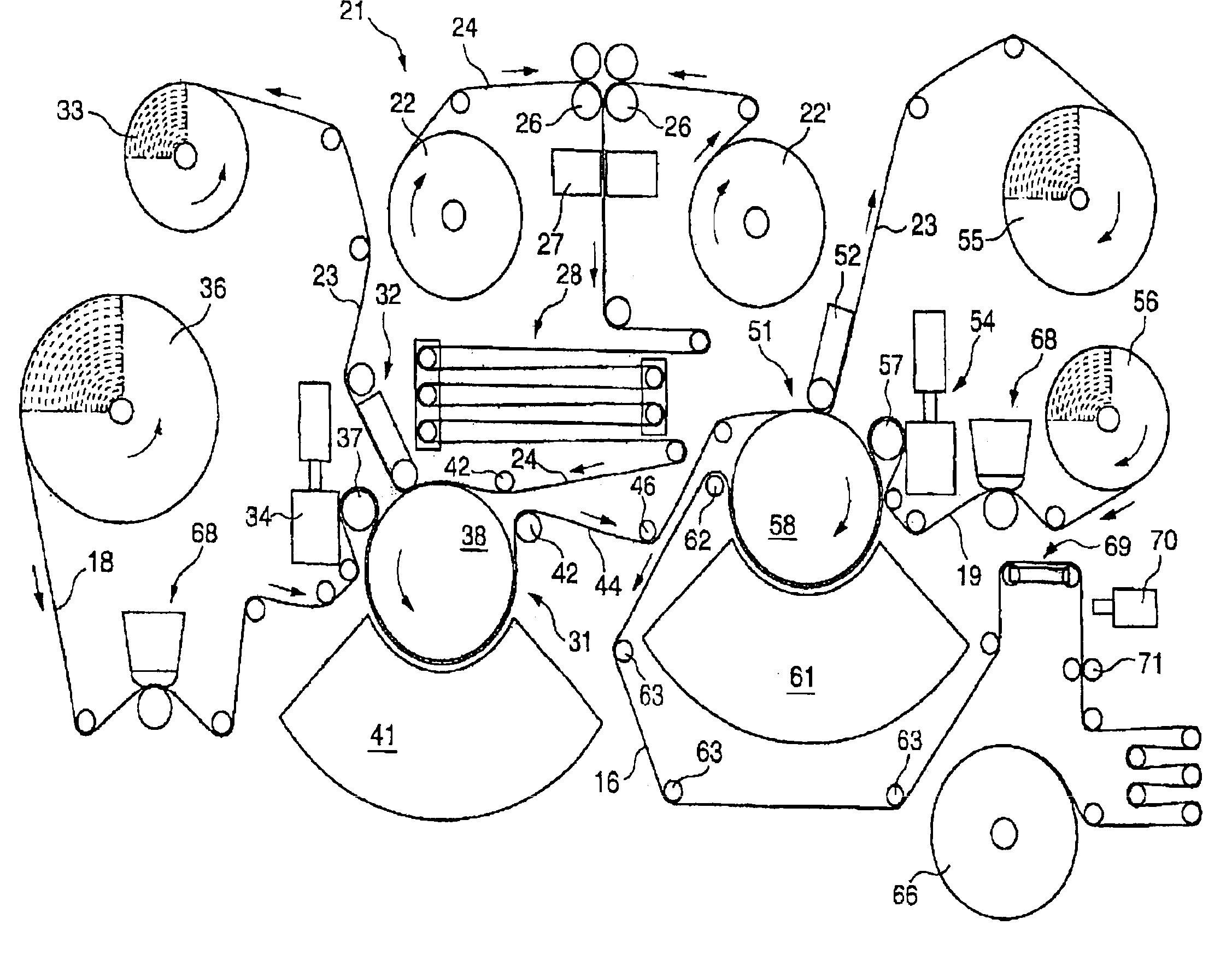

A process and an apparatus for producing a laminate, comprise at least one polymer film with information and at least one substrate, for further processing for forgery-proof documents, in which, in the first processing station, a supporting film is delaminated on a first side of the polymer film, after which a substrate is laminated on by an adhesive and subsequently exposed to a crosslinking-active radiation, and in which a laminate led out from the first processing station is fed to a second processing station, and the supporting film is delaminated on a second side of the laminate, after which a substrate is laminated on by an adhesive and subsequently exposed to a crosslinking-active radiation.
First Claim
Other Claims data not available
