Cantilever-style pedal assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 10, 2006
Grant Date -
Oct 28, 2004
app pub date -
Apr 28, 2003
filing date -
Apr 28, 2003
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

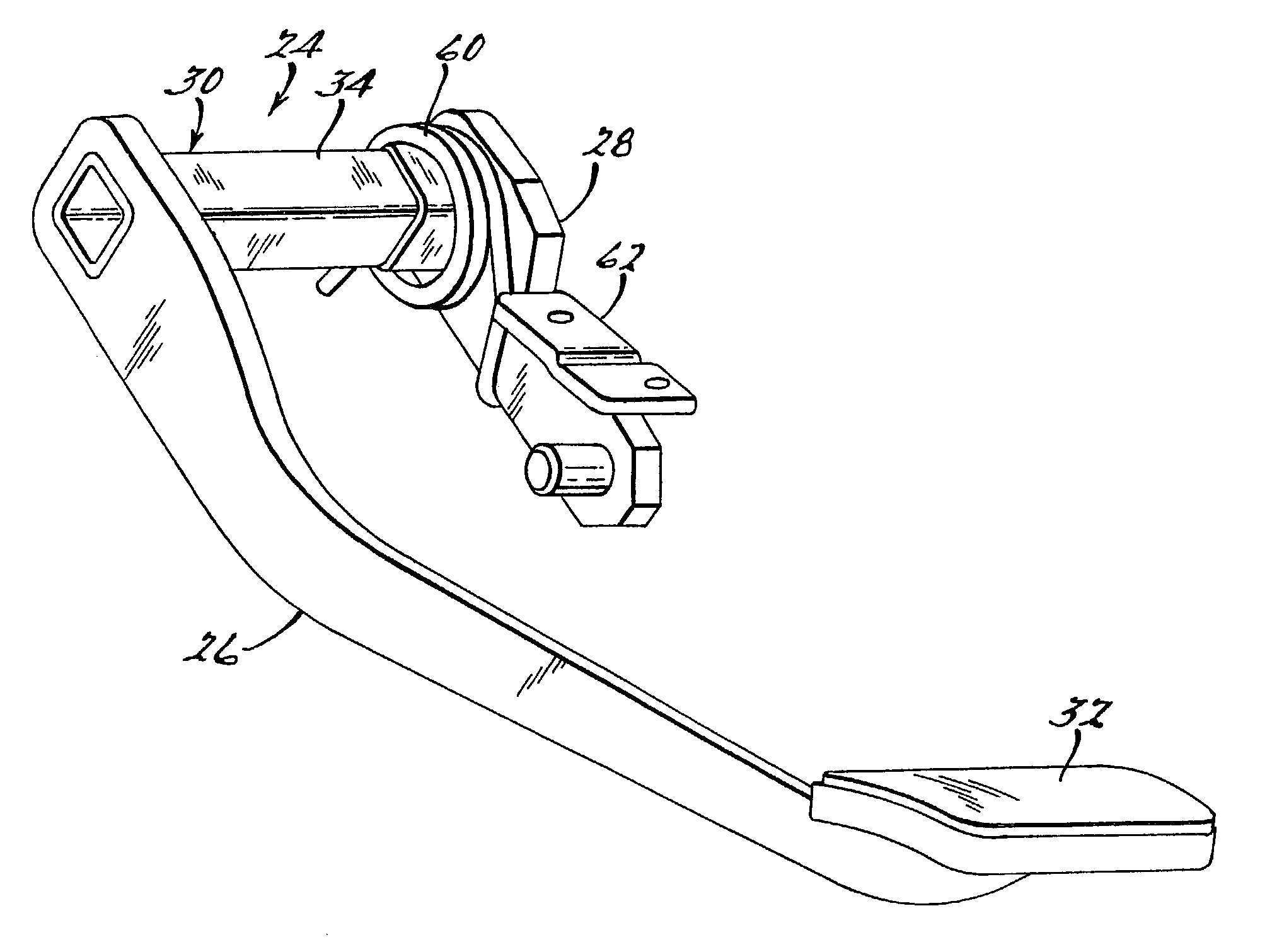

A pedal assembly for a cantilever style pedal includes a support bracket having a mounting face and two spaced apart side walls extending from opposing edges of said mounting face. The pedal assembly also includes a hub assembly rotatably connected between the side walls of the support bracket, wherein the hub assembly includes an outer hub member having a rectangular cross-sectional shape and a rectangular channel extending therethrough, an inner hub member having a solid circular shape, and a bushing disposed in each end of the outer hub member for supporting the inner hub member within the outer hub member. The pedal assembly further includes a first pedal arm, wherein an upper end of the first pedal arm is fixedly mounted to the hub assembly and a pedal pad is mounted to a lower end of the first pedal arm and a second pedal arm, such that a lower end of the second pedal arm is fixedly mounted to the hub assembly, such that the first pedal arm, hub assembly and second pedal arm rotate together as an integral member.
First Claim
Other Claims data not available
