Reel having apparatus for improved connection of linear material
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 3, 2006
Grant Date -
Oct 21, 2004
app pub date -
Apr 15, 2003
filing date -
Apr 15, 2003
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

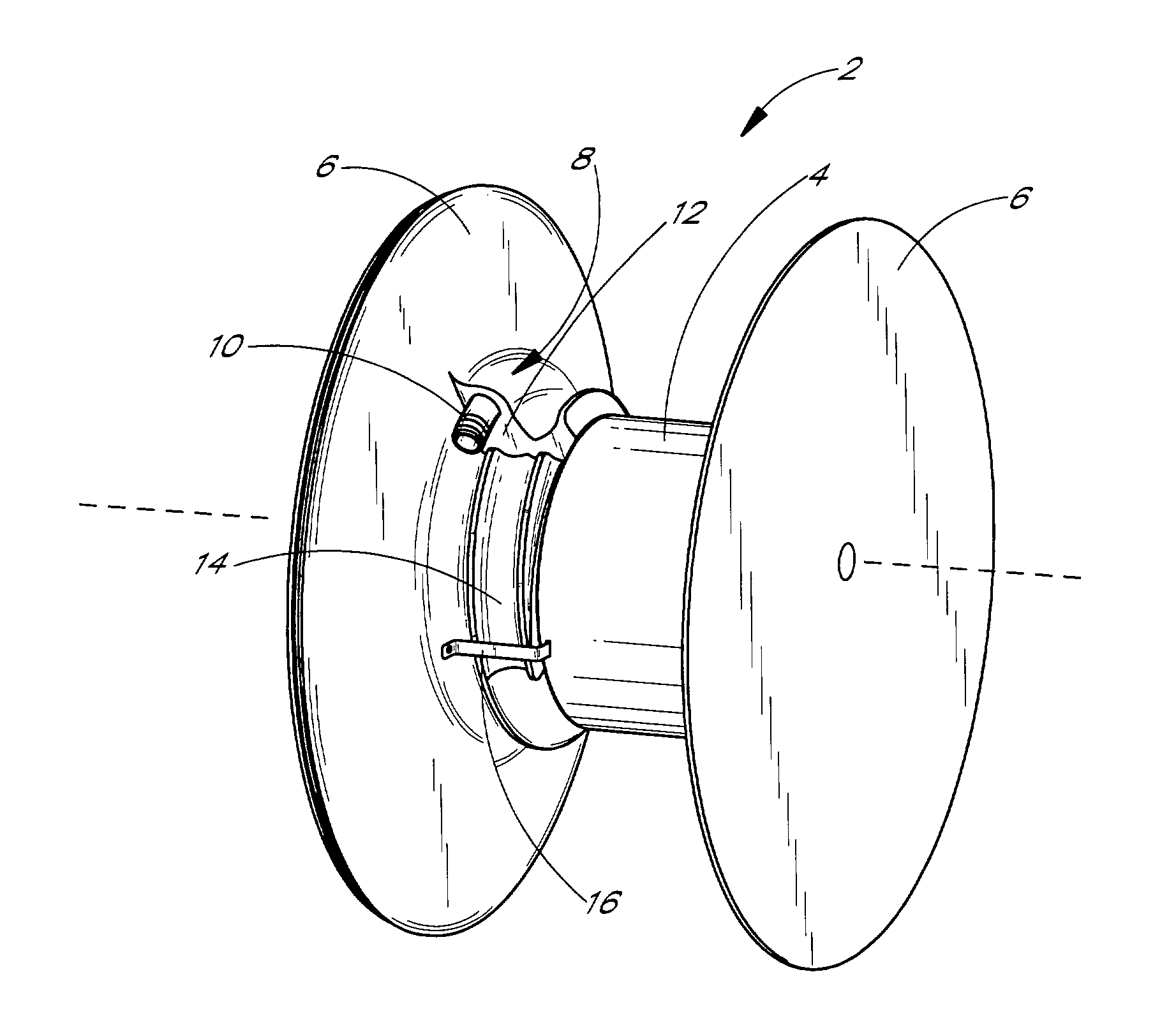

A linear material reel design promotes the uniform spooling of a linear material around a reel drum, while also reducing stress acting on the end of the linear material that is connected to the drum. A connector ramp has a connector face generally perpendicular to the outer surface of the drum and is configured to orient the connecting section of a linear material substantially parallel to the outer surface of the drum. A guide groove promotes uniformity of spooling. A retraction limiting band maintains a length of the linear material wrapped around the drum. The retraction limiting band, guide groove, and connector ramp can be employed together or independently. Methods of spooling linear material with the use of such apparatus are also provided.
