Tamper evident bottle cap

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 6981602
SERIAL NO

10266091

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

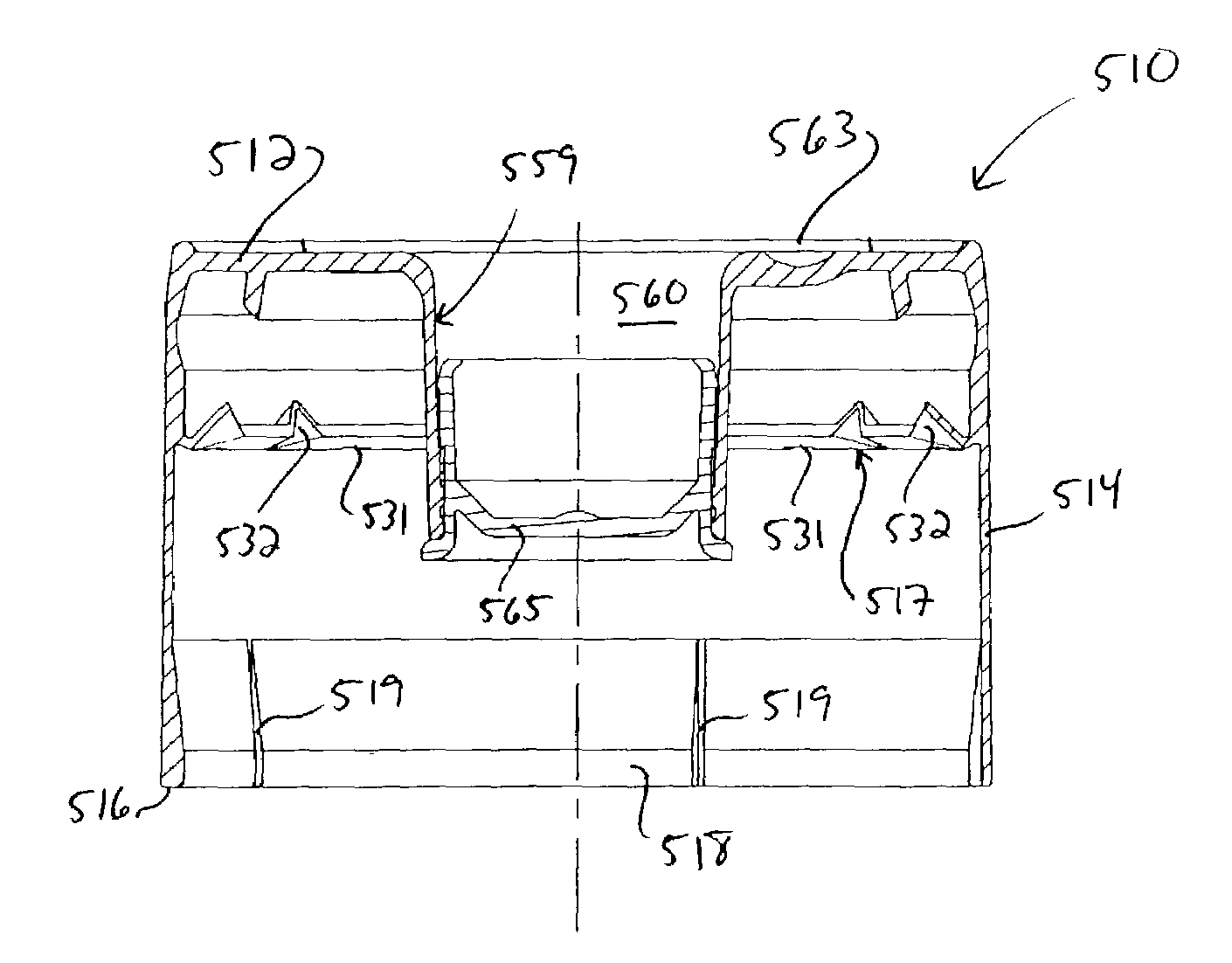

A closure for sealing the opening of a container. The closure may include an angled plug. The container includes an external thread configuration and the closure includes an internal thread configuration which are adapted to pass over each other with one of the external and internal thread configurations having at least one thread lead and the other having at least twice as many thread leads. The closure includes an inwardly turned retaining rim extends at least partially upwardly. The retaining rim has an attachment boss and an upwardly extending line of weakness adjacent the attachment boss such that when the closure is removed from the container, the line of weakness tears allowing the tamper-evidencing band to remain with the closure upon removal from the container. The closure may include a top having a periphery, an annular skirt depending downwardly from the periphery and including a lower edge and a line of weakness extending upwardly from the lower edge, a tear tab extending downwardly from the skirt below the lower edge, and a tamper-evidencing locking member including an inwardly extending locking ring that extends radially inwardly from the skirt intermediate the top and the bottom edge, the retaining rim including a free edge that is adapted to engage the radially extending locking bead of the container when the closure is removed from the container neck. A method of molding a closure including a tamper-evidencing band is also disclosed.

First Claim

See full text

Other Claims data not available

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
PORTOLA PACKAGING INC890 FAULSTICH COURT SAN JOSE CA 95112

International Classification(s)

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Adams, Brian M Newark, CA 64 1213
Ma, Mike Xiaoli San Jose, CA 24 763

Cited Art Landscape

Load Citation

Patent Citation Ranking

  • 41 Citation Count
  • B65D Class
  • 93.01 % this patent is cited more than
  • 19 Age
Citation count rangeNumber of patents cited in rangeNumber of patents cited in various citation count ranges32831472205110463320964601 - 1011 - 2021 - 3031 - 4041 - 5051 - 6061 - 7071 - 8081 - 9091 - 100100 +050100150200250300350400450500550600650700750800850900
