Ballast excavating chain
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 3, 2006
Issued Date -
N/A
app pub date -
Jul 13, 2004
filing date -
Jul 15, 2003
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

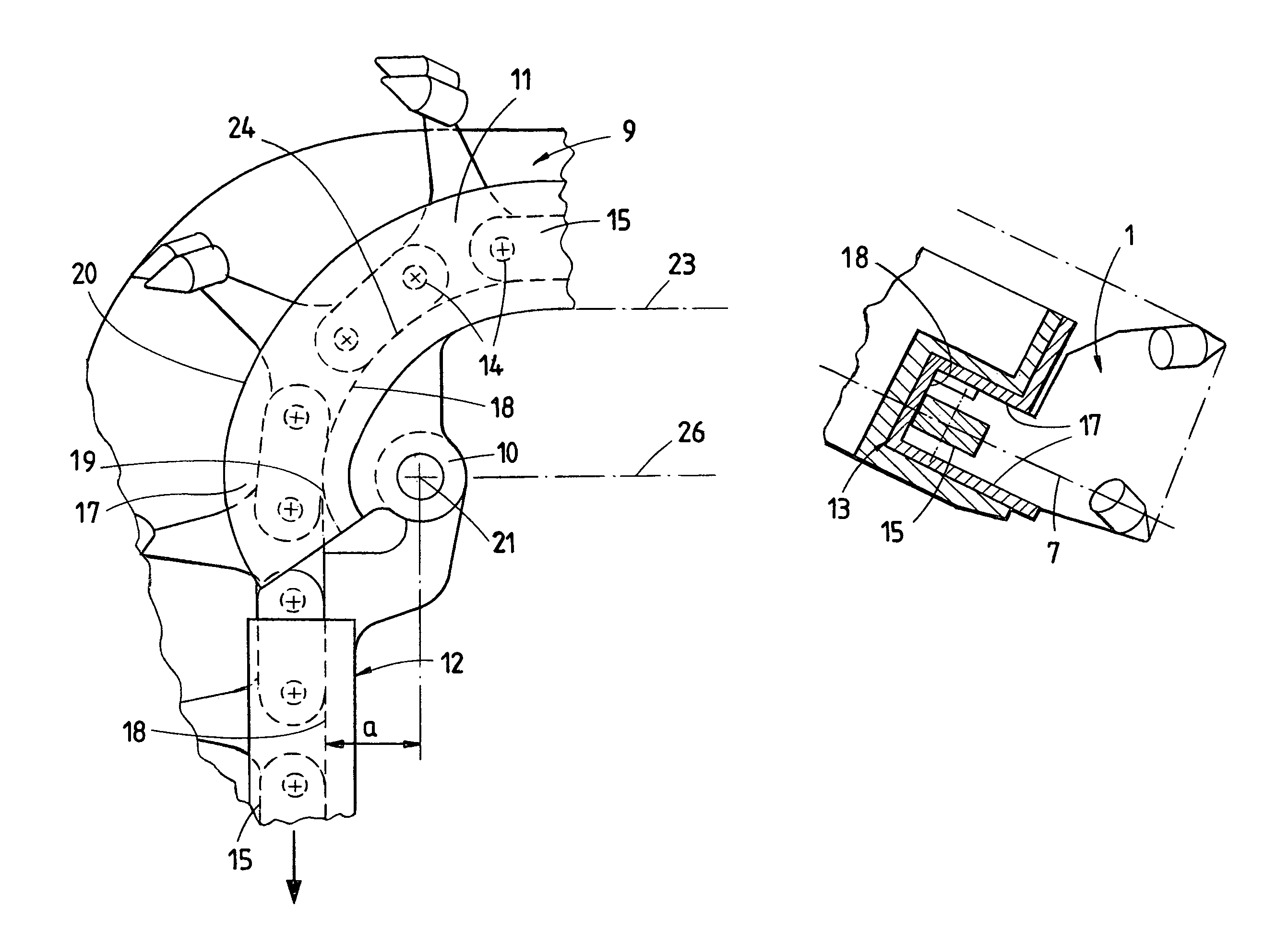

An arrangement of an excavating chain for conveying ballast of a track bed comprises a guide comprising a transverse guide section articulately connected to longitudinal guide sections defining a guide channel having an end glide track along which the excavating chain is guided. The end glide track of the transverse guide section is curved around the joints connecting the ends of the transverse guide section to the adjoining longitudinal guide sections, the end glide track enclosing an acute dihedral angle α with an imaginary plane of elongation of the end glide track of a respective one of the longitudinal guide sections whereby the excavating chain is deflected from the transverse to the longitudinal guide sections solely by contact with the end glide track.
First Claim
Other Claims data not available
