Tubular insulating apparatus and method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 3, 2006
Grant Date -
May 19, 2005
app pub date -
Nov 8, 2004
filing date -
Nov 8, 2003
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

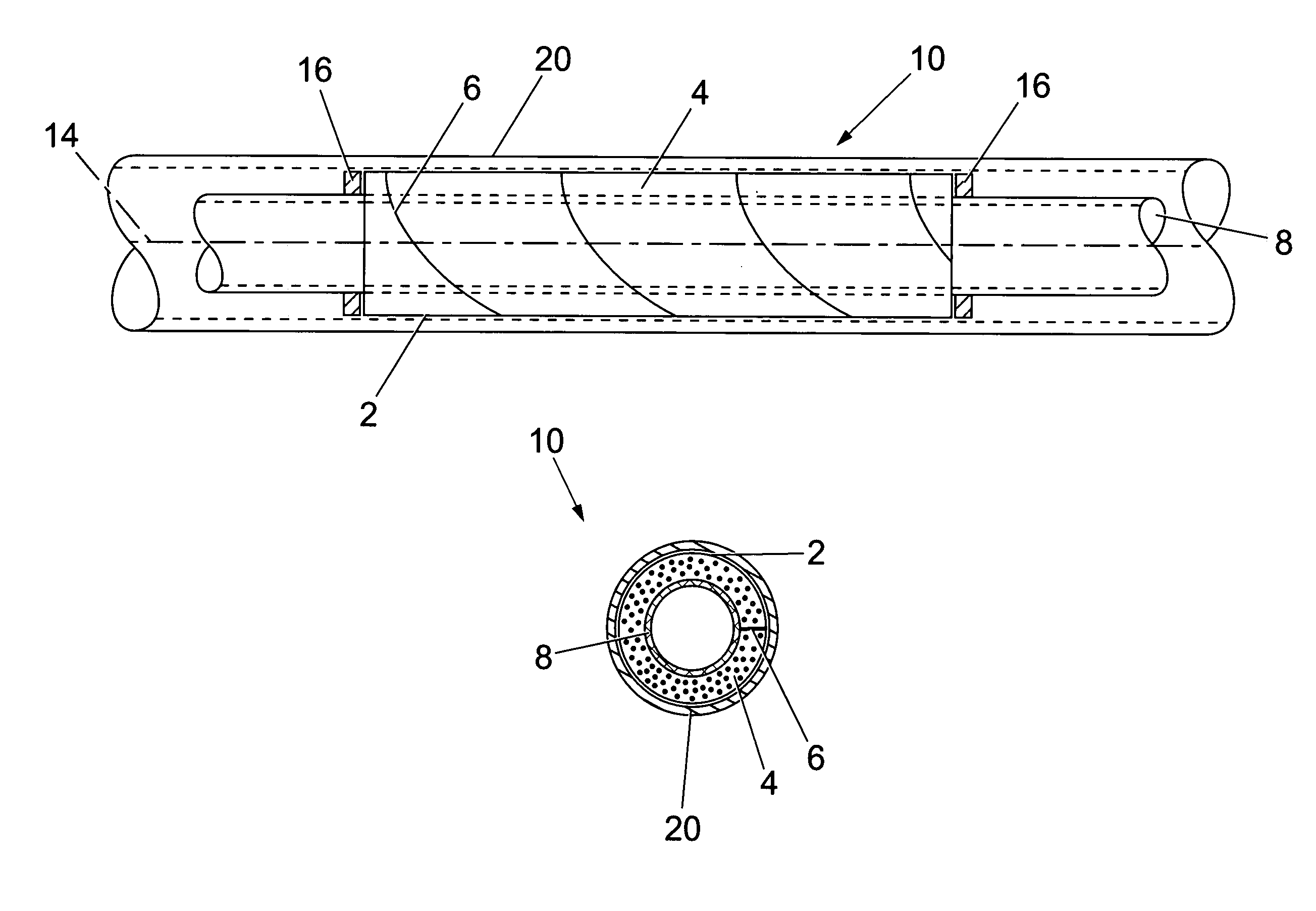

A tubular insulating apparatus (10) for insulating a first tubular (8) within a second tubular (20) for use in the oil and gas exploration and production industry. An inner insulating member (4) surrounds the outer circumference of a pipeline (8) and a rigid spacer member (16) supports the pipeline (8) within the second tubular (20), the rigid spacer member (16) being provided at the ends of the apparatus (10). A substantially resilient member (2) is also provided on the outer most face of the inner insulating member (4) and a helically arranged cut (6) is provided therethrough in order to allow tensile and compressive forces caused by a bending moment acting along the longitudinal axis (14) of the apparatus (10) when e.g. the pipeline (8) is placed upon a reel, to be substantially relieved. Methods of manufacturing and installing the apparatus (10) are also provided.
First Claim
Other Claims data not available
