Device for affixing adhesive labels to goods packages
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 27, 2005
Grant Date -
N/A
app pub date -
Jul 26, 2000
filing date -
Oct 30, 1999
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

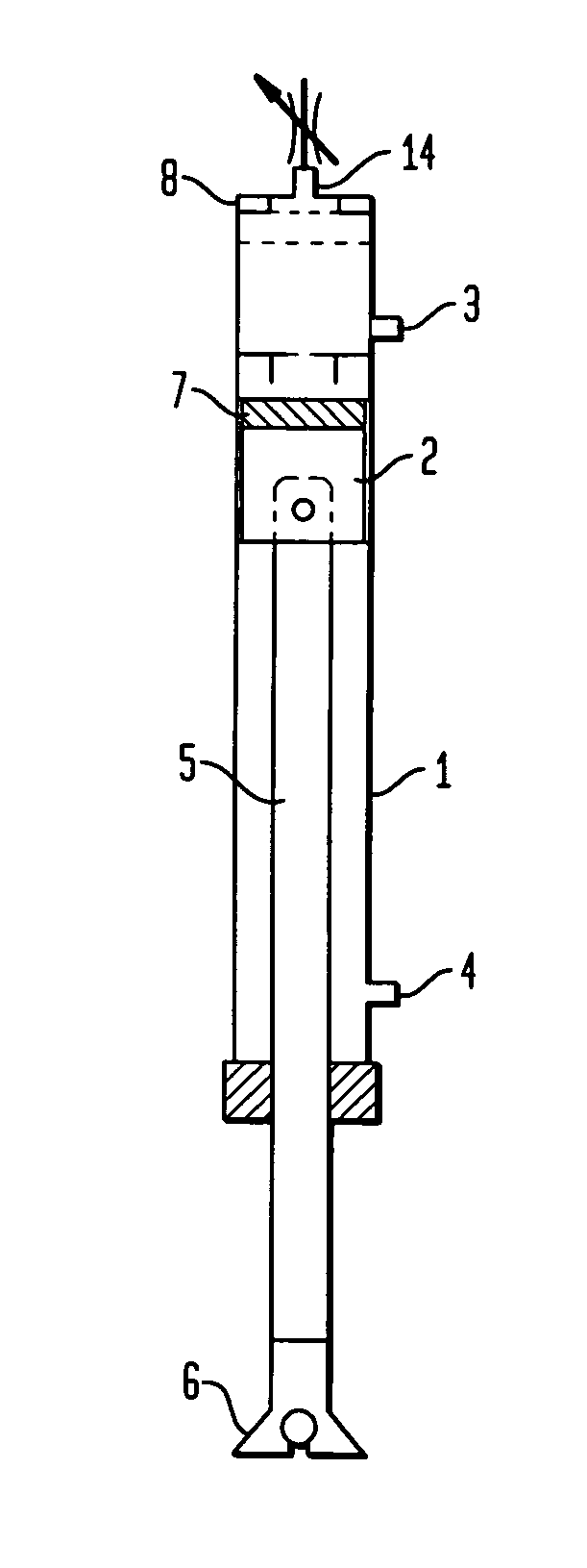

A device for affixing an adhesive label to a package comprises a piston and cylinder. The cylinder comprises two connections arranged on a wall of the cylinder spaced apart from each other, which are alternatively connected to either a positive or a negative pressure media source. The connections control the movement of the piston inside the cylinder so that the piston can move between a first dead center position and a second dead center position thereby causing a stamp to affix a label to the package. Shortly before reaching the first dead center, the piston blocks the first connection with its cylindrical wall, thereby stopping any increase in negative pressure between the piston and the first dead end position.
First Claim
Other Claims data not available
