Process for the manufacture of a disintegrating roll of an open-end spinning apparatus as well as a disintegrating roll made by such a process
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 27, 2005
Grant Date -
Sep 12, 2002
app pub date -
Feb 7, 2002
filing date -
Feb 14, 2001
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

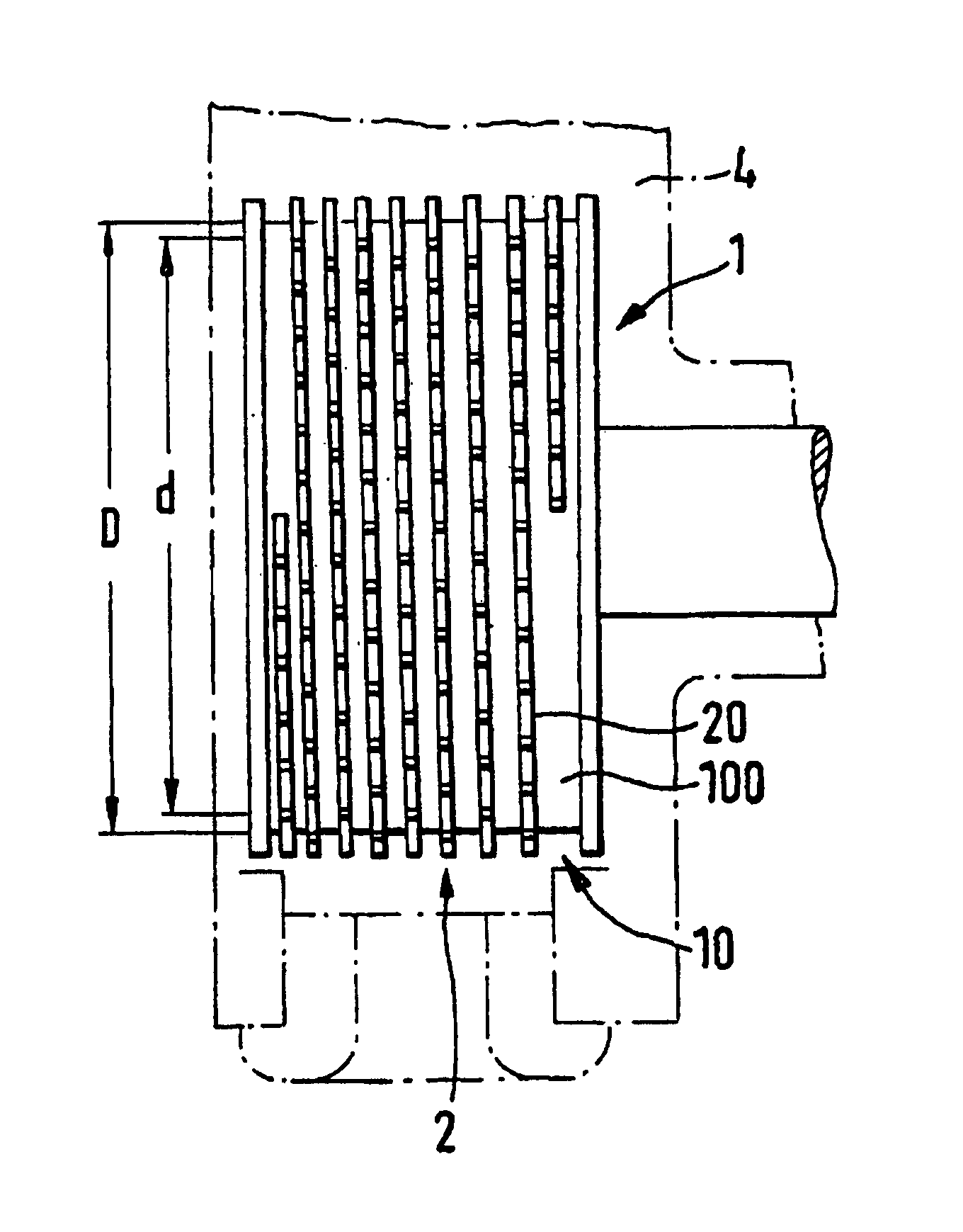

A sawtooth wire to be laid in a groove of a shredding-element-carrier of a disintegrating roll of an open-end spinning apparatus is brought into a shape, which essentially represents that shape, which the sawtooth wire is to assume on the shredding-element carrier. The sawtooth wire is preshaped on a dummy body, the circumference of which predominately conforms to that of the shredding-element carrier, or the sawtooth wire is directly preshaped on the shredding-element carrier of the disintegrating roll. The preshaped sawtooth wire is subsequently hardened, preferably inductively with the aid of a high frequency alternating current with a frequency of more than 1000 kHz. In this manner, a disintegrating roll is made, the abrasion resistant shredding element of which, after the preshaping, i.e., after is securement on the shredding-element carrier, is a hardened shredding element.
First Claim
Other Claims data not available
