Adaptor for firing blank ammunition
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 13, 2005
Grant Date -
N/A
app pub date -
Mar 12, 2003
filing date -
Mar 12, 2003
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

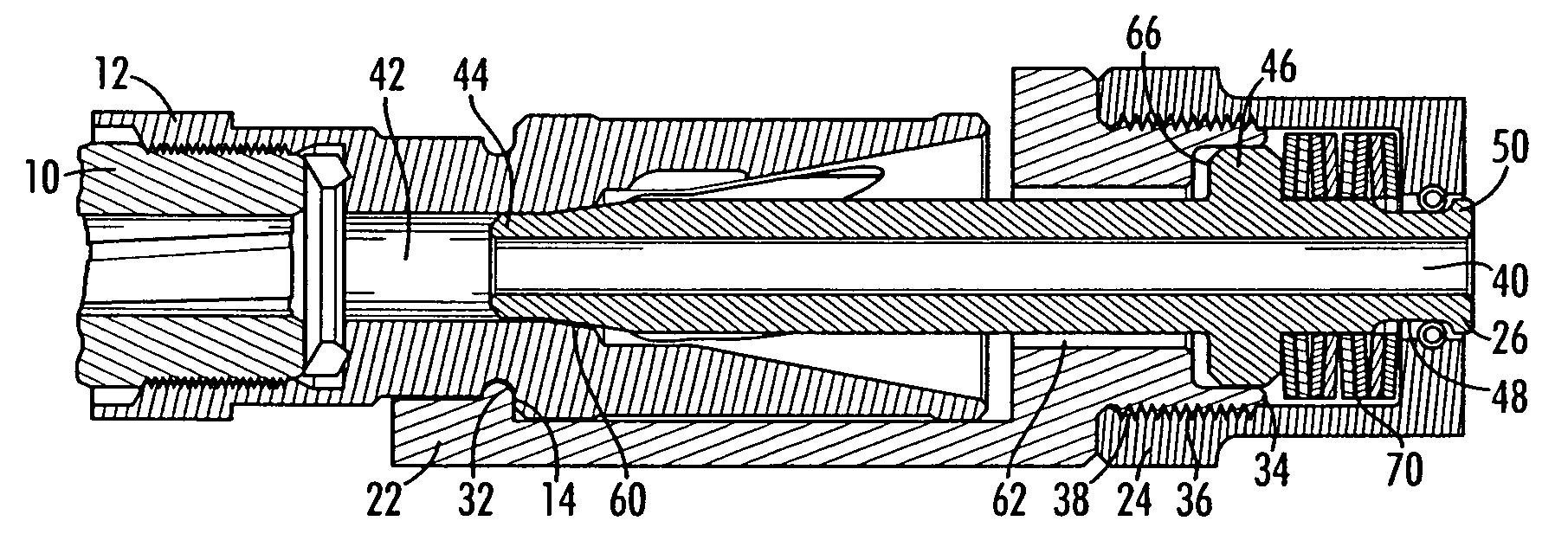

An adaptor for use with a flash suppressor on a gun barrel in order to allow the gun to repeatedly fire blank rounds of ammunition. The adaptor has a stem that chokes the flow of gases from an exploding round in order to create a back pressure. A body is used to couple the stem to the flash suppressor and permit a cap to be threaded to the body. The cap urges the stem into the throat of the flash suppressor when tightened to the body while the body grips the flash suppressor to hold the stem and cap in place. Belleville washers in the cap pre-loaded and urge the stem into the throat and hold it there securely during repeating firing of the gun.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2003 Application Filing Year
- F41A Class
- 202 Applications Filed
- 71 Patents Issued To-Date
- 35.15 % Issued To-Date
