Scanning unit for an optical position measuring device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 15, 2005
Grant Date -
Mar 11, 2004
app pub date -
Apr 14, 2001
filing date -
Apr 28, 2000
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

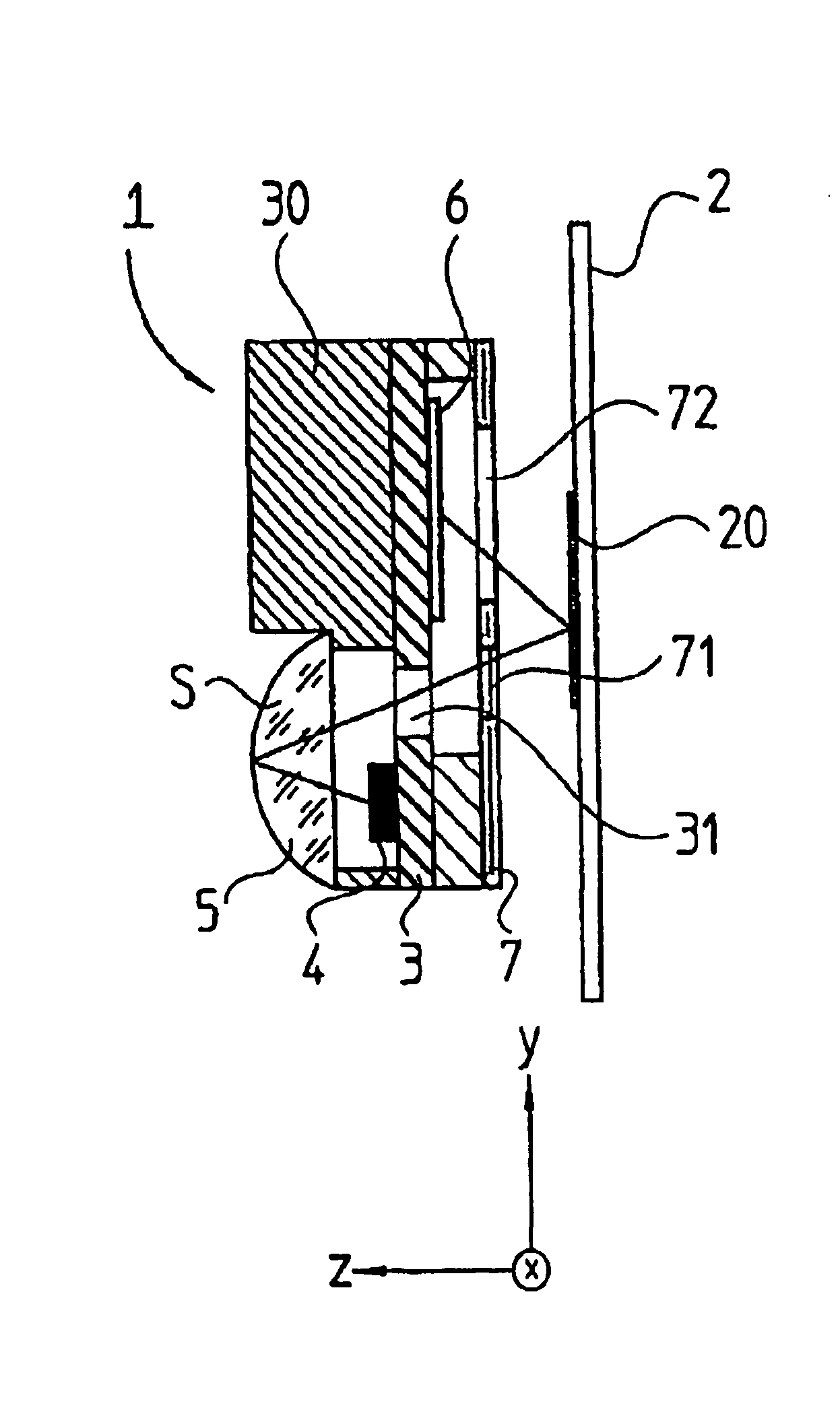

A scanning unit for an optical position measuring device for scanning a periodic strip pattern in a detector plane, the scanning unit including a detector arrangement including a first detector array with a first set of several radiation-sensitive detector elements, which are arranged next to each other in a first direction on a common support substrate and a second detector array including a second set of several radiation-sensitive detector elements arranged adjacent to the first detector array in a second direction perpendicular with respect to the first direction a detection plane. The second set of several radiation-sensitive detector elements are arranged next to each other in the first direction with a common period PDET, and have a geometrically defined offset (Δx1i) in the first direction with respect to the first set of several radiation-sensitive detector elements.
