Omni-directional optical code reader using scheimpflug optics
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 8, 2005
Grant Date -
Apr 8, 2004
app pub date -
Sep 10, 2003
filing date -
Jun 21, 2001
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

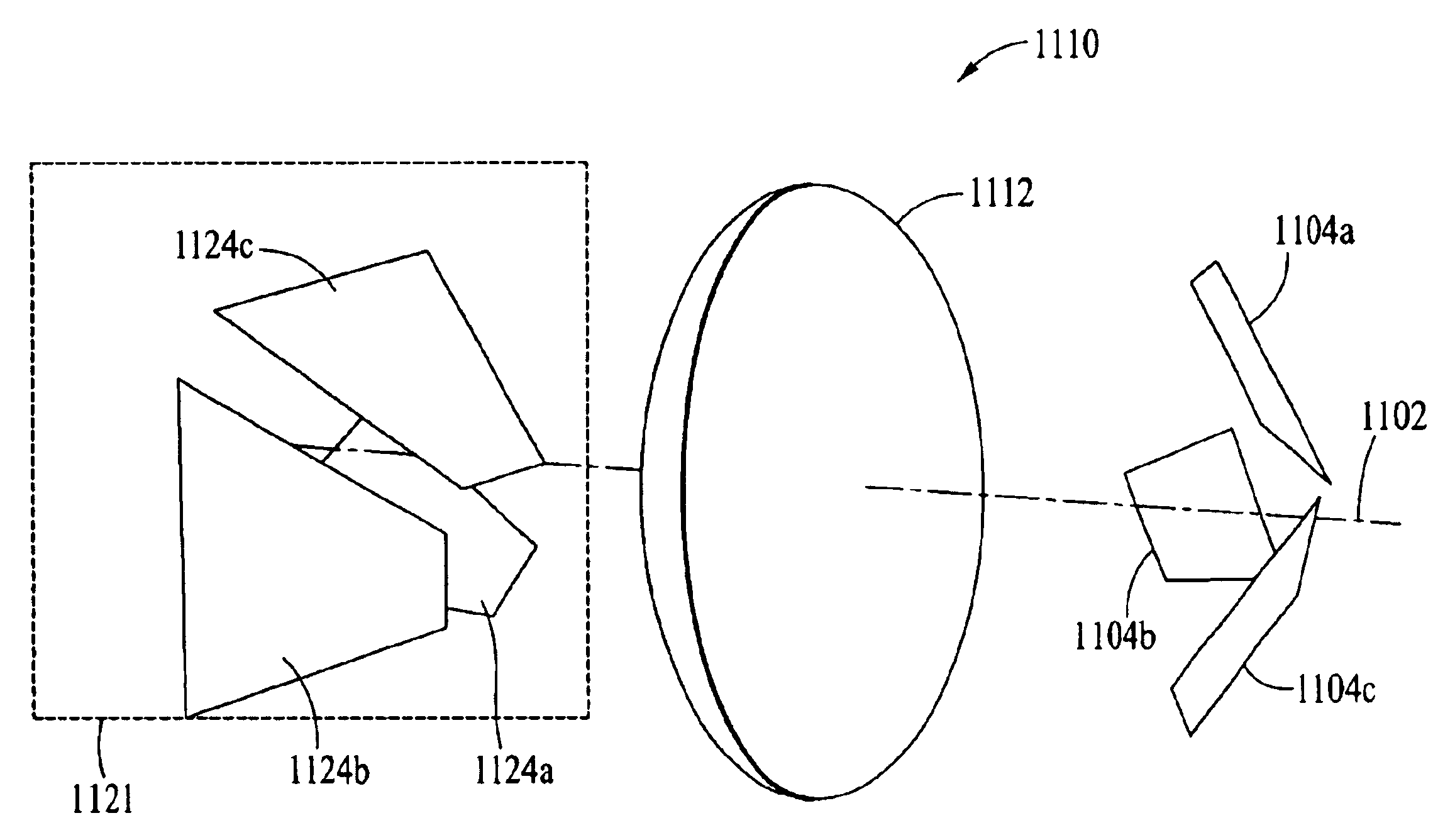

An optical code reader for reading optical codes in any orientation with a preferred depth of field (DOF), the optical code reader including imaging sensor arrays arranged at angles to one another and tilted in accordance with the Scheimpflug principle to allow for omni-directional reading and a preferred DOF. In addition, an optical code reader may also include an optical device to rotate an image as it is projected upon a stationary tilted image sensor array. Still further, an optical code reader may include a rotating imaging sensor array tilted in accordance with the Scheimpflug principle to allow for omni-directional reading with a preferred DOF.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| US | B2 | US6621063 | Jun 21, 2001 |
| WO | A1 | WO2003001434 | May 30, 2002 |
| EP | B1 | EP1397773 | May 30, 2002 |
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 17 Citation Count
- G06K Class
- 29.04 % this patent is cited more than
- 20 Age
