Power transmission belt and a method of forming a power transmission belt
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 8, 2005
Grant Date -
Jan 22, 2004
app pub date -
Jul 14, 2003
filing date -
Apr 28, 2000
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

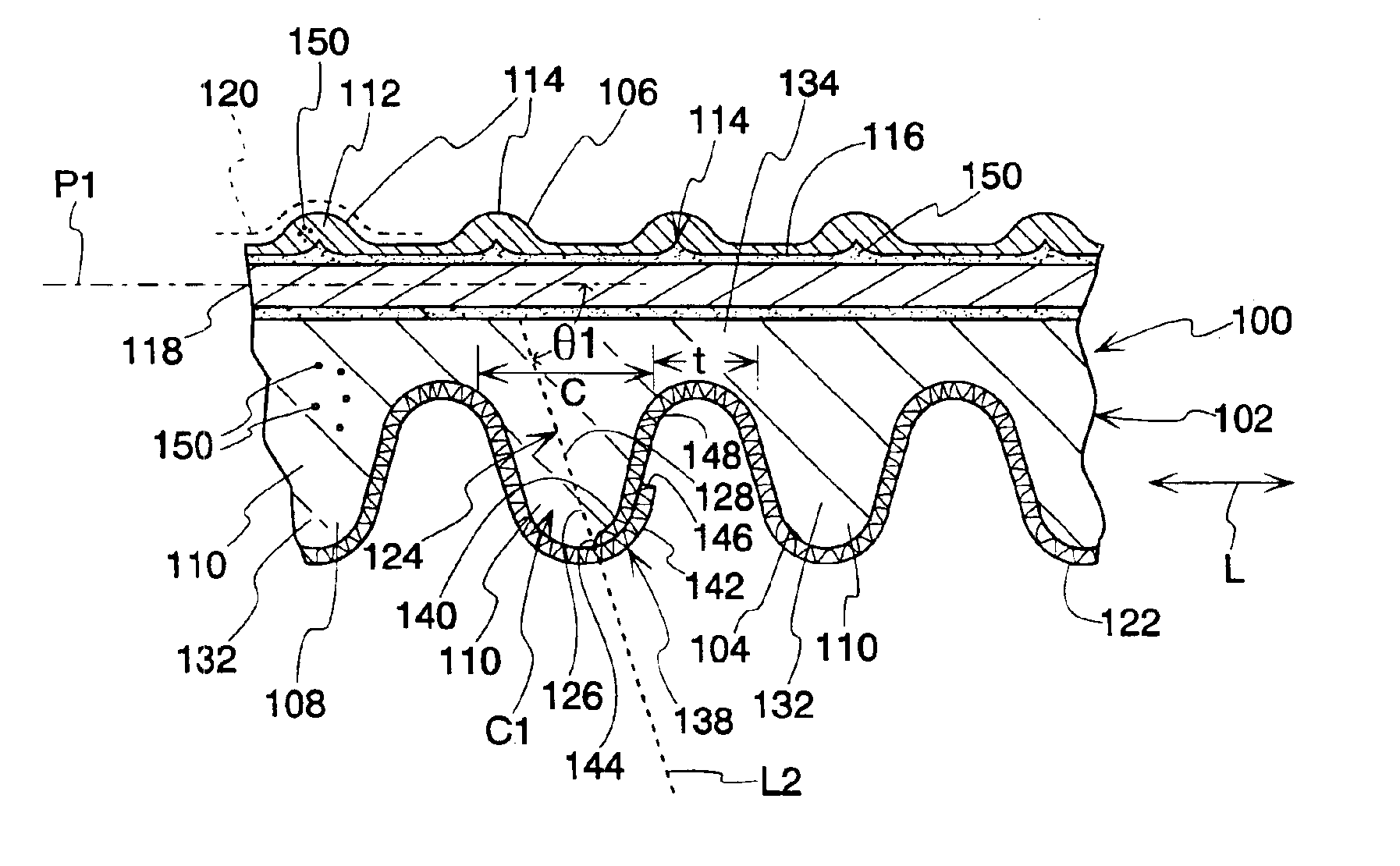

A power transmission belt having an endless body with a length, an inside, and an outside. The body has cogs on at least one of the inside and outside of the body and spaced along the length of the body so as to define alternating cog crests and cog troughs. The cog crests each have oppositely facing side surfaces with an apex between the oppositely facing side surfaces. There is a reinforcing fabric on the at least one of the inside and outside of the body. The reinforcing fabric has first and second spaced end portions with a first free end at the first end portion and a second free end at the second end portion. The first and second end portions overlap so that the first and second free ends are each at a side surface on a cog crest.
First Claim
Other Claims data not available
