Stator winding structure of a motor or a generator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 25, 2005
Grant Date -
Sep 1, 2005
app pub date -
Feb 27, 2004
filing date -
Feb 27, 2004
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

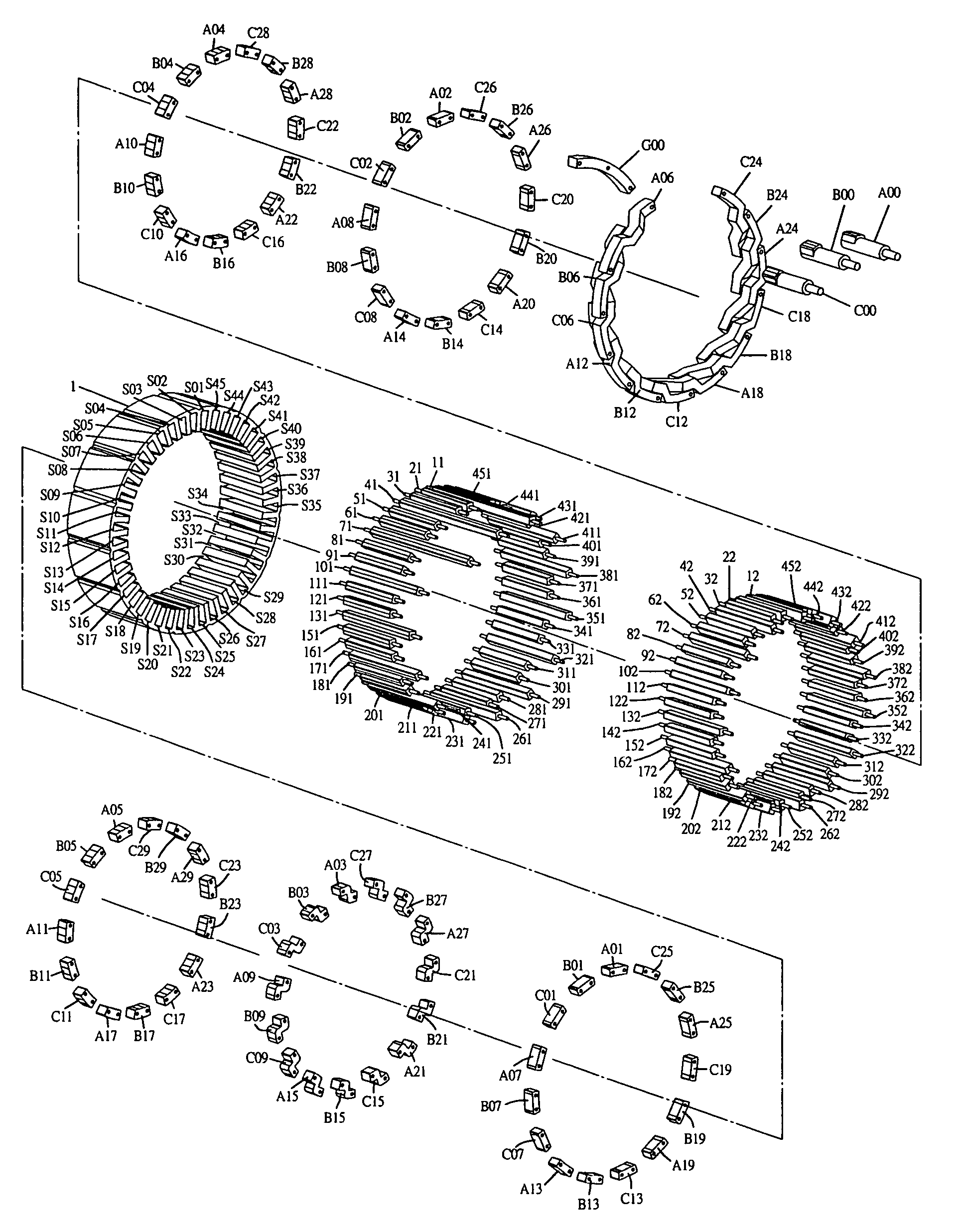

A stator winding structure of a motor or a generator includes plural separate different-shaped rod conductors combined to form a collective winding structure to take the place of a conventional winding structure which has a coil wire wound continuously. The different-shaped rod conductors can be designed in shape to match with the sizes of the coil slots to increase a slot occupied rate of the conductors and to prevent the conductors from bent during the coil winding process. The stator winding structure is especially applicable to a motor or a generator with large power and difficult in multi-electrode winding, facilitating winding and enhancing a slot occupied rate of the conductors and also reducing copper loss during output of large current.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 13 Citation Count
- H02K Class
- 47.09 % this patent is cited more than
- 20 Age
