Sectional door system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 4, 2005
Grant Date -
Oct 30, 2003
app pub date -
Apr 24, 2002
filing date -
Apr 24, 2002
priority date (Note) -
Expired
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

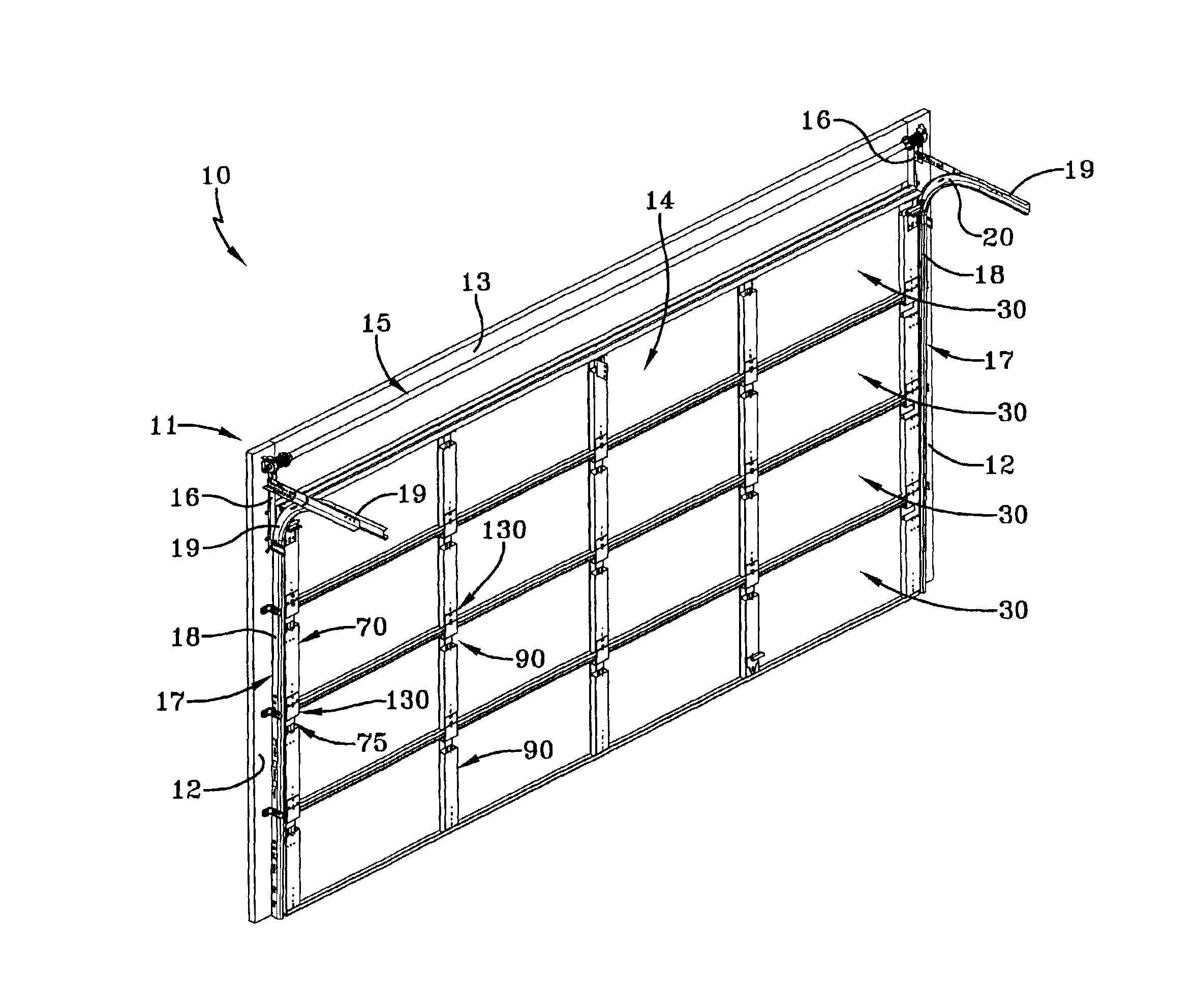

A sectional door including, a plurality of panels pivotally joined to each other, the panels including a facer having a front surface, a first joint member and a second joint member extending rearwardly of the facer, a pair of end stiles received at lateral extremities of the panels and placed in supporting relation thereto, the stiles having a recess adjacent one of the joint member, a hinge receiver located adjacent the recess and a hinge pivotally coupled to one of the panels at the hinge receiver and fastened to another of the panels at the end stile, wherein the recess provides a clearance for pivoting movement of the hinge and the storage or stowage of door components.
First Claim
Other Claims data not available
