Methods to make diffractive optical elements
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 20, 2005
Grant Date -
Mar 24, 2005
app pub date -
Sep 19, 2003
filing date -
Sep 19, 2003
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

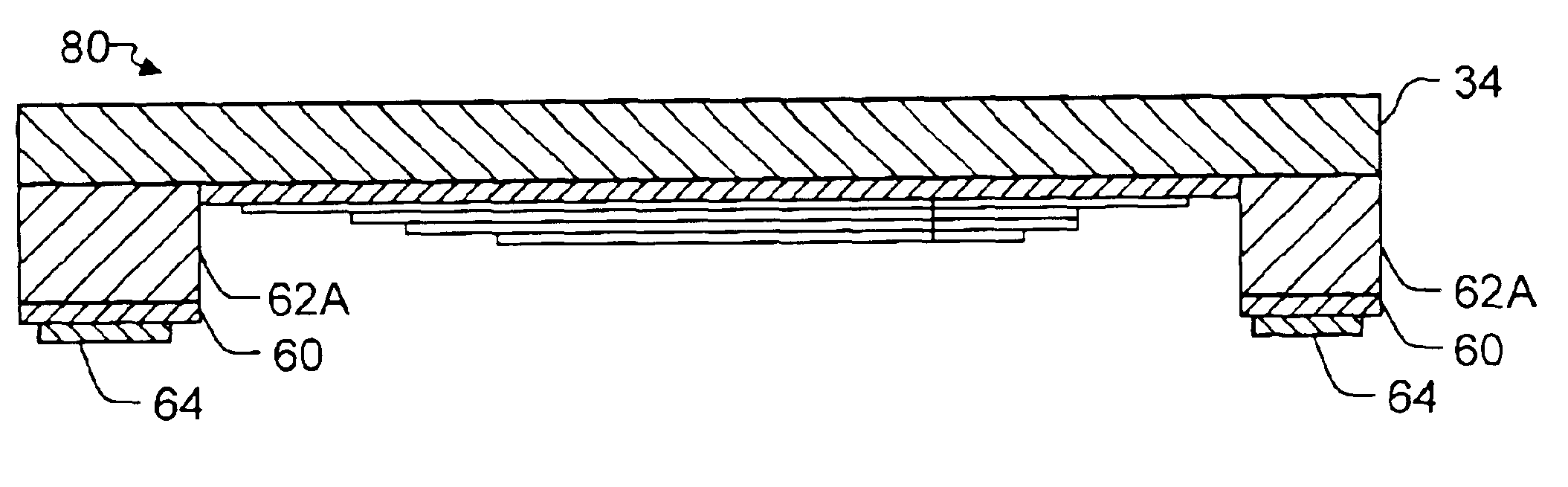

A method for forming a diffractive lens includes forming an etch stop layer on a first surface of a silicon substrate, forming a diffractive optical element above the etch stop layer, forming a planarization layer covering the diffractive optical element, planarizing the planarization layer, forming a bonding layer on the planarization layer, bonding a transparent substrate on the bonding layer, and etching a second surface of the silicon substrate to the etch stop layer to remove a portion of the silicon substrate opposite the diffractive optical element, wherein the remaining portion of the silicon substrate forms a bonding ring.
First Claim
Other Claims data not available
