Machining unit for a program-controlled milling and drilling machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 20, 2005
Grant Date -
Jul 15, 2004
app pub date -
Nov 3, 2003
filing date -
Nov 4, 2002
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

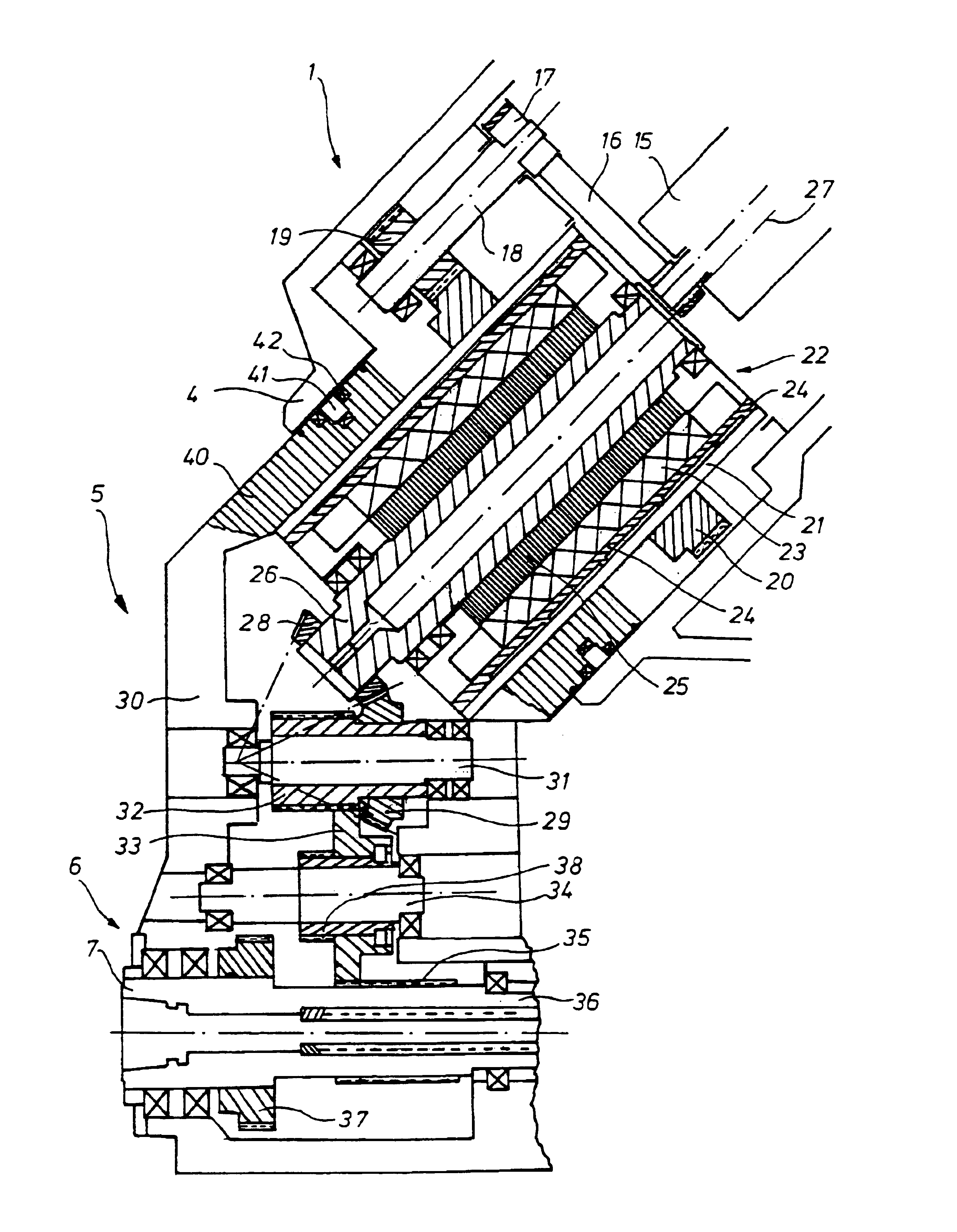

A machining unit for a program-controlled milling and drilling machine. A head support movable in several coordinate axes has an axis of rotation pointing forward and downward at a 45° angle. A swivel head arranged on a front side of the head support is rotatable about the axis of rotation. A spindle nose is fixedly mounted on the swivel head and has a working spindle with an axis extending at an angle of 45° relative to the axis of rotation. A spindle motor is aligned coaxially with the axis of rotation and a bevel gear arranged in the swivel head for the motor shaft. The swivel head has a cylindrical hollow housing member coaxial with the axis of rotation and in which the spindle motor is mounted. The head support has a housing neck in which the housing member of the swivel head is rotatably supported.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2003 Application Filing Year
- B23P Class
- 873 Applications Filed
- 287 Patents Issued To-Date
- 32.88 % Issued To-Date
