Lens barrel and image taking apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 13, 2005
Grant Date -
Jan 6, 2005
app pub date -
May 13, 2004
filing date -
May 15, 2003
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

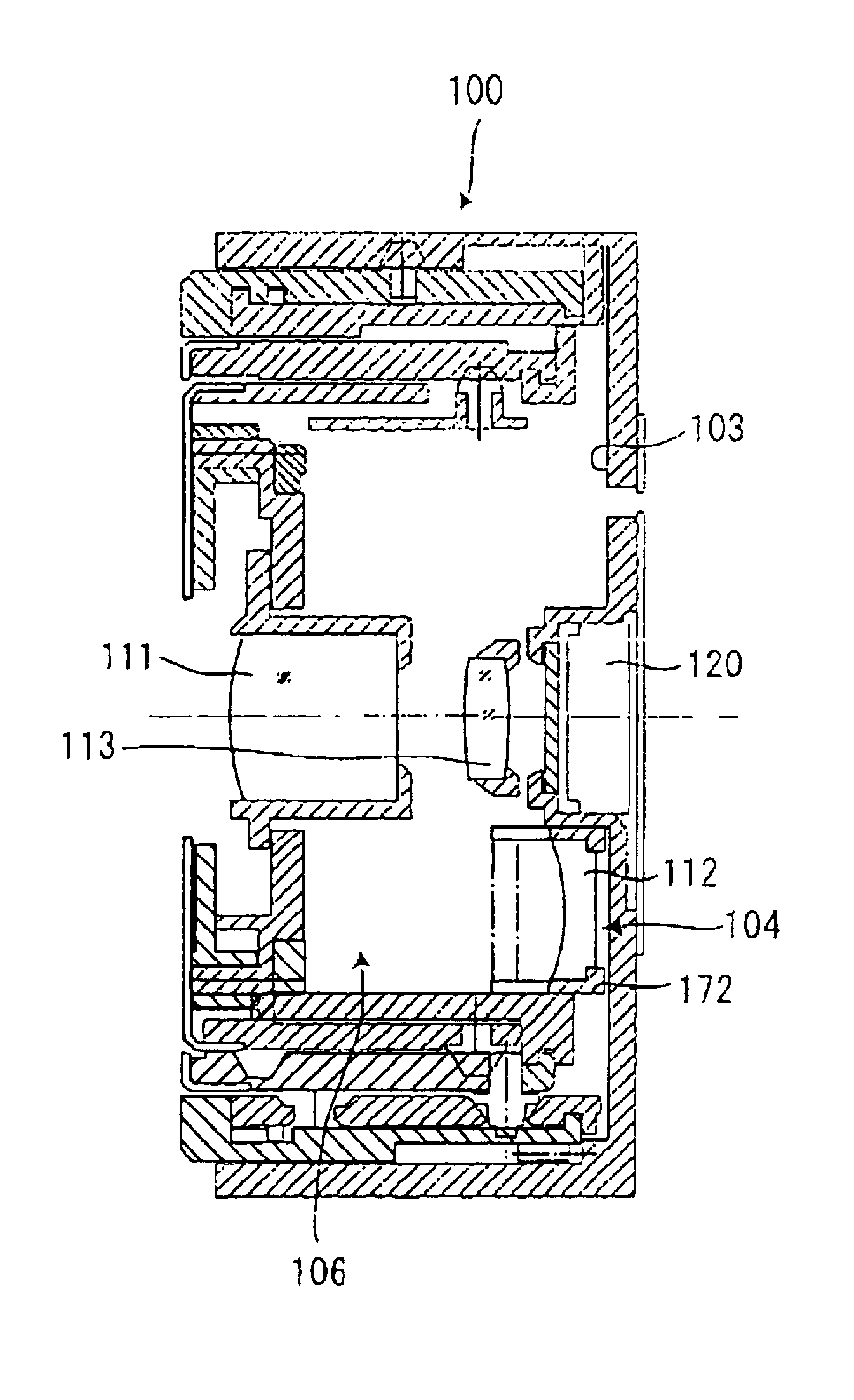

An image taking apparatus of the present invention includes: a shooting lens which comprises a plurality of lens groups and which has a variable focal length and adjusts a focus; and a lens barrel which accommodates the shooting lens and which can advance and retract. The lens barrel comprises a lens advancing/retracting mechanism which retracts at least one of the lens groups from a shooting optical axis when the lens barrel is retracted, and which advances the lens group retracted when the lens barrel is retracted to the shooting optical axis when the lens barrel advances. The shooting lens forms a fixed focus shooting optical system by the remaining lens group among the plurality of lens groups excluding the lens group which is retracted from the shooting optical axis.
First Claim
Other Claims data not available
Family
