Electrically-operated steering lock device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 13, 2005
Grant Date -
Apr 15, 2004
app pub date -
Oct 3, 2003
filing date -
Oct 4, 2002
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

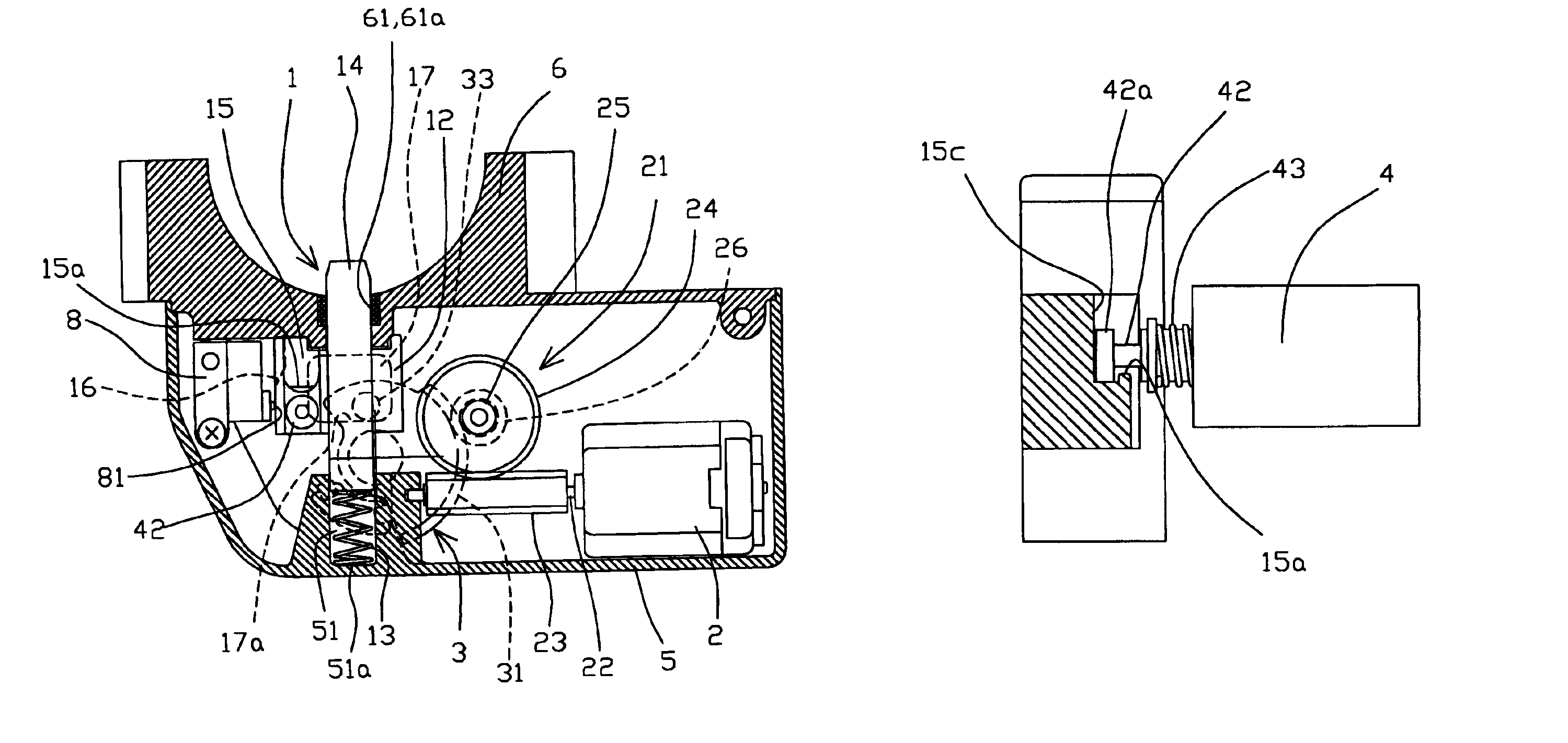

An electrically-operated steering lock device includes a protrusion blocking mechanism that blocks protrusion of a lock shaft of a solenoid or the like, and is arranged to prevent malfunctions of the protrusion blocking mechanism even if current is passed through the protrusion blocking mechanism during running of the vehicle. A lock shaft is movable between a protrusion position where a steering shaft is locked and a retracted position where the steering shaft is unlocked, and a lock shaft moving mechanism is coupled to an electric motor and serves to move the lock shaft. The protrusion blocking mechanism is electrically driven and, when the lock shaft is placed at a retracted position, engages with an engagement portion formed in the lock shaft to block protrusion of the lock shaft. A holding device holds the protrusion blocking mechanism in a position where protrusion of the lock shaft is blocked.
First Claim
Other Claims data not available
