Wood burner with improved emissions

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 6935333
SERIAL NO

10741770

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Calculated Rating
US Family Size
Non-US Coverage
Patent Longevity
    Expired
Forward Citations

Abstract

See full text

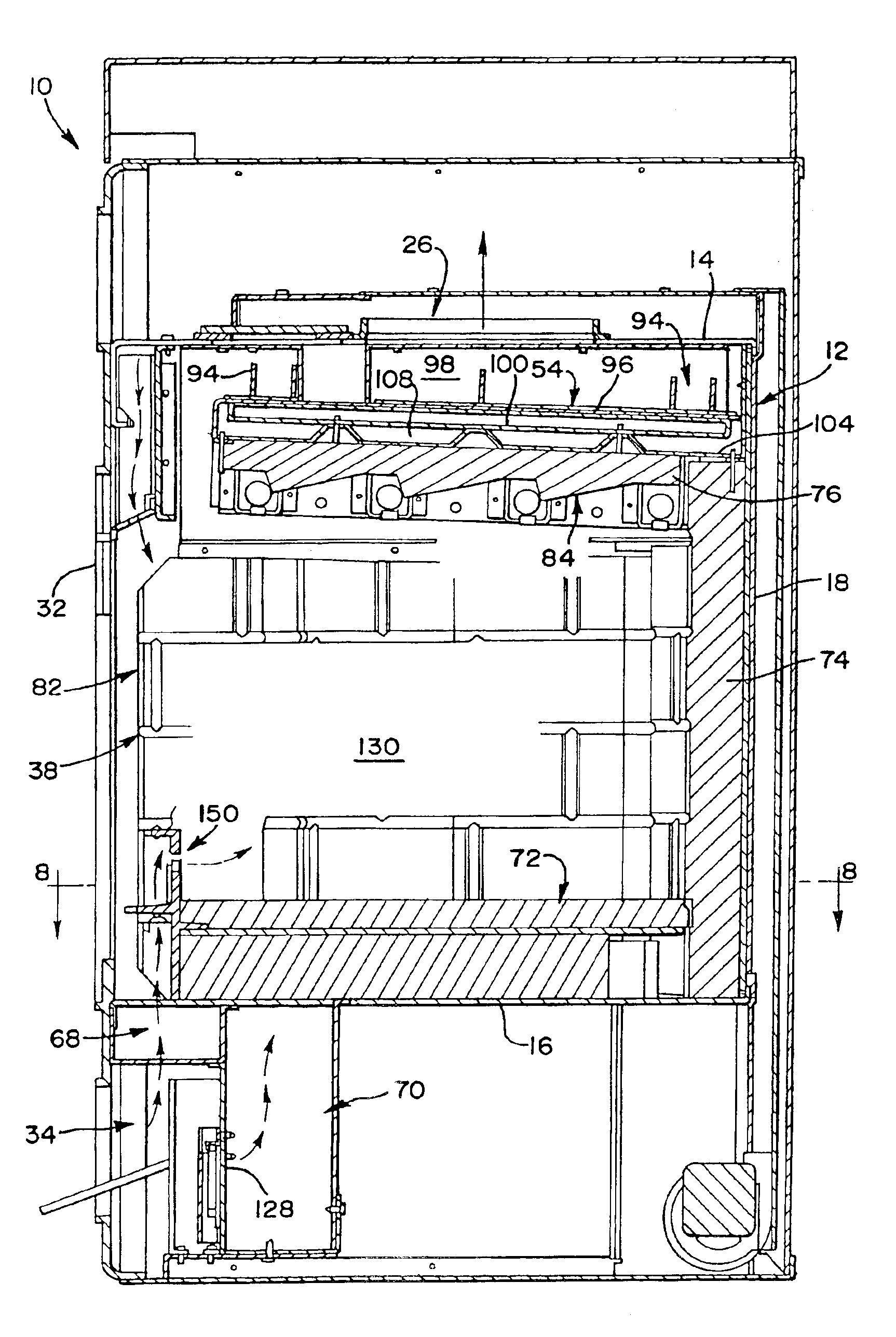

A wood burner includes a wrapper. A firebox is positioned in the wrapper that defines a combustion chamber. An air inlet is placed in communication with an external air supply. The air inlet includes a conduit to conduct the external air to the combustion chamber and a second conduit. A manifold is positioned above the firebox. The manifold is in communication with the second conduit, and includes one or more manifold chambers for permitting the external air received thereby to become heated. A plurality of air tubes connect to the manifold to receive the heated external air from the manifold, each plurality of air tubes including a plurality of apertures to direct the heated external air into the combustion chamber adjacent an upper inner surface of the firebox.

First Claim

See full text

Other Claims data not available

Family

PCTEP
+

Patent Owner(s)

Patent OwnerAddress
MONESSEN HEARTH SYSTEMS COMPANY149 CLEVELAND DRIVE PARIS KY 40361

International Classification(s)

loading....
  • 2003 Application Filing Year
  • F24B Class
  • 52 Applications Filed
  • 13 Patents Issued To-Date
  • 25 % Issued To-Date
Click to zoom InYear of Issuance% of Matters IssuedCumulative IssuancesYearly Issuances200320042005200620072008200920100255075100

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Buzzard, Robert H Warren, IN 4 15
Morrison, Ralph E South Royalton, VT 4 11

Cited Art Landscape

Load Citation

Patent Citation Ranking

  • 2 Citation Count
  • F24B Class
  • 4.17 % this patent is cited more than
  • 20 Age
Citation count rangeNumber of patents cited in rangeNumber of patents cited in various citation count ranges1147201 - 1011 - 2031 - 400123456789101112131415
