Method of driving a servo motor with a built-in drive circuit
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 23, 2005
Grant Date -
Sep 16, 2004
app pub date -
Nov 10, 2003
filing date -
Mar 6, 2003
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

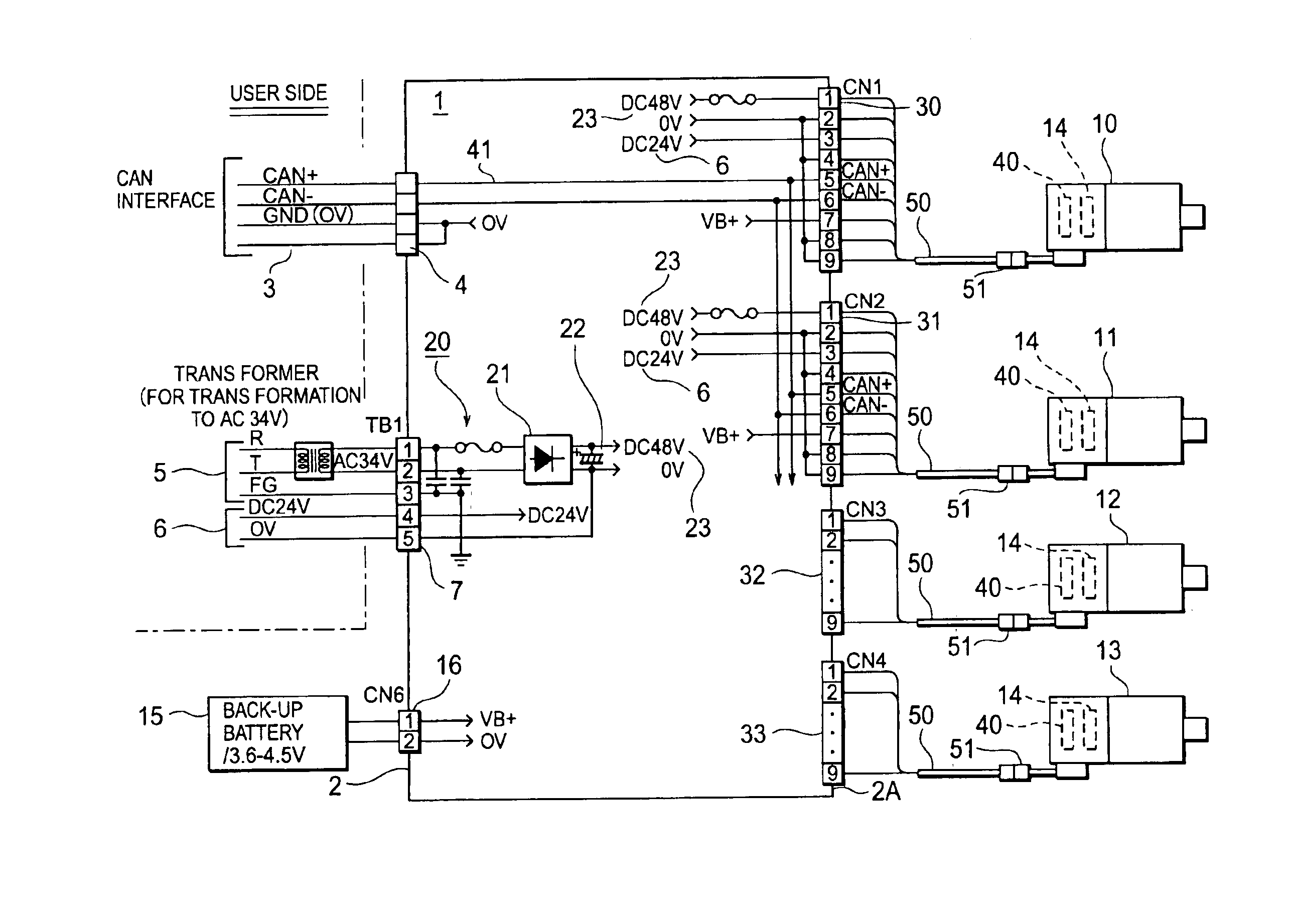

Disclosed is a method of driving a servo motor with a built-in drive circuit in which a common rectifying circuit is provided on a distribution board to which a plurality of the servo motors with built-in drive circuits are connected, to thereby achieve a reduction in size of each servo motor. In this method, there is used a common distribution board for distributing power to be supplied to a plurality of servo motors with built-in drive circuits and for distributing a communication line, an external communication signal and external input power are supplied through the distribution board.
First Claim
Other Claims data not available
Family
Loading Family data...
