Support arm assembly for a safe lid
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 23, 2005
Grant Date -
May 27, 2004
app pub date -
Nov 26, 2002
filing date -
Nov 26, 2002
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

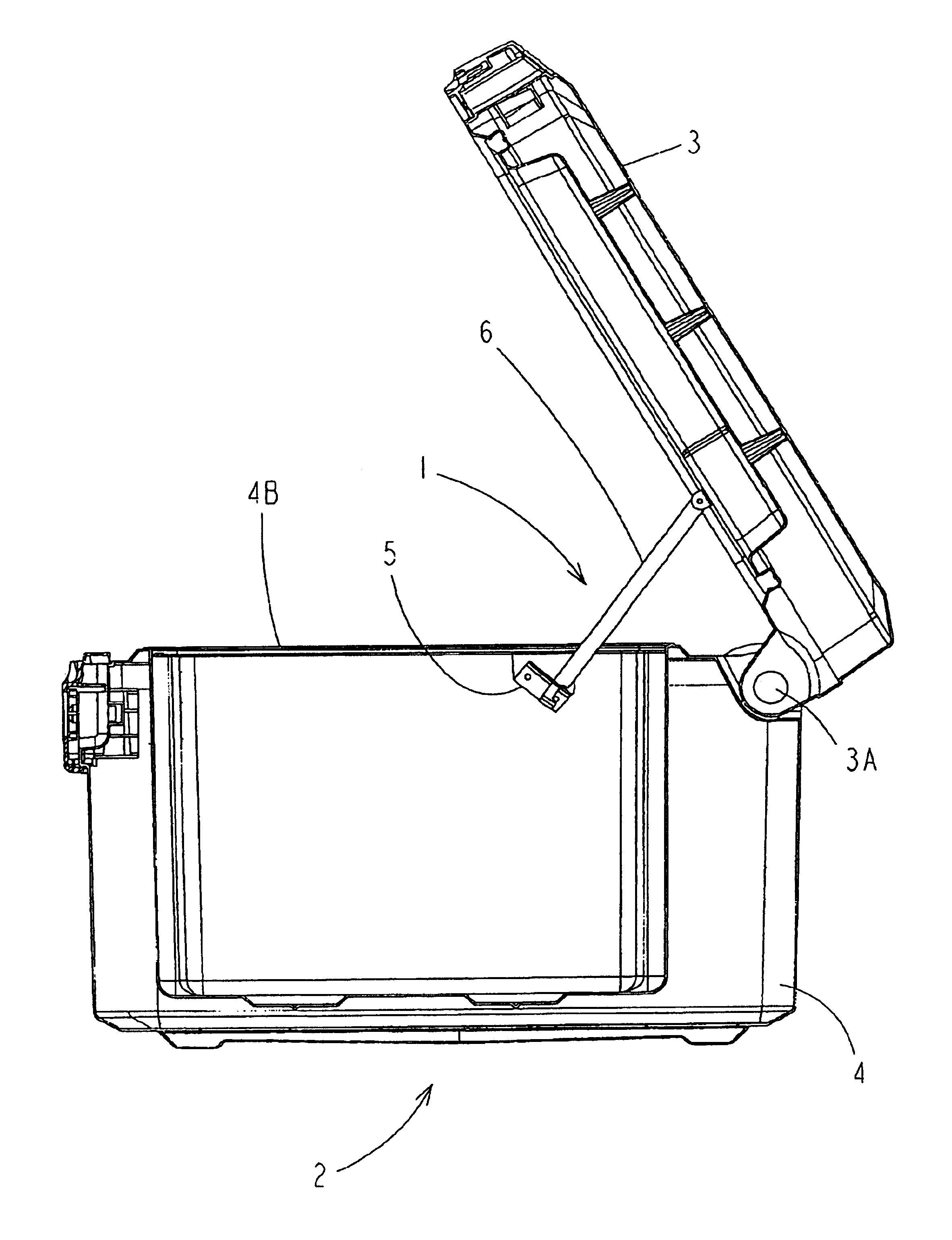

This support arm assembly for connection between a safe's lid and base includes a bracket for connection to the base and a linear support arm that connects between the bracket and lid. The bracket includes a side face adapted for connection to the inside of the base. An upward facing side of the bracket includes a linear slot that is parallel to the side of the safe when the bracket is mounted. The support arm has a generally flat planar configuration that is adapted for placement through the slot transverse to the upward facing side of the bracket. The support arm has an upper end pivotally connected to the lid and a lower end having a bend that prevents it from being withdrawn from the slot. The lower end also has an abrupt notch adjacent the bend that is adapted to interlock with the slot to hold the lid open.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2002 Application Filing Year
- E05C Class
- 216 Applications Filed
- 92 Patents Issued To-Date
- 42.60 % Issued To-Date
