Human waste management suit
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 26, 2005
Grant Date -
Apr 14, 2005
app pub date -
Jun 21, 2003
filing date -
Jun 21, 2003
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

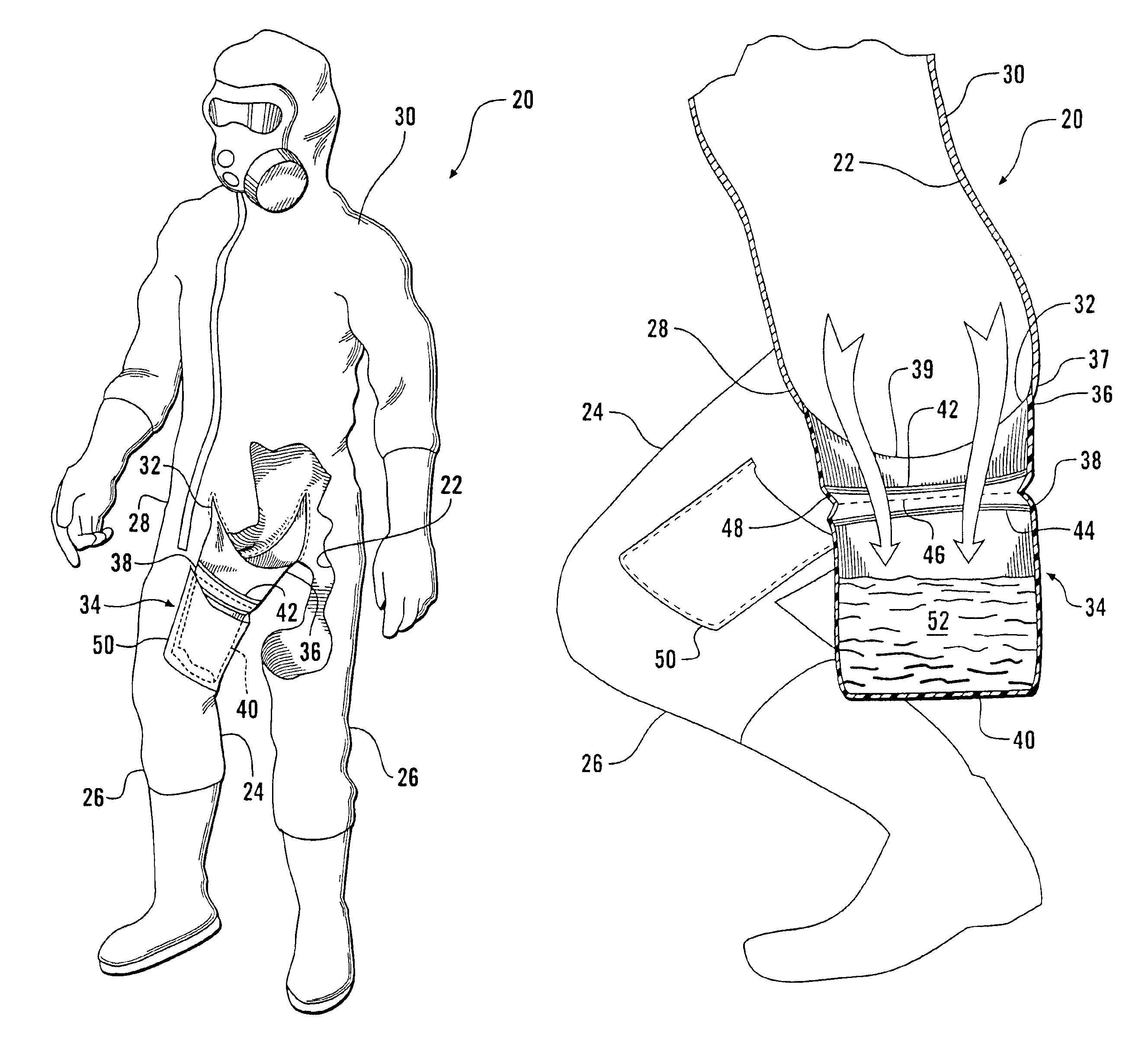

A chemical/biological hazard protection suit has two pants legs which extend to a midsection below waist level. An opening in the midsection defines an outlet from the suit interior. A waste collector has an upper segment which is fixed to the midsection and which adjoins an intermediate segment which is in turn connected to a waste receptacle. A first seal is between the upper segment and the intermediate segment, and a second seal is between the intermediate segment and the waste receptacle. A region of weakened material encircles the intermediate segment between the seals. A wearer discharges waste through the outlet and past the two open seals into the receptacle, whereupon both seals are closed, and the receptacle is detached from the upper segment, leaving both the receptacle and the suit sealed. Prior to use, the waste receptacle may be retained within a pocket on one of the pants legs.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2003 Application Filing Year
- A62B Class
- 376 Applications Filed
- 134 Patents Issued To-Date
- 35.64 % Issued To-Date
