Multipoint lock assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 21, 2005
Grant Date -
Dec 4, 2003
app pub date -
May 30, 2003
filing date -
May 31, 2002
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

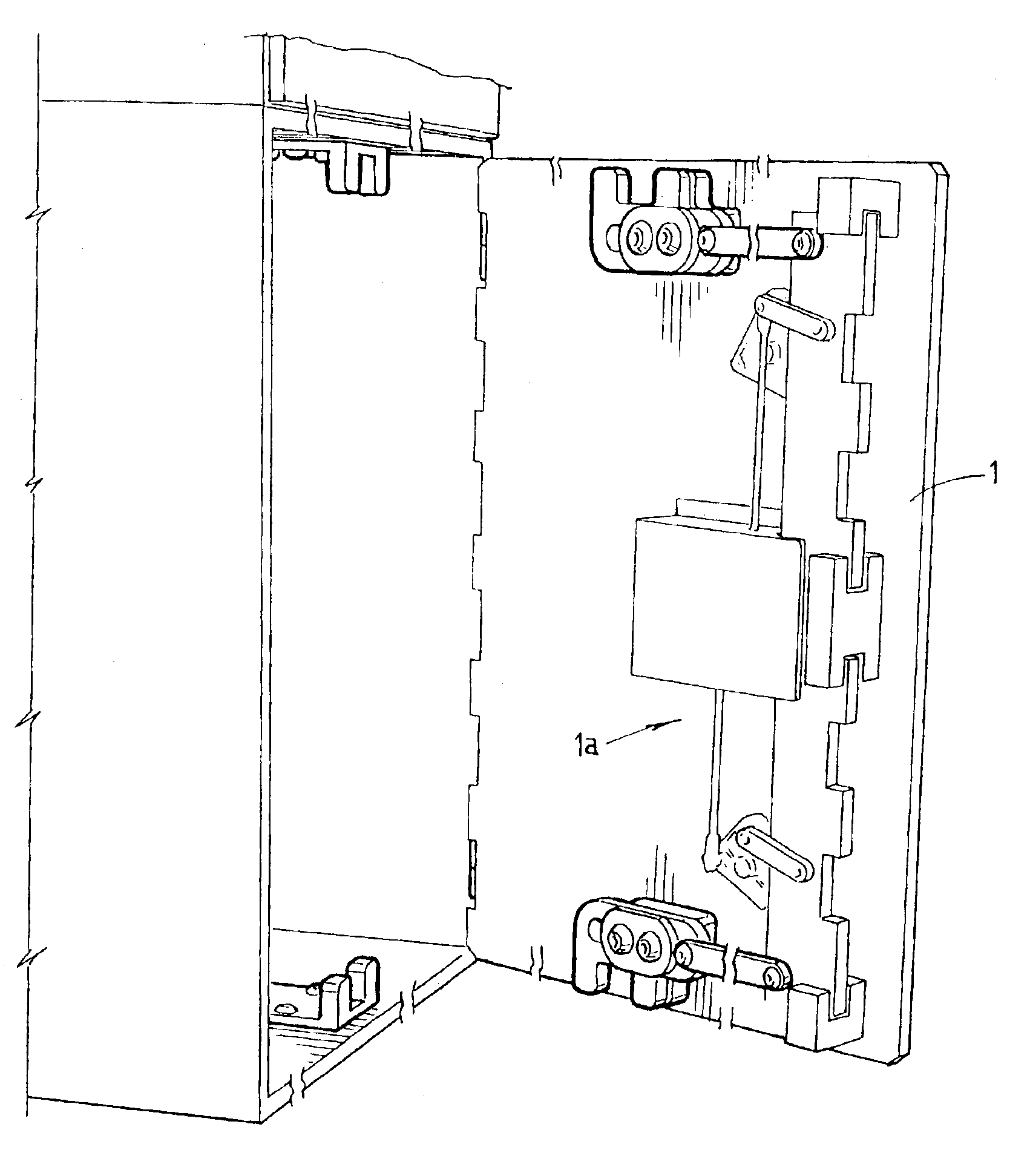

An enclosure lock comprises at least one keeper 2 and latch 5. The keeper is mounted to an interior of the enclosure body 18. The latch is mounted to the interior side of the enclosure door 1. The keeper includes spaced projecting lugs 3 having an aperture 4 therebetween. The latch includes a mount 6 having a projecting lug 7 and a slidable bolt 8. The bolt includes spaced projecting lugs 12 having an aperture 13 therebetween. The bolt can slide between door locking and unlocking positions. When the door is closed, the mount lug 7 is positioned within the keeper aperture 4. The bolt lugs 12 can then be slid to the locking position behind the keeper lugs 3 to lock the door to the enclosure body. The locking arrangement prevents the door from being opened by rotating the door or by laterally sliding the door.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2003 Application Filing Year
- G07G Class
- 16 Applications Filed
- 8 Patents Issued To-Date
- 50 % Issued To-Date
