Trailer line routing
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 7, 2005
Grant Date -
Aug 26, 2004
app pub date -
Feb 24, 2003
filing date -
Feb 24, 2003
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

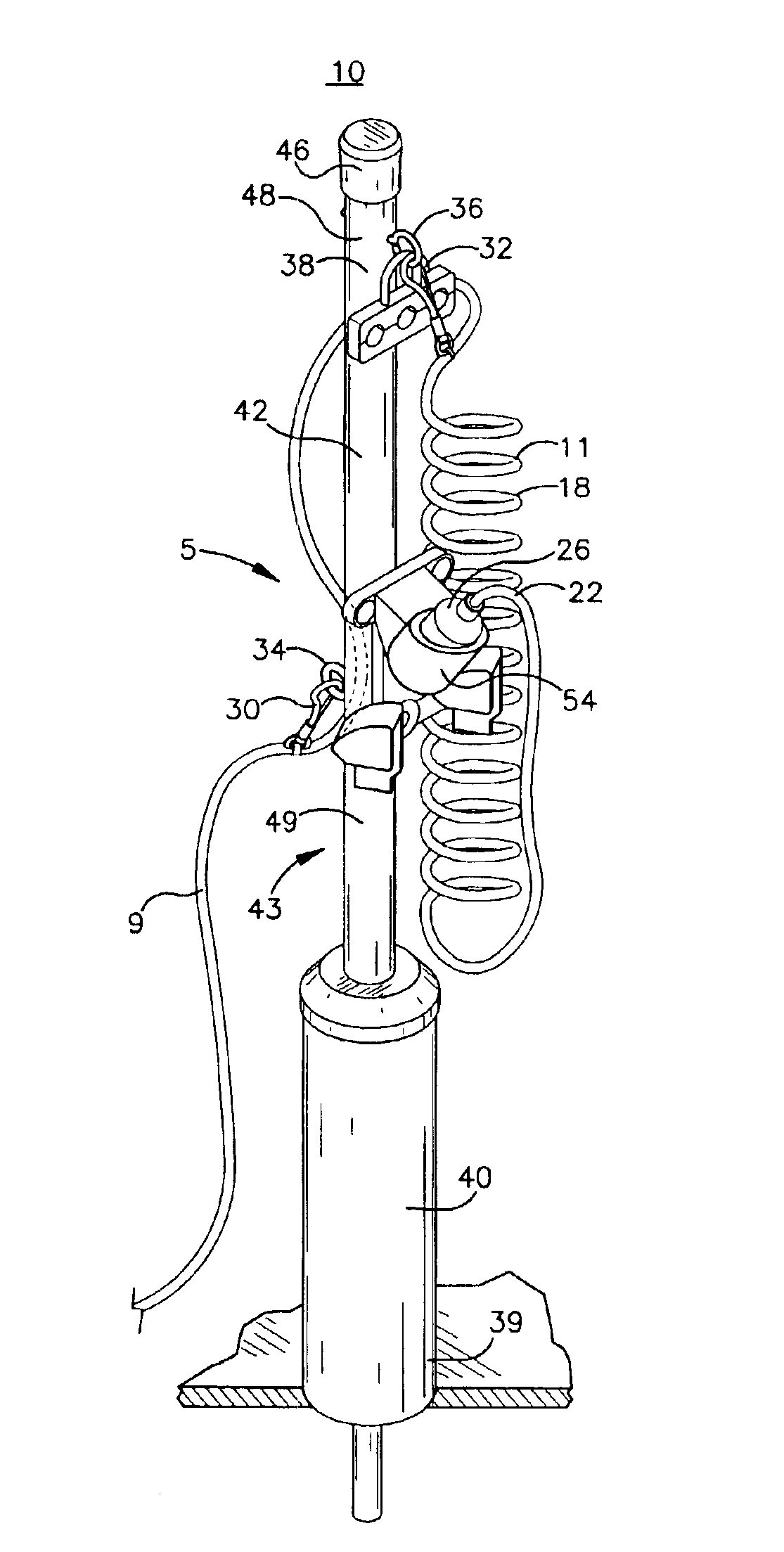

A system for routing an elongated line of an over the highway tractor having a connector for powering a component of a trailer. An elongated line, such as an electrical cable or an air hose, has a first mating connector that mates with a connector on the tractor that provides access to a source of air under pressure or electrical energy. The elongated line also includes a second mating connector that mates with a connector on a trailer. First and second releasable hooks are connected to the elongated line along the length of the line. The first and second hooks are secured to mounting points on the tractor to properly route the cable when the second connector is connected to the trailer and when the second connector is not connected to the trailer.
First Claim
Other Claims data not available
