FOLDING COLLAPSIBLE STAND FOR TABLE SAW
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 31, 2005
Grant Date -
Jun 23, 2005
app pub date -
Mar 16, 2004
filing date -
Dec 17, 2003
priority date (Note) -
Granted
status (Latency Note)
Importance
Abstract

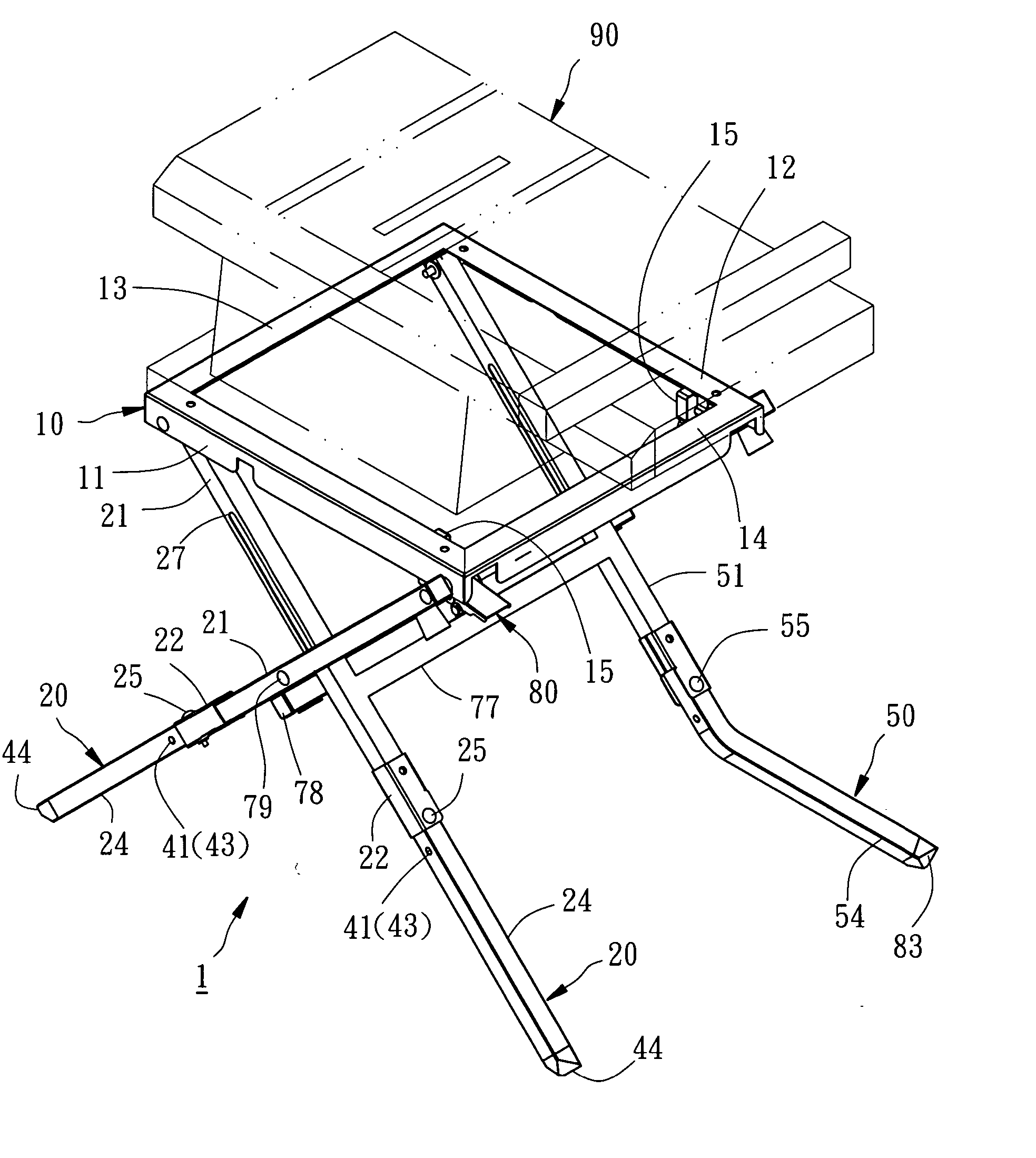

A folding collapsible stand for supporting a table saw includes a rectangular top frame and a plurality of folding collapsible legs respectively pivoted to the top frame and respectively formed of a top tube, a bottom tube, a connector, and a pivot. The connector is mounted in the bottom tube, having a top stop device and two bottom extension strips. The bottom extension strips each have a knob that is engaged into a locating hole in the bottom tube to hold the top tube and the bottom tube in straight when the respective folding collapsible leg is extended out. Pressing the knob of each bottom extension strip away from the locating hole of the bottom tube allows the bottom tube to be turned relative to the top tube to a collapsed position.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 8 Citation Count
- B01D Class
- 3.72 % this patent is cited more than
- 20 Age
