Electrically actuated blow-moulding machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 26, 2005
Grant Date -
Apr 24, 2003
app pub date -
Oct 2, 2002
filing date -
Oct 24, 2001
priority date (Note) -
Expired
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

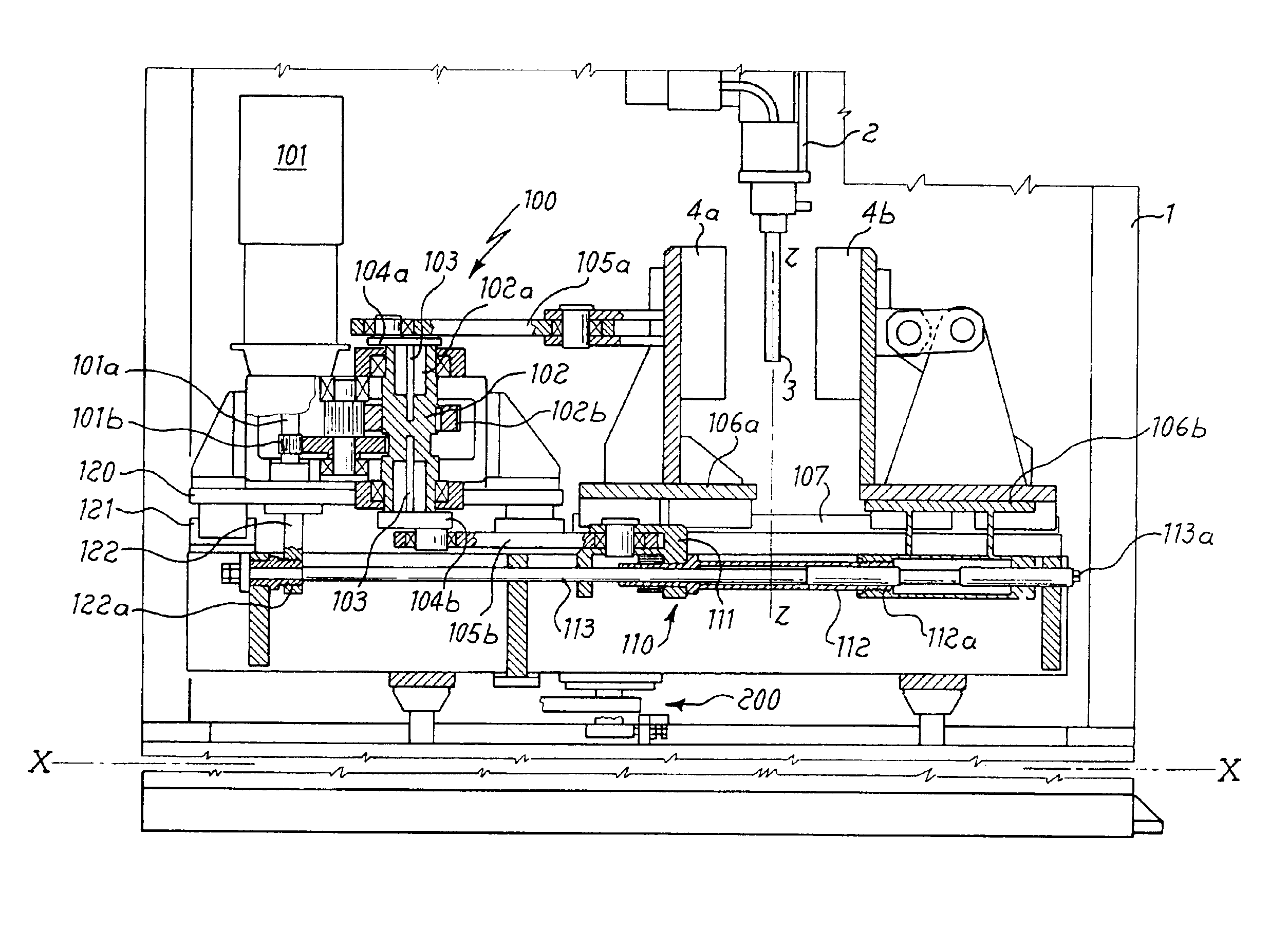

Machine for moulding containers (3a) made of plastic material, comprising an assembly (2) for extruding tubes (3) of plastic material, a blowing assembly (5), a mould for containing containers (3a), formed by two half-moulds (4a, 4b) movable upon actuation of associated first means (100), in a longitudinal direction (X--X) and symmetrically with respect to a fixed axis (Z--Z) perpendicular to said longitudinal direction, the assembly formed by the mould (4) and the associated first actuating means (100) being movable, upon actuation of second actuating means (200), in a transverse direction (Y--Y) from a position corresponding to the extrusion assembly to a position corresponding to the blowing assembly and vice versa, wherein said first means for actuation in the longitudinal direction are of the electric type and means (110) for symmetrically adjusting the distance of the two half-moulds (4a, 4b) from said fixed axis (Z--Z) are provided.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B29C Class
- 4.14 % this patent is cited more than
- 20 Age
