Drive arrangement for a motor vehicle roof element which can be swiveled into a stowage space in the vehicle for deposition
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 5, 2005
Grant Date -
Sep 12, 2002
app pub date -
Feb 26, 2002
filing date -
Mar 1, 2001
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

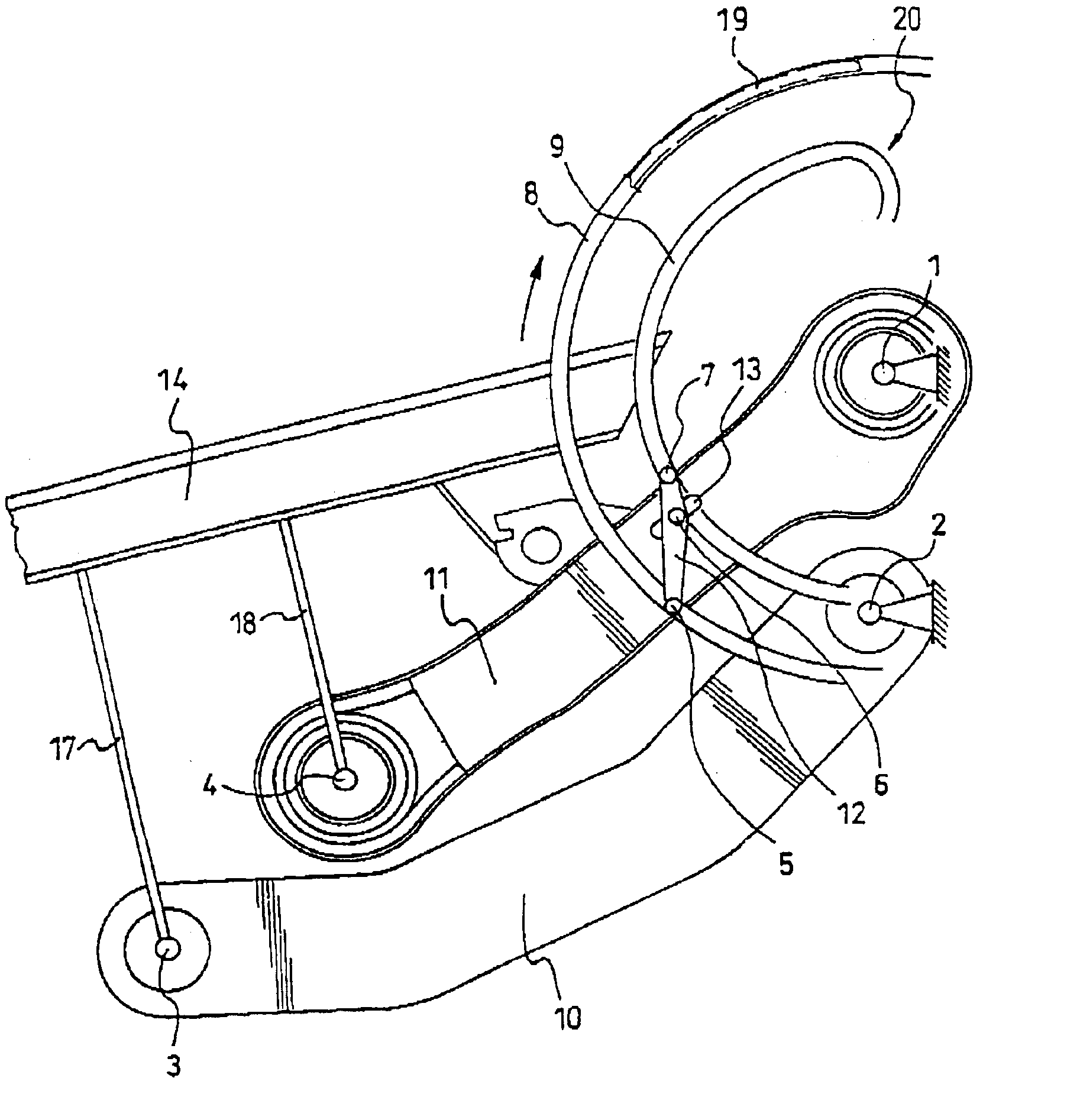

A drive arrangement for a motor vehicle roof with a movable roof part (14) which is connected to a carrier element (11, 111, 225) which can be displaced by a drive element (5, 19, 220) along a given path of motion (8, 219), the drive element (5, 19, 220) engaging a intermediate pivot lever (12, 112, 221) which applies the drive force applied by the drive element (5, 19, 220) via a driver (6, 244) to the carrier element (11, 111, 225) depending on the pivot position of the intermediate lever (12, 112, 221), and the drive arrangement is constructed such that the pivot position of the intermediate lever (12, 112, 221) is determined by the position of the carrier element (11, 111, 225) along the path of motion (8, 219).
First Claim
Other Claims data not available
Family
