Integrated heat exchanger
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 5, 2005
Grant Date -
Apr 15, 2004
app pub date -
Apr 29, 2003
filing date -
Aug 4, 2000
priority date (Note) -
Expired
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

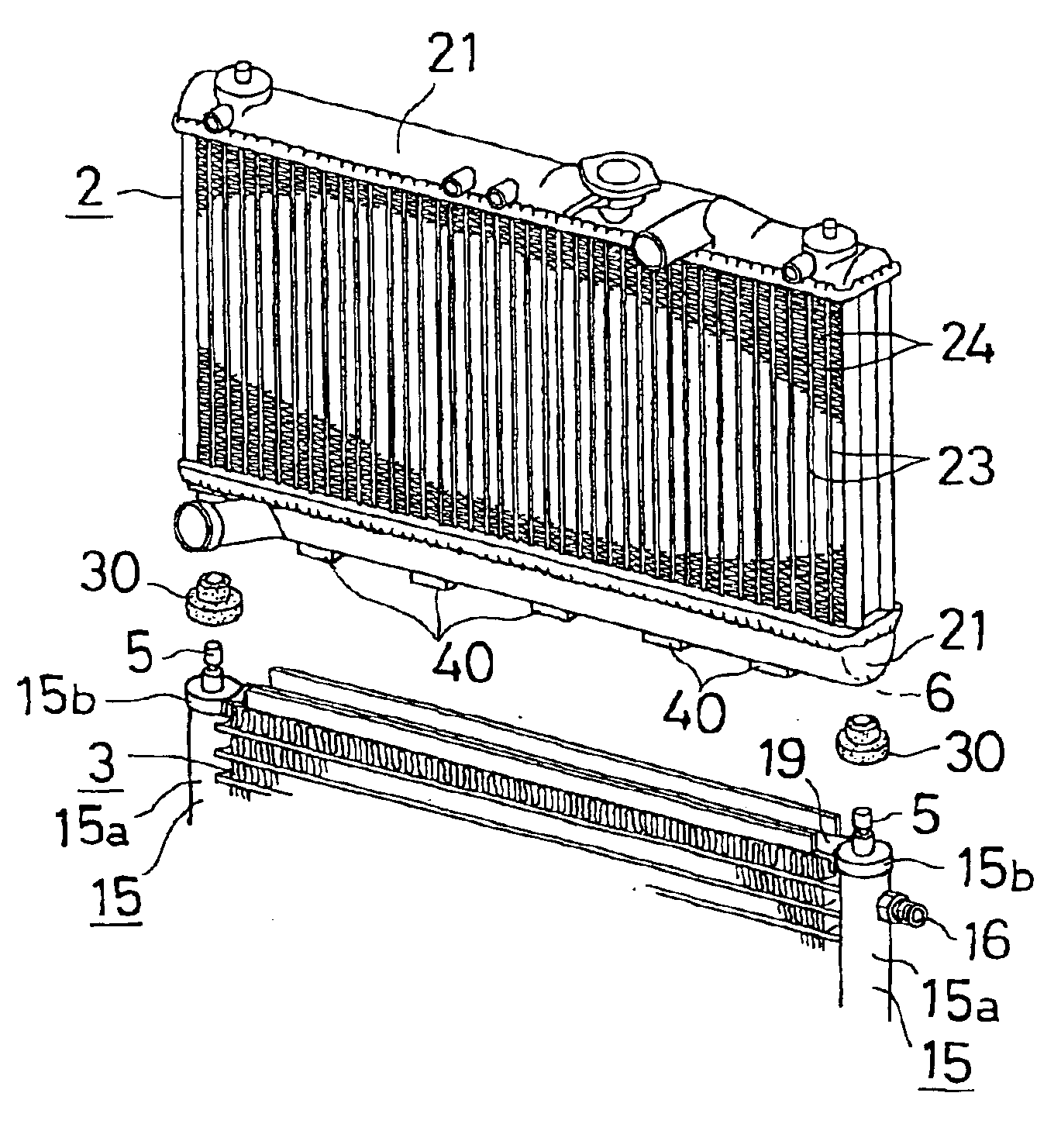

An integrated heat exchanger is constituted by different kinds of heat exchangers such as a radiator for use in engine-cooling systems and a condenser for use in air-conditioning systems which is low in manufacturing cost, small in thickness, easy in maintenance and/or replacement and small in air pressure loss. The heat exchanger includes a first heat exchanger (2) and a second heat exchanger (3). A fitting dented portion (6) is provided at one of a bottom surface of the first heat exchanger (2) and an upper surface of the second heat exchanger (3), and a fitting protruded portion (5) is provided at the other thereof, and wherein the fitting protruded portion (5) is fitted in the fitting dented portion (6), whereby the first heat exchanger (2) is integrally conected to the upper surface of the second heat exchanger (3).
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
