Miniaturizable electromagnetic relay
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 29, 2005
Grant Date -
Mar 3, 2005
app pub date -
Aug 17, 2004
filing date -
Aug 28, 2003
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

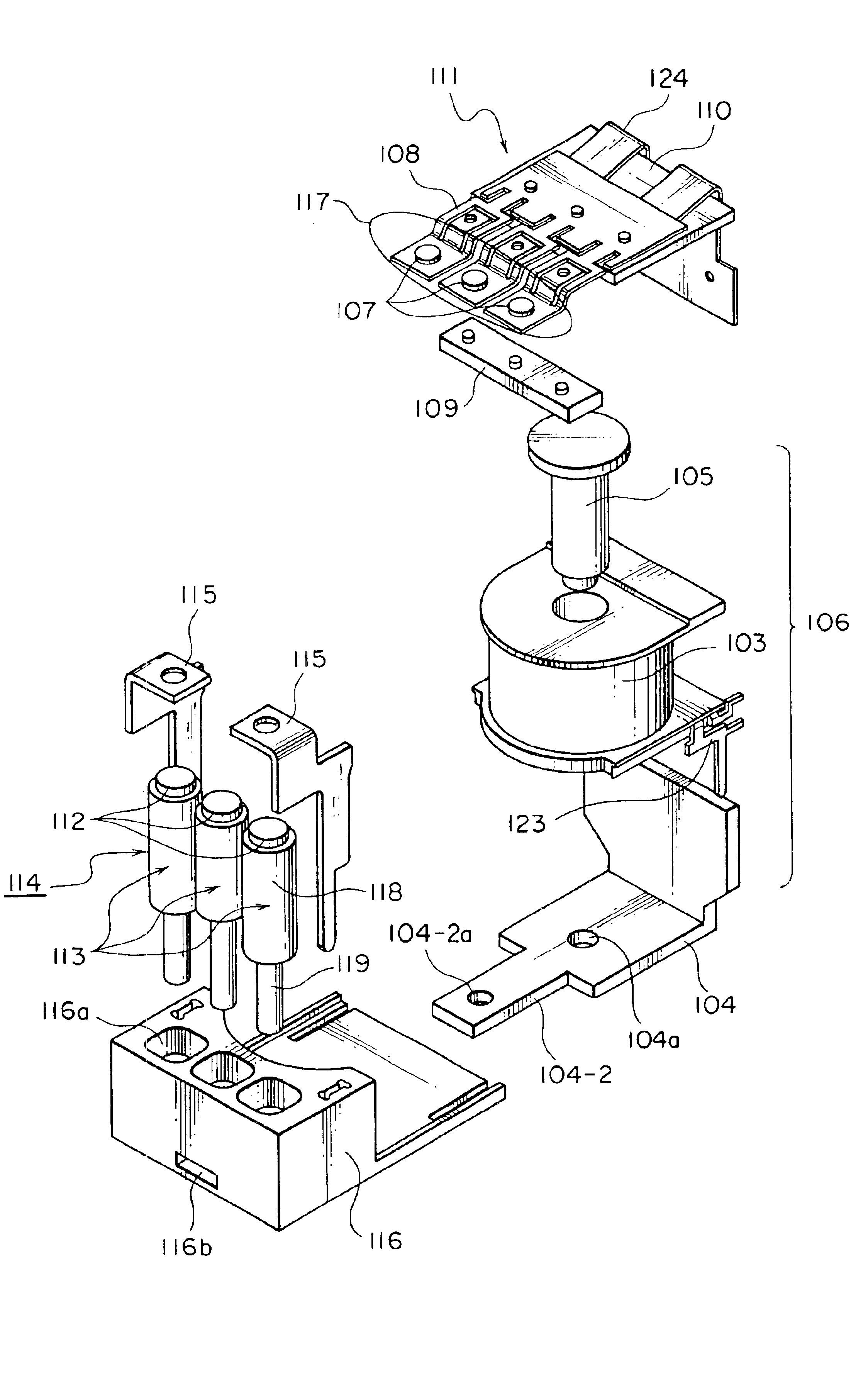

An electromagnetic relay has three fixed contact terminal assemblies arrayed in a row at regular intervals, and a movable contact spring assembly having three movable contacts. An armature is caused to swing by turning on and off an exciting current to a coil assembly so that normally-open contact portions are closed and opened. A movable spring of the movable contact spring assembly is branched into three portions on one end side thereof and a substantially U-shaped slit is formed in each of the branched portions so that spring flexible portions and a current-carrying path portion are separately formed in each branched portion. A current-carrying plate is joined to the three current-carrying path portions so that the three movable contacts are electrically connected together.
