Carburetor with idle fuel supply arrangement
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 29, 2005
Grant Date -
Sep 11, 2003
app pub date -
Mar 7, 2003
filing date -
Mar 8, 2002
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

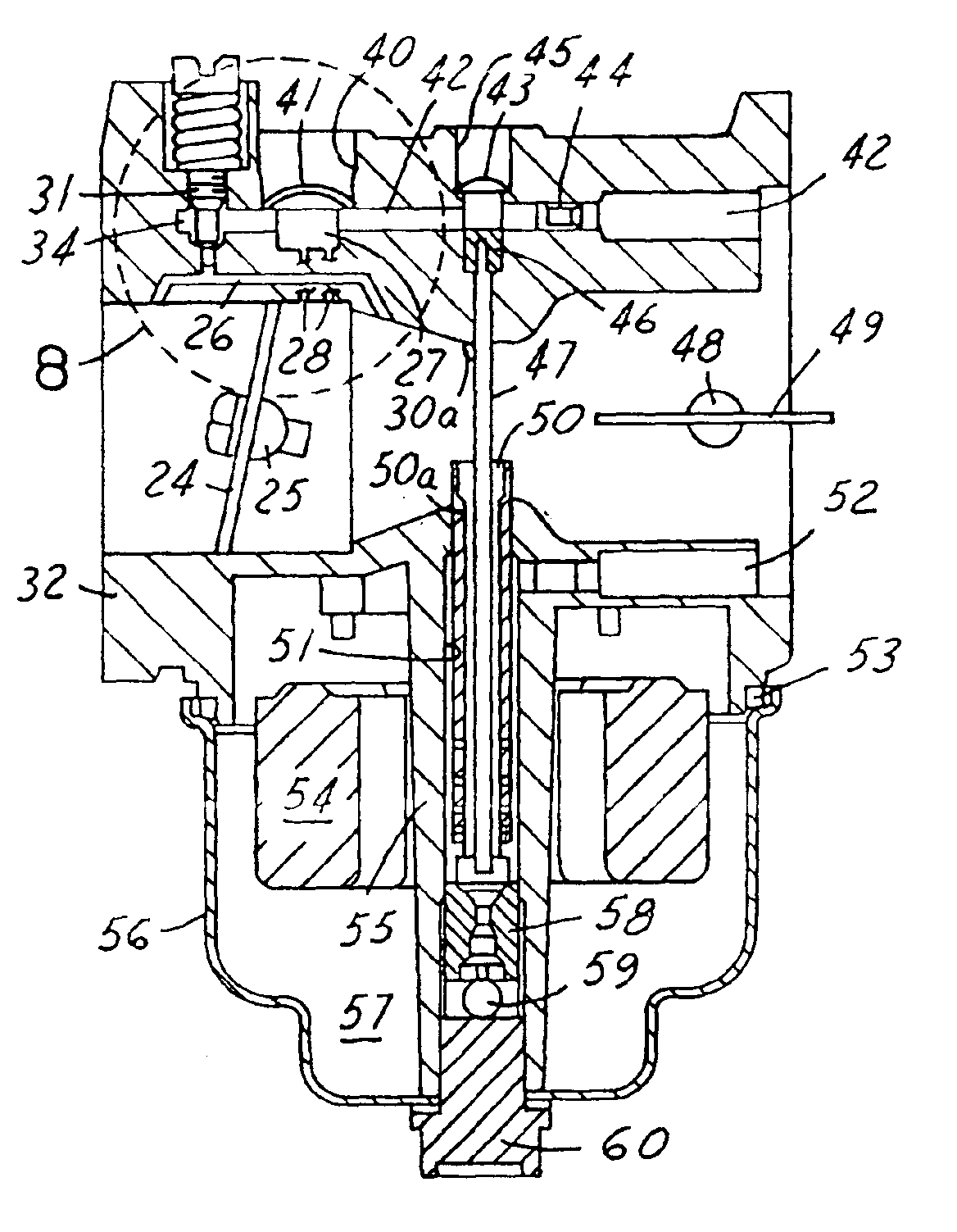

An idle fuel supply device for a carburetor has an idle air passage that communicates with an air intake passage and a fuel chamber. A passage extending from a fuel metering chamber is connected to the fuel chamber preferably via a fuel adjusting needle valve. A low speed fuel nozzle hole communicates the fuel chamber with the air intake passage in the vicinity of a throttle valve when in its idle position. A passage communicates with the fuel chamber and the idle air passage, so that fuel and air may mix in at least a portion of the idle air passage.
First Claim
Other Claims data not available
