Wind deflector arrangement for a motor vehicle roof
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 15, 2005
Grant Date -
Dec 25, 2003
app pub date -
Feb 20, 2003
filing date -
Feb 20, 2002
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

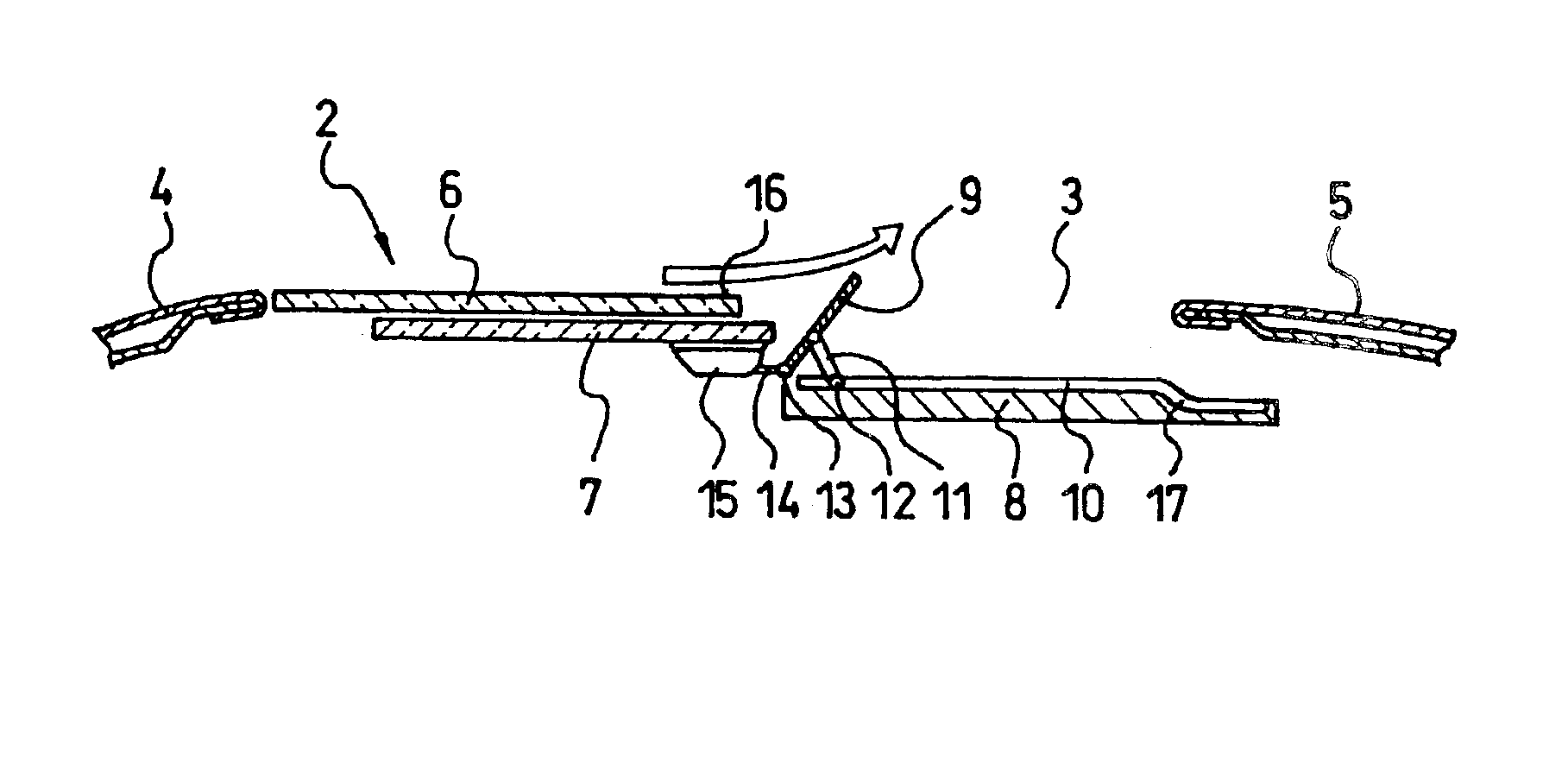

A wind deflector arrangement for a motor vehicle roof (2) with a roof opening (3) which can be selectively closed by at least one movable closure (7) and can be at least partially cleared by moving the closure (7) in a forward direction, has a wind deflector (9) which runs in the transverse direction of the motor vehicle roof, with the closure (7) opened, and which is located at the rear edge (16) of the closure (7) in the active position. In order to devise an improved lowered position, it is provided that the wind deflector (9) has a rest position which is located under the fixed roof part (5) of the motor vehicle roof (2) which borders the rear of the roof opening (3).
First Claim
Other Claims data not available
