Rotating electric switch
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 8, 2005
Grant Date -
Aug 12, 2004
app pub date -
Dec 26, 2003
filing date -
Dec 26, 2002
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

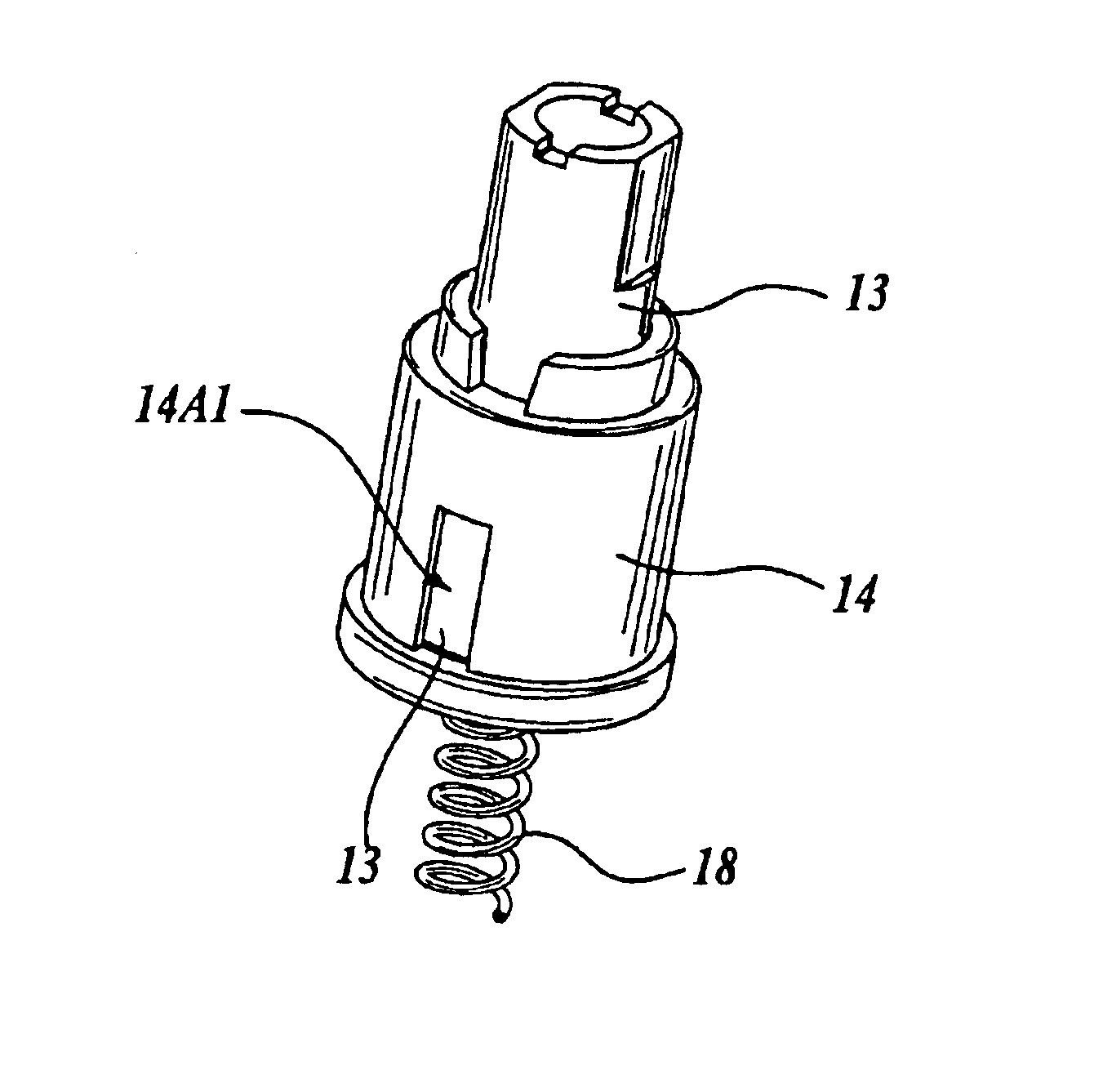

A rotating electric switch includes a shaft with a side hole and a biasing member in the side hole for outwardly biasing an electrically-conductive bullet. The bullet is in electrical communication with a shaft conductor in a bottom hole of the shaft. A liner insulation cap placed over the shaft has a hole in the liner insulation cap sidewall covered by an electrically conductive sleeve. The switch achieves a non-conducting state by rotating the shaft until the head of the bullet is retracted within the sidewall of the liner insulation cap. A conducting state is achieved by rotating the shaft until the bullet extends through the hole in the liner insulation cap sidewall to electrically contact the conductive sleeve. Further embodiments may include an electrically-conductive inner tube in the side hole of the shaft and one or more grooves defined in the interior surface of the liner insulation cap.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
BEIFA GROUP CO LTD | NO 298 JIANGNAN ROAD (EAST) BEILUN NINGBO ZHEJIANG 315801 |
International Classification(s)
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Qiu, Zhiming | Ningbo, CN | 133 | 2731 |
# of filed Patents : 133 Total Citations : 2731 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
Full Text

Legal Events
Date | Code | Event | Description |
---|---|---|---|
Dec 30, 2024 | FEPP | FEE PAYMENT PROCEDURE | free format text: MAINTENANCE FEE REMINDER MAILED (ORIGINAL EVENT CODE: REM.); ENTITY STATUS OF PATENT OWNER: LARGE ENTITY |
Sep 25, 2020 | MAFP | MAINTENANCE FEE PAYMENT | free format text: PAYMENT OF MAINTENANCE FEE, 4TH YEAR, LARGE ENTITY (ORIGINAL EVENT CODE: M1551); ENTITY STATUS OF PATENT OWNER: LARGE ENTITY year of fee payment: 4 |
May 09, 2017 | I | Issuance | |
Apr 19, 2017 | STCF | INFORMATION ON STATUS: PATENT GRANT | free format text: PATENTED CASE |
Jun 30, 2016 | P | Published | |
May 20, 2014 | F | Filing | |
May 20, 2014 | AS | ASSIGNMENT | free format text: ASSIGNMENT OF ASSIGNORS INTEREST;ASSIGNORS:KANTOR, IGOR;SRIVASTAVA, ASHOK N.;PASKO, DOUGLAS M.;AND OTHERS;SIGNING DATES FROM 20140515 TO 20140519;REEL/FRAME:032932/0239 Owner name: VERIZON PATENT AND LICENSING INC., NEW JERSEY |
