Temperature compensation mechanism for a micromechanical ring resonator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 22, 2005
Grant Date -
Mar 4, 2004
app pub date -
Aug 29, 2003
filing date -
Nov 2, 1999
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

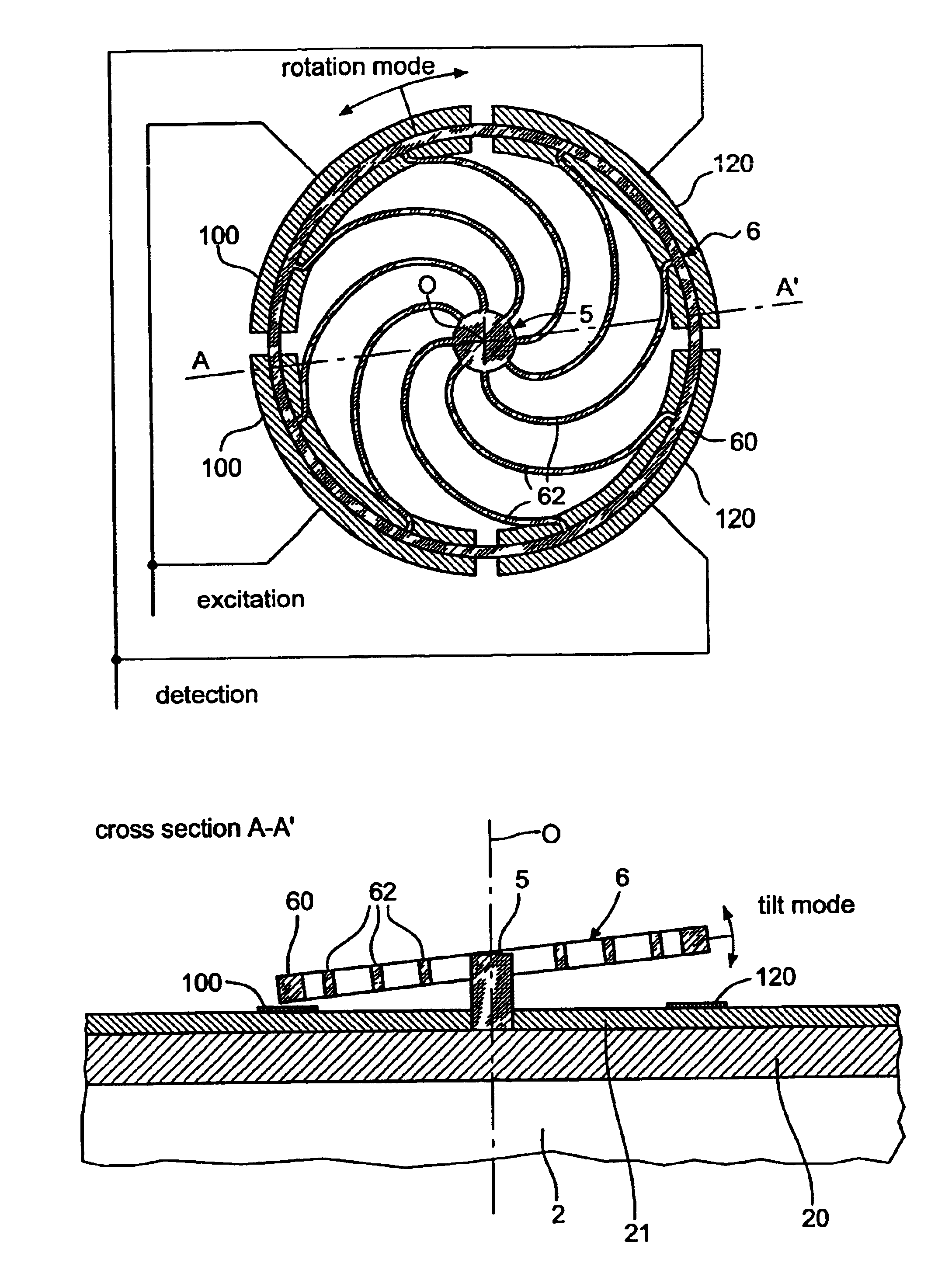

A time base including a resonator (4) and an integrated electronic circuit (3) for driving the resonator into oscillation and for producing, in response to the oscillation, a signal having a determined frequency. The resonator is an integrated micromechanical ring resonator supported above a substrate (2) and adapted to oscillate in a first oscillation mode. The ring resonator includes a free-standing oscillating structure (6). Electrodes (100, 120; 130, 150) are positioned under the free-standing oscillating structure in such a way as to drive and sense a second oscillation mode in a plane substantially perpendicular to the substrate and having a resonant frequency which is different from the resonant frequency of the first oscillation mode, a frequency difference between the resonant frequencies of both oscillation modes being used for compensating for the effect of temperature on the frequency of the signal produced by the time base.
