Adjustable antenna

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 6856293
APP PUB NO 20040233108A1
SERIAL NO

10471189

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

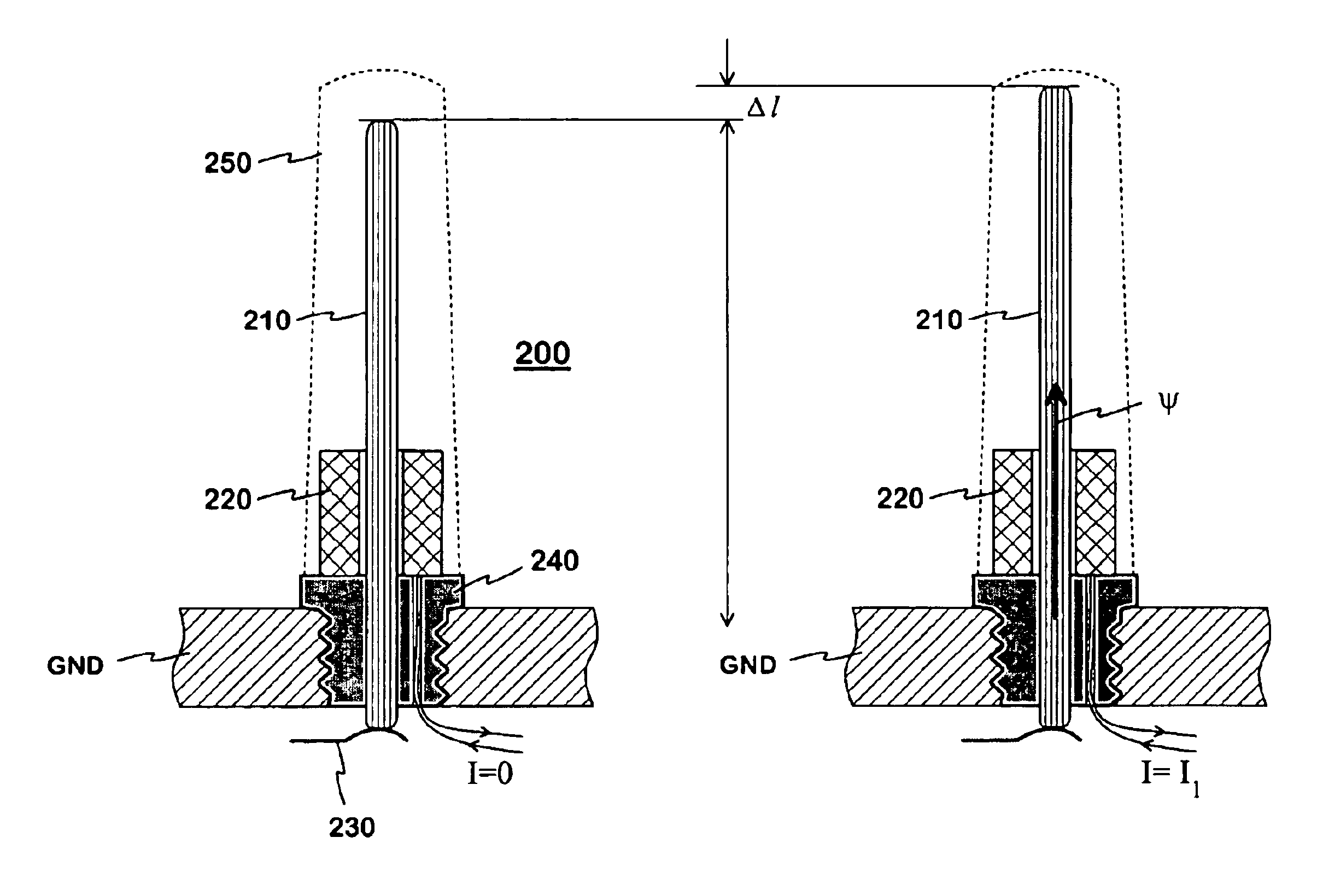

Antenna structure (200) which finds particular utility in mobile stations and the electrical characteristics of which can be electrically modified. The radiating element (210) of the antenna or a part thereof is manufactured from a strongly magnetostrictive material. The antenna is equipped with at least one electromagnet (220) by means of which a magnetic field (.psi.) can be generated into the magnetostrictive material. This causes the radiating element to grow (.DELTA.l) in a certain direction, whereby the resonance frequency of the antenna will decrease. The antenna can be electrically adjusted without adding any component in the antenna itself, thereby making the adjustment reliable.

First Claim

See full text

Other Claims data not available

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
PULSE FINLAND OY90460 OULUNSALO

International Classification(s)

loading....
  • 2003 Application Filing Year
  • H01Q Class
  • 1138 Applications Filed
  • 498 Patents Issued To-Date
  • 43.77 % Issued To-Date
Click to zoom InYear of Issuance% of Matters IssuedCumulative IssuancesYearly Issuances2003200420052006200720082009201020112012201320140255075100

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Bordi, Mika Espoo, FI 4 164

Cited Art Landscape

Load Citation

Patent Citation Ranking

  • 35 Citation Count
  • H01Q Class
  • 85.71 % this patent is cited more than
  • 20 Age
Citation count rangeNumber of patents cited in rangeNumber of patents cited in various citation count ranges113365291747421301 - 1011 - 2021 - 3031 - 4041 - 5051 - 6061 - 7071 - 8081 - 90100 +0102030405060708090100110120130140

Forward Cite Landscape

Load Citation
