Method and system for calibration of a phase-based sensing system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 15, 2005
Grant Date -
Oct 7, 2004
app pub date -
Nov 18, 2003
filing date -
Nov 19, 2002
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

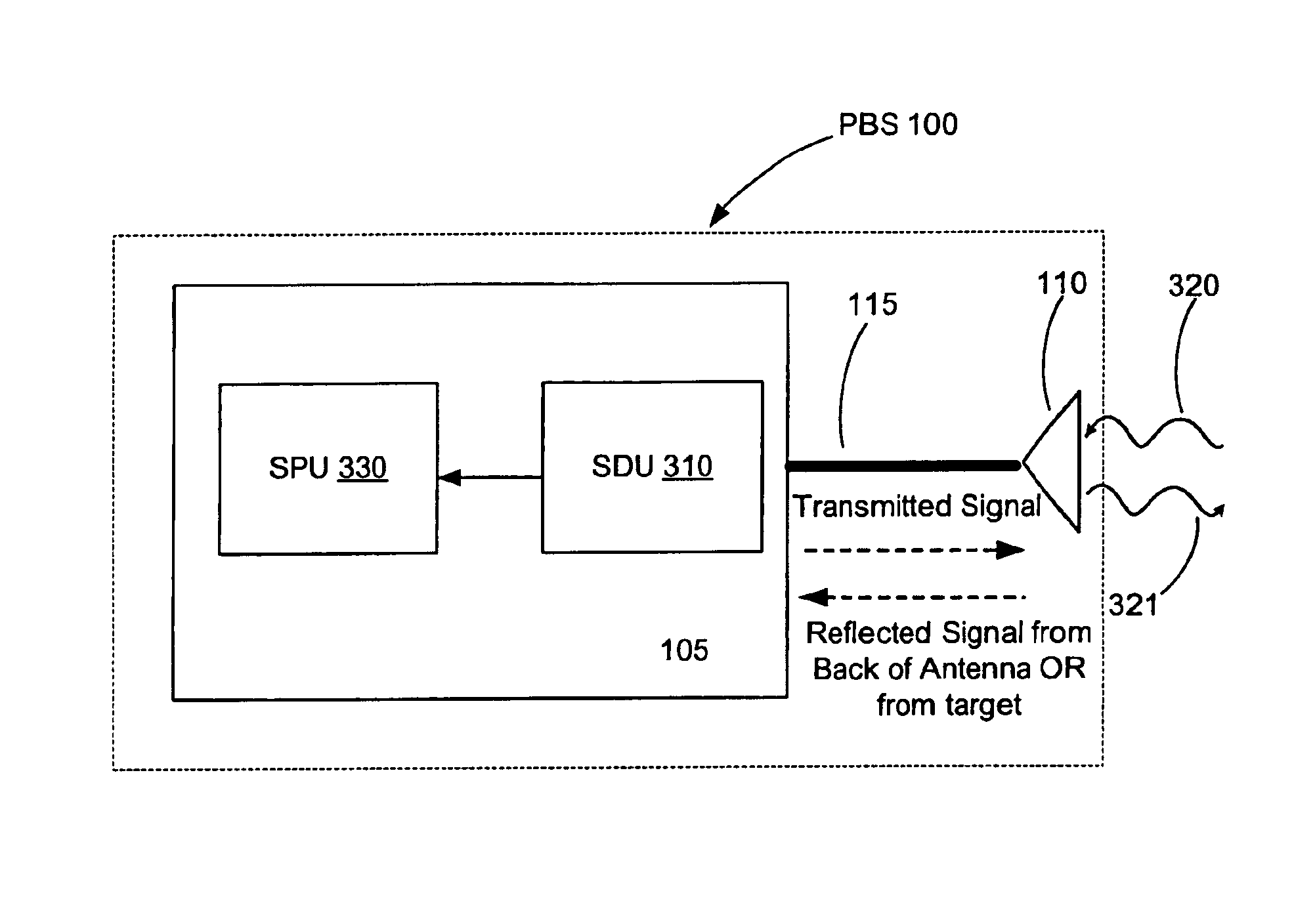

Calibrating the measurement of a distance between a transceiver and an object such as a radiating element (antenna) or a target by continuously changing the wavelength (frequency) of the transmitted wave and observing the rate of phase shift as a function of change in wavelength. The rate of phase shift change as a function of wavelength can be mathematically related to the total displacement to the reflecting object. This calibration technique is applicable to a sensing device comprising a transceiver configured to transmit a signal toward an object, detectors offset in phase to receive the transmitted signal and a reflected signal, and a processor configured with logic to measure a rate of phase shift proportional to the change in wavelength between the transmitted signal and the reflected signal at the detectors. The processor can be further configured with logic to relate the phase shift to displacement between the transceiver and the reflecting object.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 19 Citation Count
- G01S Class
- 53.30 % this patent is cited more than
- 20 Age
