Garment with self-opening vent or pocket
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 1, 2005
Grant Date -
Nov 18, 2004
app pub date -
May 6, 2004
filing date -
Sep 26, 2001
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

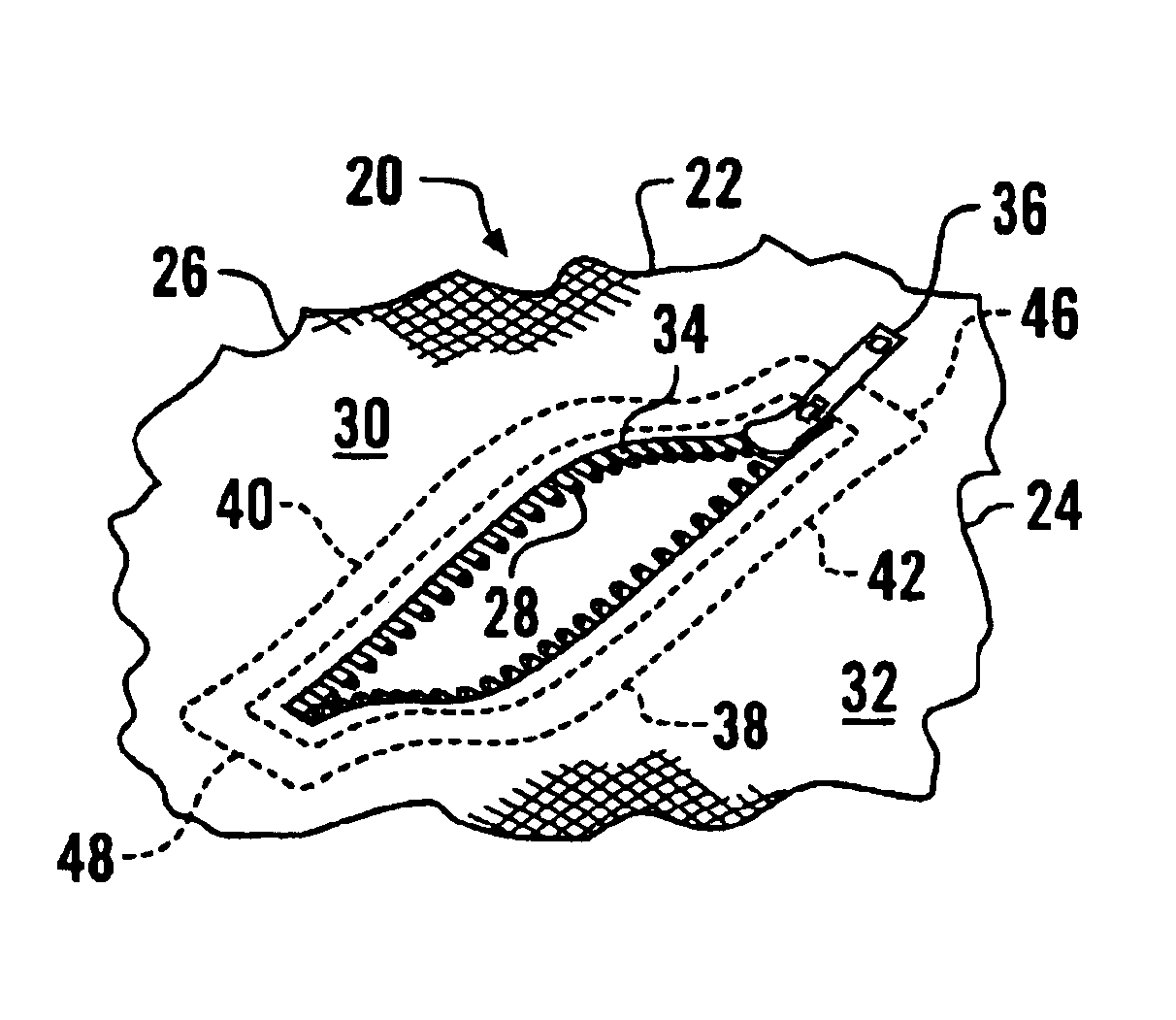

A garment with a flexible fabric shell has a pocket or vent opening with a resealable closure such as a zipper, snaps, or hook and loop fasteners, which is operable between a closed position, in which the opening in the shell is closed, and an open position, in which the opening in the shell is revealed. A resilient spring member of springy plastic, composite, metal or other material is mounted to the fabric around the opening, and has two arms which have portions which are displaced vertically from one another when the closure is open, but which are resiliently compressed into a common plane when the closure is sealed. Each time the closure is opened, the spring member urges portions of the shell on either side of the flap apart, to thereby enlarge the area of the opening and permit access or air flow therethrough.
First Claim
Other Claims data not available
