Load bearing fabric attachment and associated method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 18, 2005
Grant Date -
Aug 8, 2002
app pub date -
Jan 25, 2001
filing date -
Jan 25, 2001
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

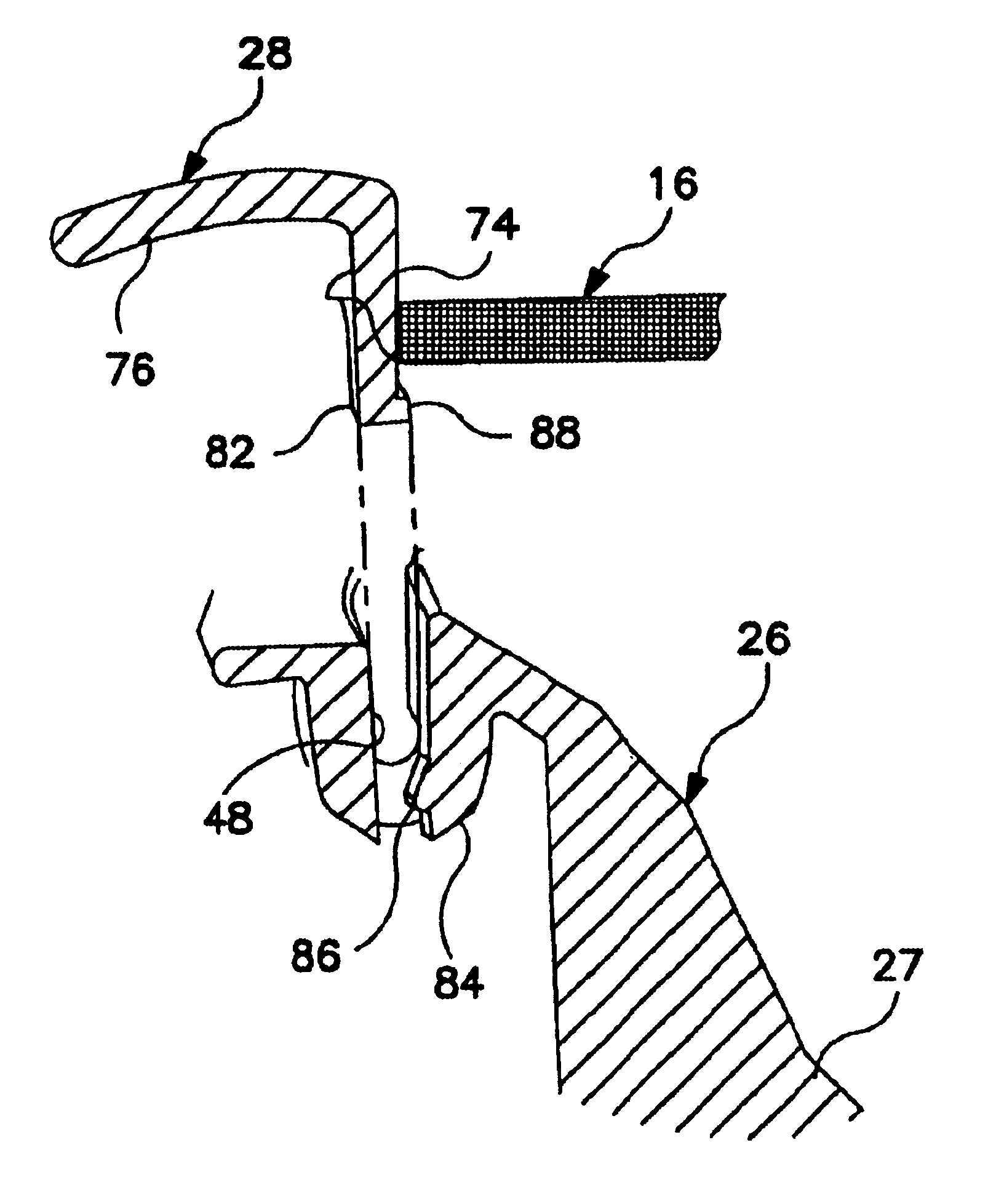

An attachment structure for a load bearing fabric. The attachment structure includes interfitted inner and outer rings. The outer ring includes a fabric leg 74 carrying a load bearing fabric. The inner ring defines a channel receiving the fabric leg 74. The inner ring and outer ring are configured to stretch the fabric upon insertion of the fabric leg 74 into the channel. The present invention also provides a method for securing a load bearing fabric to a support structure, generally including the steps of (a) providing an outer ring having fabric leg 74, (b) attaching a section of load bearing fabric to the fabric leg 74, (c) providing an inner ring having a channel adapted to receive the leg of the outer ring and (d) installing the outer ring to the inner ring by inserting the leg into the channel, the insertion forcing the fabric down into the channel and stretching the fabric to the desired tension.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 22 Citation Count
- B23P Class
- 89.10 % this patent is cited more than
- 20 Age
