Panel branch for an artificial tree
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 11, 2005
Grant Date -
Oct 28, 2004
app pub date -
Apr 22, 2003
filing date -
Apr 22, 2003
priority date (Note) -
Expired
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

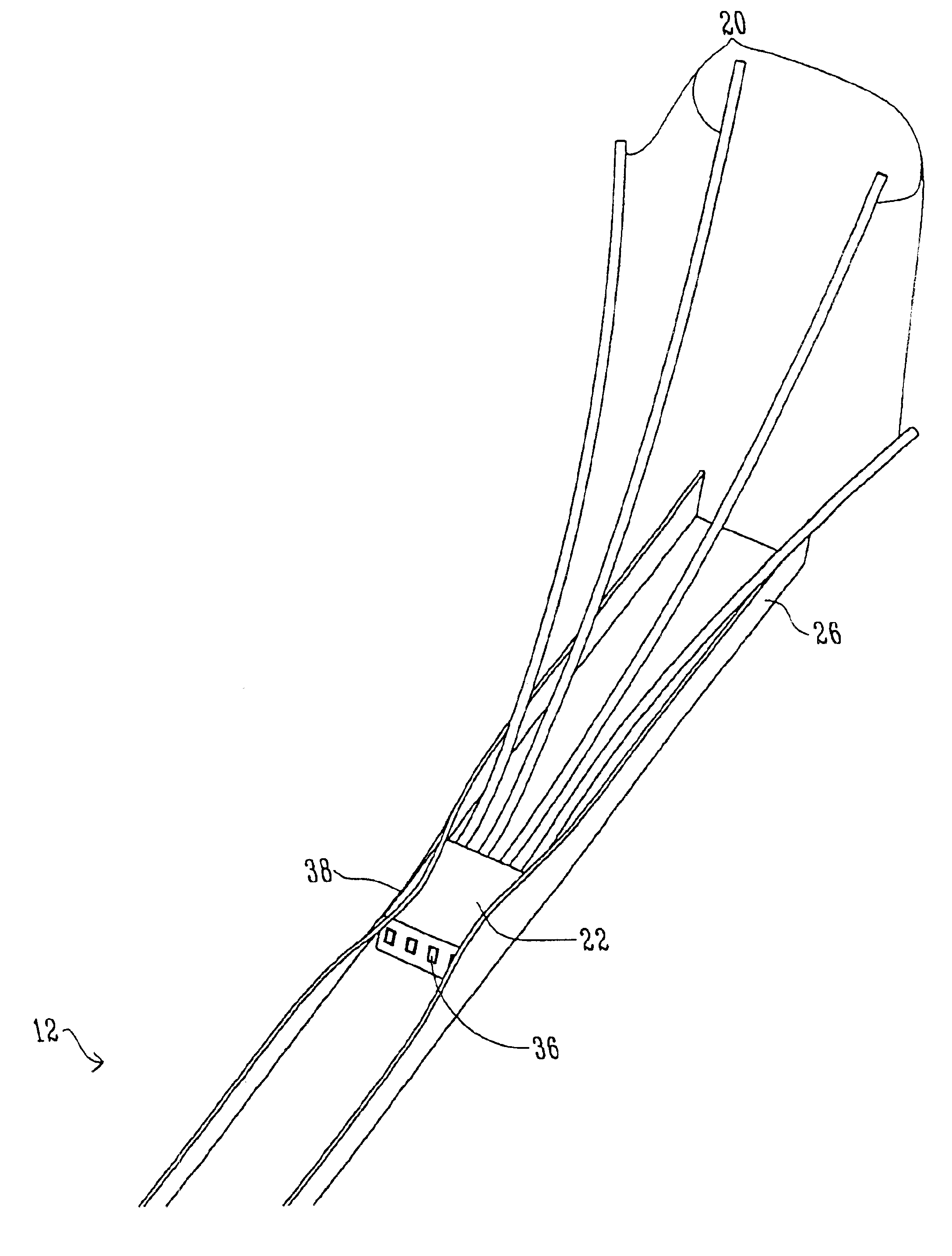

The panel branch disclosed is used with an artificial tree. The panel branch includes a plurality of twigs, a channel element, a number of inserts, and a hook-like member. Each twig is inserted through an aperture in the insert and the insert, in turn, is placed in and secured in the channel element. The hook-like member has a short side used to secure the branch to an artificial trunk and a long side secured in the channel element. Optical fibres are associated with the twigs of the panel branch. Each optical fiber is threaded through an aperture in an insert and gathered into a bundle. A socket with a light source is provided to receive the bundle of optical fibres such that the branch is lighted.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 22 Citation Count
- F21V Class
- 68.10 % this patent is cited more than
- 20 Age
