Solder application technique
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 11, 2005
Issued Date -
N/A
app pub date -
Apr 21, 2003
filing date -
May 12, 2000
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

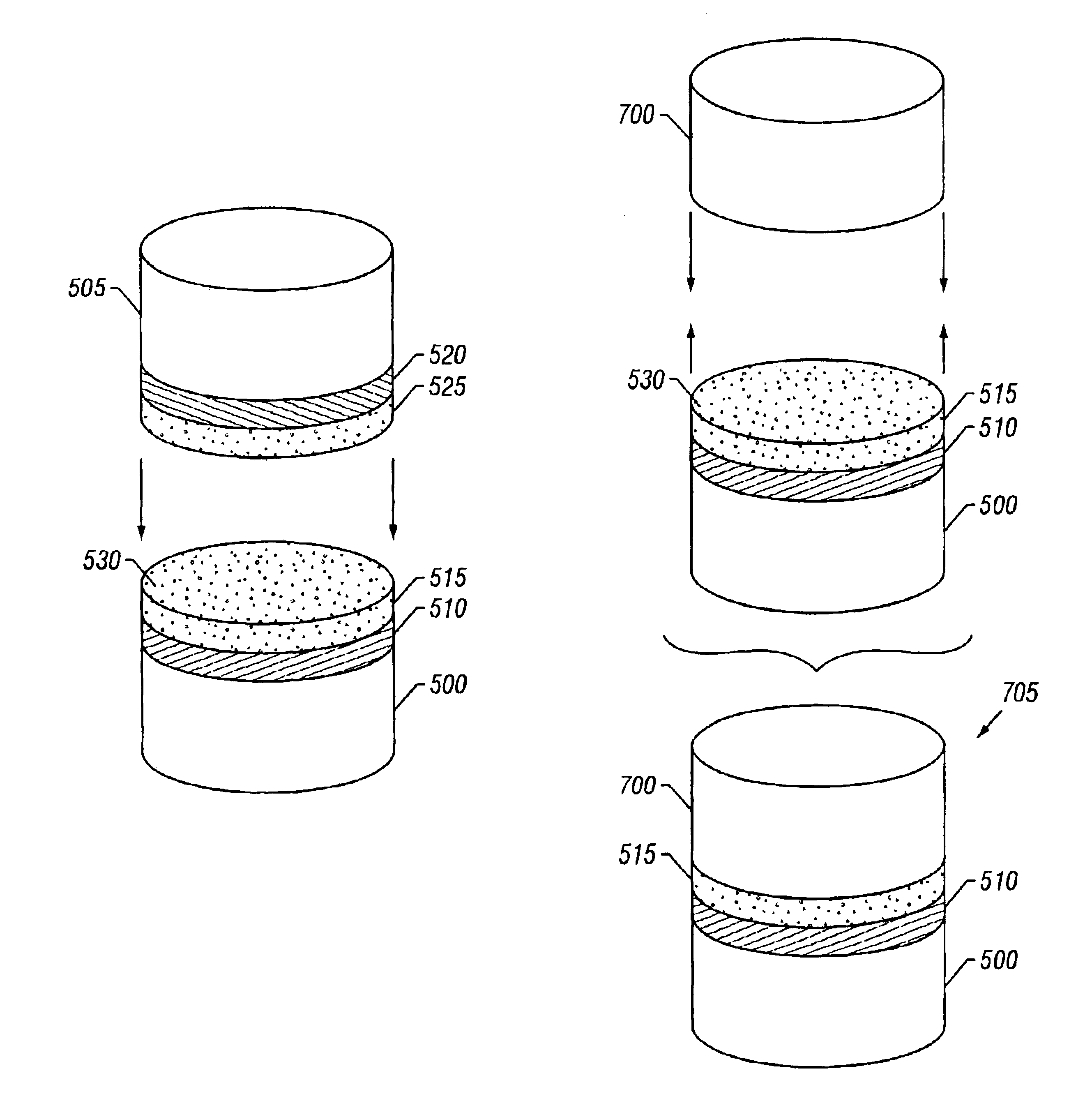

A method of joining an end face of a first electric component to an end face of a second electric component includes applying a first metal layer to the end face of the first electric component to form a first metallized layer and applying a second metal layer to the end face of the second electric component to form a second metallized layer. A first fusible alloy layer is applied to the first metallized layer by melting a fusible alloy and propelling the melted fusible alloy onto the first metallized layer, and a second fusible alloy layer is applied to the second metallized layer by melting a fusible alloy and propelling the melted fusible alloy to the second metallized layer. The method further includes contacting the first fusible alloy layer to the second fusible alloy layer. Next, the end faces and fusible alloy layers are heated to melt the fusible alloy layers. After heating, the end faces and fusible alloy layers are cooled to form a bond between the end faces.
First Claim
Other Claims data not available
